FiiO M7 Touch Screen Hi-Res Bluetooth 4.2 aptX/aptX-HD LDAC & DSD DAP SILVER

Secure One-Page Checkout


FiiO Authorised
FiiO M7 Low Stock : Order Soon 269.99
EAN : 6953175760337 5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back

Order Now : Ships Mon
Standard Canada-Wide Free Shipping FREE

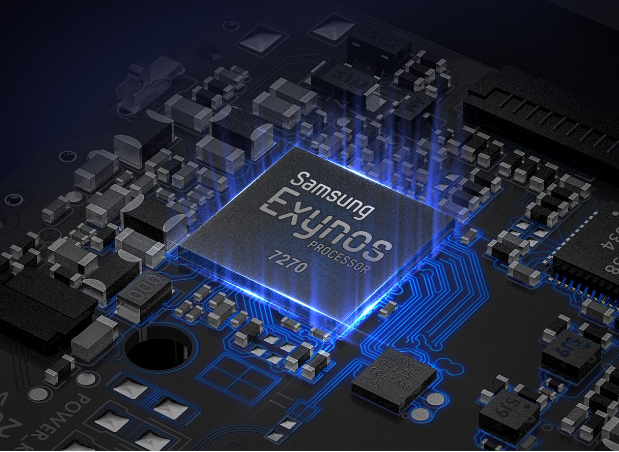

A Fully Modern Technological Core

The M7 is Fii0's first player to use Samsung's Exynos 7270 SoC (system on chip), made on the l4mm FinFET process. Compared to being made on the older 28mm process, the Exynos 7270's two ARM Cortex A53 cores use 20% less power for greater power efficiency and better battery life. The Exynos 7270 is also made with Samsung's groundbreaking SiP-ePoP packaging technology -this allows the storage, power management, and memory chips to be all crammed with the ARV cores into a single tiny package 40% smaller than if the chips were packaged separately such as in existing technologies. This extra space allows for better cooling, and most importantly, a bigger battery to greatly improve play time.

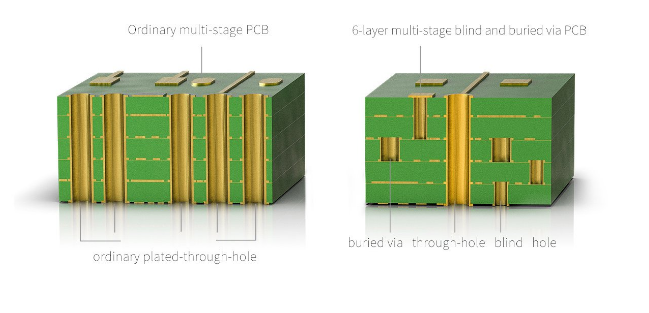

State-of-the-art 5-layer Mufti-stage Blinc And Buried Via PCB Technology

Because of the Exynos 7270's SiP-ePoP packaging technology, integrating it with the rest of the M7's printed circuit board (PCB) was a challenge but also allowed us to explore and implement new technologies. Thus, the M7 is the first digital audio player to contain a 6-layer multi-stage H DI (high density interconnect) PCB, the same kind that is used in the latest smartphones. Being only 0.8mm thick, this allowed us to cram much more functionality into the body of the M7. Furthermore, we also employ blind and buried vias on the PCB, which allows the different components to work more closely in harmony as well as make the power supply section much more robust, guaranteeing superior first-rate sound quality.

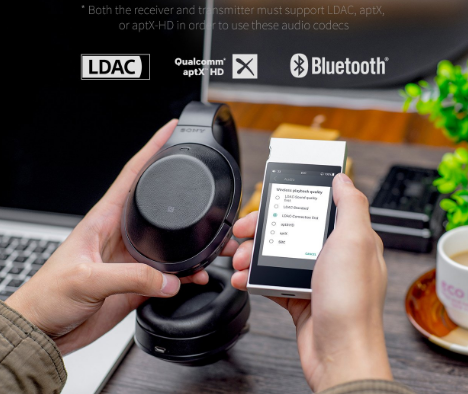

The Next Step in Audio: High Fidelity Wireless:

The M7 unilizes a Samsung Bluetooth 4.2 chip that supports the aptx-HD coec, allowing you to enjoy your music in high fidelity without the hassle of wires. In additiion, the M7 also support Son'ys LDAC wireless audio codec, which compared to ordinary bluetooth audio transmits 3x the data for an unparalleled, truly high - resolution audio experience.

  • Both the receiver and transmitter must support LDAC, aptx or aptx-HD in order to use these audio codecs

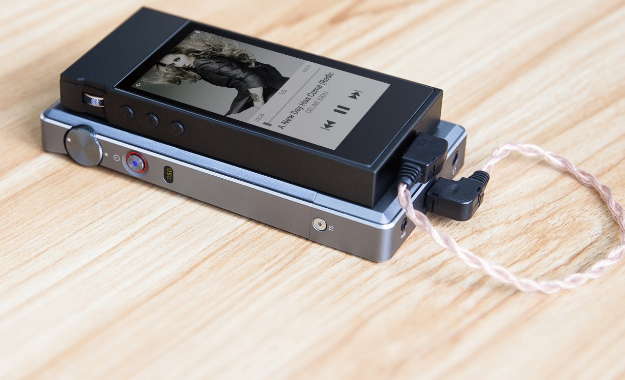

Want to rock out even more? How about some USB audio out?

To give you even more ways to jam out to your music, FiiO's software team toiled through countless days and nights to bring you USB output (including DSD128 support). With this, you can have the M7 act as a digital transport connected to an external device for digital-to-analog decoding. We recommend pairing the FiiO Q5 with the M7 either through USB or through Bluetooth for an excellent sound experience.

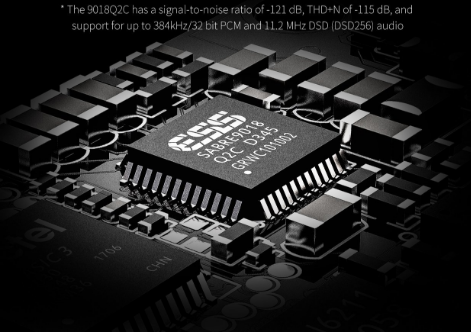

ESS Sabre 9018 Chip for Unsurpassed Sound Quality

Within the core of the M7 lies the Sabre 9018Q2C chip by ESS, an SoC that neatly combines a high-performance DAC and headphone amplifier into one tiny package. What separates this ESS chip from other commonly used combo audio chips are: (1) the 9018Q2C has two independent power supplies, one each for the digital and analog sections (2) the internal headphone amplifier has its own independent dual power supply and (3) adjustable LPF (low-pass filter), which provides developers with more flexibility to make the product sound exactly the way they want. All in all, the 9018Q2C saves space on the PCB, reduces power consumption compared to competing solutions, and all while delivering up to 49mW of output power at a THD+N of -100 d3. * The 9018Q2C has a signal-to-noise ratio of -121 d3, THD+N of -115 dB, and support for up to 384kHz/32 bit PCM and 11.2 MHz DSD (DSD256) audio.

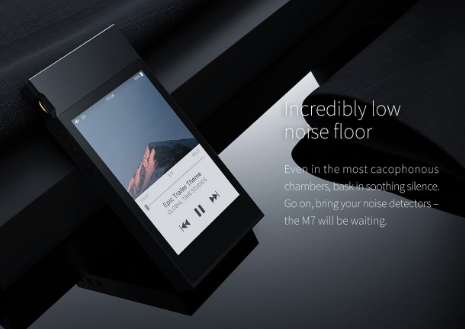

Incredibly Low Noise Floor:

Even in the most cacophonous chambers, bask in soothing silence. Go on, bring your noise detectors-the M7 will be waiting.

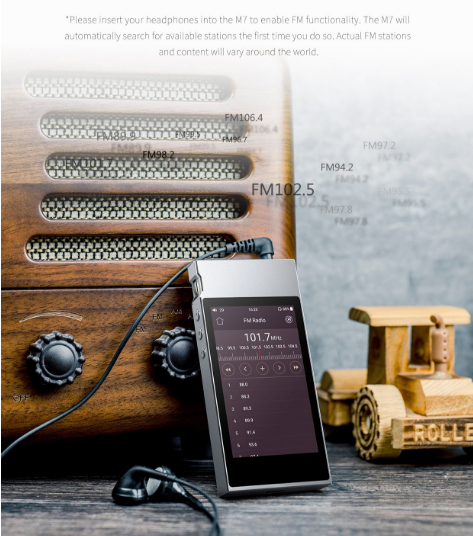

Discover a whole new world of FM Radio

Within the M7 lies a whole another world of FM radio! Unlike many other comparable players, the M7 contains a dedicated FM chip, the Si4705. This is a specialized DSP with excellent FM reception and is not very prone to interference that outputs a digital signal directly to the ESS 9018Q2C. In order to further boost radio signal reception strength, the FM chip uses your headphones as an antenna. FM frequencies covered is the broad range of 76MHz - 108MHz, which is essentially all of the possible spectrums used around the world.

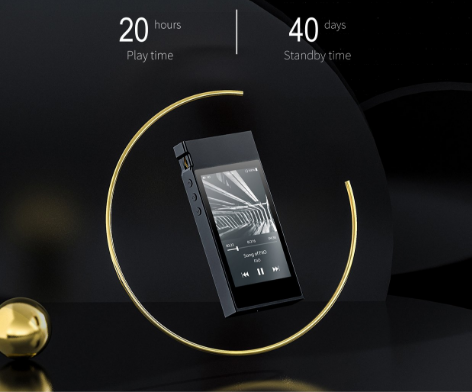

Why Worry About Charging with 40 days of standby time?

Lying within the V7 is a 1180mAh battery that, thanks to the Exynos 7270's advance 14mm fabrication process, allows the device to have a play time of 20 hours or more or a standby time up to a whopping 40 days! In standby mode, you can instantly wake up the device so you can enjoy your music immediately whenever you want while still saving tons of power.

Full touch screen operation in such an affordable device?

The M7 employs a 3.2-inch 480 x 800 display with image zooming support. When combined with dedicated play/pause and skip buttons as well as a real volume wheel, every action you want to do is just either a simple press or swipe away. The V7 also uses an innovative gesture system to get around different menus - simply swipe from different parts of the bottom of the screen to go back and to return home.

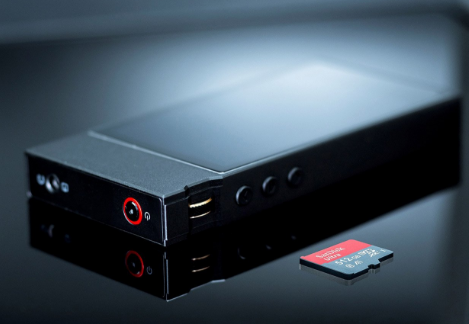

More Storage in a time of more listening:

Some may say that only having 2G3 of built-in storage doesn't make sense, and that a company shouldn't even bother giving users such a paltry amount of storage. We at FiiO thought otherwise - even only 2GB of storage may be useful to people who only store a small amount of music and don't bother with micro SD cards or who just want as much space as they can get for their music. So we worked tirelessly to ensure that users had access to this 2G3 without affecting system fluidity or stability. Of course, if you want access to your huge library you can do that too - the M7 supports up to a single 512GB micro SD card for storage expansion.

Small form for easy fitting:

The M17 is tiny to be sure but is a well-tho out and satisfyingly complete package. The new M7 is the successor to the much-loved M3, designed to cater to the needs custom rs. We at FiiO spent a lot of time investigating what users actually wanted from their digital audio player and finally came up with an exterior design that we think you will fall in love with. Try resisting that sexy fully aluminum body and glass front!

No Sweat with Decoding:

The M7 supports up to 192khz/24 PCM audio. As for audio file formats, among the supported are APE/WAV/WMA/OGG/AAC.MP3 as well as numerous others. Just put your music file into the M7 and play it!

Smooth Slick Operator:

With the M7, we have developed a new operating system that capitalizes on the Exynos 7270's strengths for a smooth, slick experience that's sure to satisfy even the more demanding users!

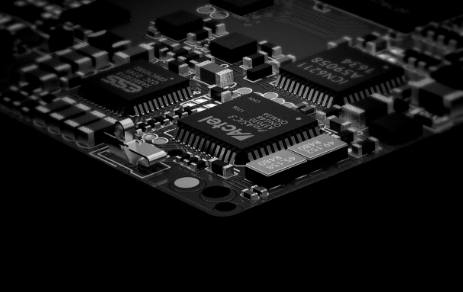

Can't faze this FPGA!

The M7 contains a specially-designed FPZA that adeptly handles the digital audio signals coming out of the Exynos 7270 SoC to the ESS 9018Q2C. Thanks to this FPGA, the M7 can support native DSD, up to DSD64 in DFF or DSF. And finally, the FGPA is also linked to the two crystal oscillators, so that music of any sampling rate is faithfully and accurately played back.

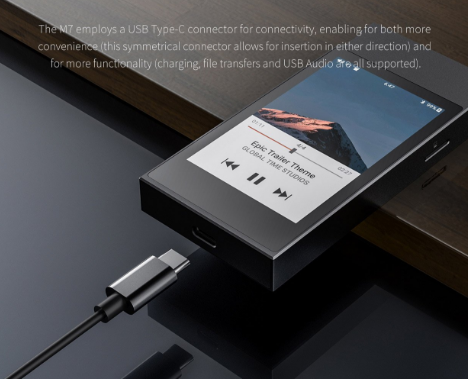

Getting Modern with USB Type-C

The M7 employs a USB Type-C connector for connectivity, enabling for both more convenience (this symmetrical connector allows for insertion in either direction) and for more functionality (charging, file transfers, and USB audio are all supported).

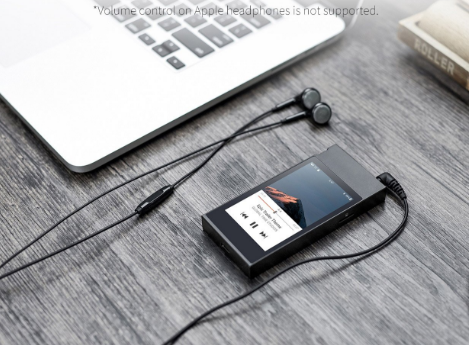

Handling Signals Coming in or Out Like A Pro

The M7's standard 3.5 headphones out on the market use-such as the Fiio F1, F3, F5, FH1, F9 and F9 pr, which are all fully supported by the M7. And for even further convenience the M7 also has a line-out function, which allows you to hook your device up to external amplifiers whenever you need.

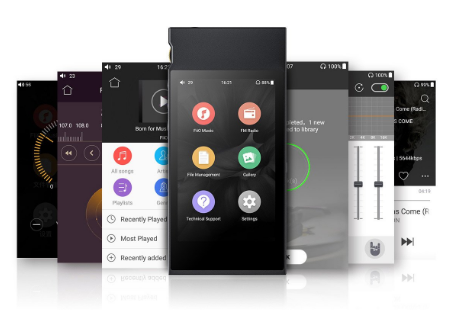

Masterfully Crafting Your Experience:

With the M7, Fiio's designers went back to the drawing board to create a UI that not only oozes with style but also doesn't sacrifice usability in the process. The six icons of the main interface allow easy access to all you might and support covers, lyrics and tagsGetting Modern witWith the M7, Fiio's designers went back to the drawing board to create a UI that not only oozes with style but also doesn't sacrifice usability in the process. The six icons of the main interface allow easy access to all you might and supports covers, lyrics, and tags.h USB Type-C.

Be a pal and Reming Me?

You can quickly get an idea of how much juice the M7 still has left with its very conspicuous battery meter. You can also set the M7 to gently remind you when your battery has low charge left and even set it to automatically shut down below a certain threshold. And with a system clock function and future firmware upgrades through micro SD cards, it's easy to be totally in control.

All You Need to care for Your Treasured Goods:

Accessories to both protect and enhance M7's usability include high-quality custom Type-C USB cable, TPU water-resistant case, high-visibility tempered glass screen protector, and PU leather case. We at Fiio would like to make sure that everybody continues to rock out to great music and with fun products.

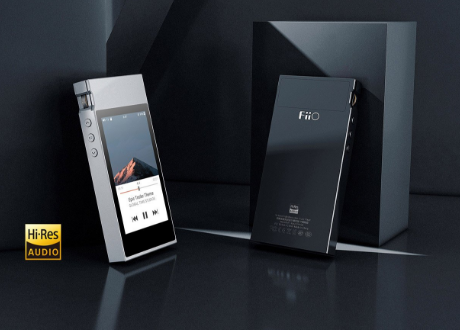

Hi-Res Audio Certification:

The M7 has been certified by the well-respected Japan Audio Association to be truly capable of "Hi-Res Audio", so you know you are getting great music on the go.

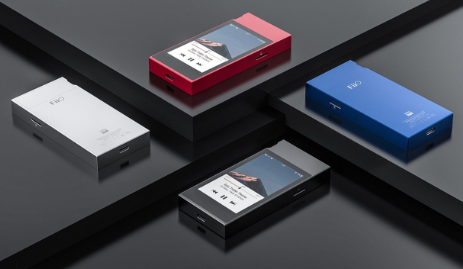

Get Snazzy with Some Explosive Colors:

With four vibrant colors to choose from - black, silver, red, and blue - make yourself known and jazz out with the M7!


Main Unit:

  • CPU model: Exynos 7270 14nm
  • CPU operating frequency: 1.4GHz
  • Keyboard: Virtual QWERTY keyboard
  • Special features: LDAC, FM radio, clock, gestures operation
  • Chips used: SoC: Samsung Exynos 7270 , DAC: ES9018Q2C, FM chip: Si4705, Bluetooth chip: SAMSUNG S5N5C10B01-6330
  • Operating System: Deeply customized Android
  • No. of cores: 4
  • DAC: ES9018Q2C
  • Input method: Touchscreen
  • User interface: Deeply customized /FiiO Music


  • WiFi: N/A
  • USB: TYPE C USB2.0
  • Bluetooth: Bluetooth V4.2, aptX/aptX-HD supported
  • LDAC: Supported

Display Screen:

  • Display size: 3.2 inches
  • Display type: TFT
  • Resolution: 480x800
  • Touchscreen: Yes
  • Number of colours: 0.26 million colors
  • Viewable angle: Full-view
  • Pixel density: 292 ppi


  • RAM: 768MB
  • Storage expansion type: Micro SD card
  • Maximum storage expansion: 512GB (only one micro SD card slot)
  • Total ROM: 4GB
  • ROM available to user: 2GB

Buttons and Ports:

  • Buttons: Side buttons + side volume wheel+ touchscreen
  • Buttons Side: buttons + side volume wheel+ touchscreen
  • Line out: 3.5mm standard headphone output jack (shared PO/LO)
  • Digital Coaxial/Optical out: N/A
  • Custom Key Mapping: N/A
  • Balanced output: N/A
  • USB connection: TYPE C USB2.0(charging / data transfer)


  • Color: Black/Silver (with more colors available in the future)
  • Weight: About 116 g
  • Recommended headphone impedance: 16~100 Ω
  • Treble boost: N/A
  • Balance control: ±5 dB
  • USB DAC: N/A
  • Dimensions: 52mmx109mmx13mm
  • Volume control: 60 steps digital potentiometer
  • Equalizer: 10-band EQ (±6dB), 9 presets+custom preset
  • Bass boost: N/A
  • Gain control: N/A


  • USB power adapter: DC 5V/2A recommended
  • Charging indication: Red light indicates, blue light turns on after fully charged
  • Battery indication: Yes (accurate battery % readings)
  • Battery: Internal 1880mAh Li-polymer battery
  • Charging time: < 2.5 h(DC5V/2A)

3.5mm headphone output: ≥20 h:

  • Volume: 15
  • Load: M3 open earbuds (27 Ω)
  • EQ: OFF
  • Screen: OFF
  • Test File: MP3 44.1kHz/16bit:

Bluetooth output: >26 h:

  • Volume: 60
  • Load: 32Ω
  • Test File: MP3 44.1kHz/16bit
  • Screen: OFF


  • Firmware Upgrade: Supported via zip file placed in
    • internal storage or micro SD card
  • Clock: Supported

FM Index:

  • Output power: >20mW(76MHz), >30mW(108MHz)
  • THD+N: < 0.3%(76MHz), < 0.1%(108MHz)
  • Covered region: 76- 108MHz
  • SNR: >50dBA(76MHz), >70dBA(108MHz)
  • Frequency response: 20Hz~4KHz(-3dB)

Line Output:

  • THD+N: < 0.004% (1 kHz/10kΩ)
  • SNR: ≥117dB (A-weighted)
  • Frequency response: 20Hz~90 kHz(-3dB)
  • Noise floor: < 3 uV
  • Channel separation: ≥100dB (1 kHz)
  • Line level: >1.2Vrms (10 kΩ/1 kHz)

Headphone Out: (5mm headphone out jack)

  • Output power 1: ≥70mW(16Ω / THD+N< 1%)
  • Output impedance: < 2 Ω(32Ω loaded)
  • Output power 2: ≥40mW(32Ω /THD+N< 1%)
  • THD+N: < 0.004%
  • Frequency response: 10Hz~90 kHz(-3dB)
  • Peak output voltage: 3.35 Vp-p
  • SNR: ≥117dB (A-weighted)
  • Noise floor: < 3 uV

File Format Support:

  • Lossless: DSD: DSD64(".dsf",".dff")
    • APE - FAST: 192kHz/24bit(MAX.)
    • Apple Lossless: 192kHz/24bit(MAX.)
    • AIFF: 192kHz/24bit(MAX.)
    • FLAC: 192kHz/24bit(MAX.)
    • WAV: 192kHz/24bit(MAX.)
    • WMA LOSSLESS: 96kHz/24bit(MAX.)
  • Lossy Compression: AAC, MP3, WMA, OGG
