Next Level Home Theater

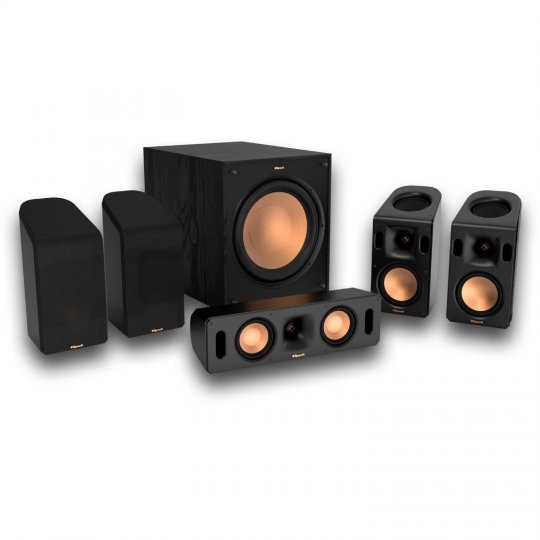

The Klipsch Reference Cinema System 5.1.4 with Dolby Atmos combines Reference Series acoustics with Dolby Atmos technology to deliver an immersive, multidimensional experience you won't find anywhere else.

Sound All Around

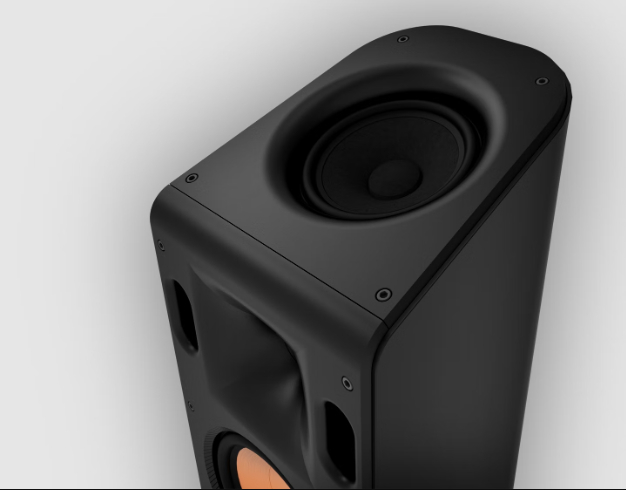

Featuring four satellite speakers outfitted with Dolby Atmos technology, the Klipsch Reference Cinema System delivers height effects from the front AND the back for a best-in-class Dolby Atmos experience.

Minimal Footprint

Connecting easily to your A/V receiver, this compact system is perfectly tuned for maximum impact.

Reach New Heights

Ideal for movies, music, and gaming, Dolby Atmos brings sound to life from all directions, including overhead, to fill the room with astonishing clarity, detail and depth.

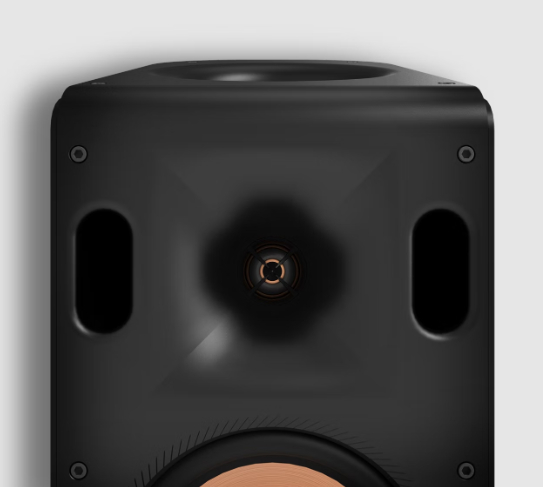

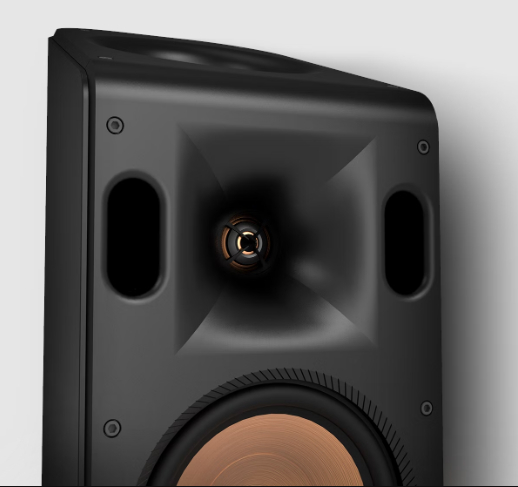

90° X 90° Tractrix® Horn

Our exclusive Tractrix horn technology delivers an impressive high-end response and greater extension, enhanced imaging and powerful dynamics.

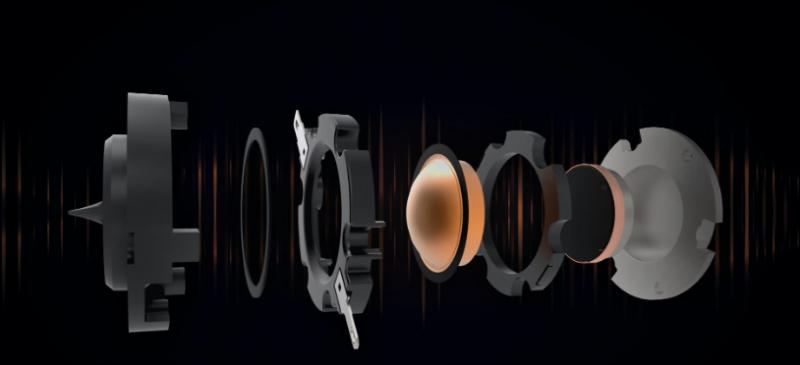

Reference-Grade Tweeters

Aluminum tweeters with Linear Travel Suspension (LTS) minimize distortion for enhanced, detailed sound and have long been a hallmark of our Reference Series product lines.

Spun Copper IMG Woofers

Injection Molded Graphite (IMG) woofers are exceptionally light and extremely rigid - providing remarkable low frequency response, with minimal cone breakup or distortion.

Dual Port Design

The dual port design provides improved cabinet tuning and low frequency response for impactful bass performance from every single component of the Reference Cinema System.

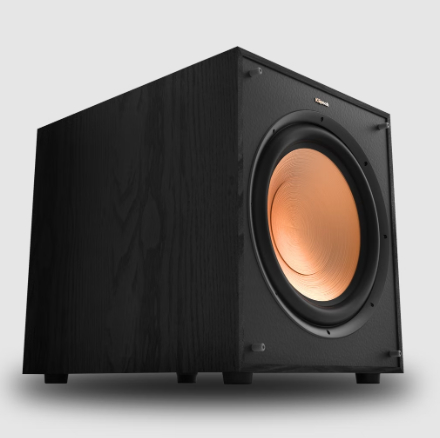

Best-In-Class Bass

The Klipsch Reference Cinema System 5.1.4 with Dolby Atmos includes a best-in-class 10" subwoofer for incredibly deep bass. Feel every ounce of the action as though you're in the middle of the movie.

Next-Gen Compatible

Dolby Atmos is the gold standard in premium, cutting-edge home theater sound. The Klipsch Reference Cinema Systems offers an all-in-one speaker setup to future proof your listening experience for all new movies, music, and games.

Specifications:

Satellite:

• Frequency Response: 90Hz-20kHz (+/- 3dB)
• Sensitivity: 92 dB @ 2.83V / 1M
• Power Handling (Cont/Peak): 75W/300W
• Nominal Impedance: 8 ohms compatible
• Crossover Frequency: 2000Hz
• High Frequency Driver: 1" Aluminum LTS Tweeter Mated to a 90x90 Tractrix® Horn
• Low Frequency Driver: 5.25" Spun-Copper IMG Woofer
• Inputs: Single Gold Plated Binding Posts
• Enclosure Type: Bass-Reflex via dual front-firing ports
• Height: 13.47" (342.1 mm)
• Width: 6.47" (164.3 mm)
• Depth: 7.45" (189.2 mm)
• Weight: 8.2 lb (3.72 kg)
• Mounting: 1/4" x 20 Threaded Insert

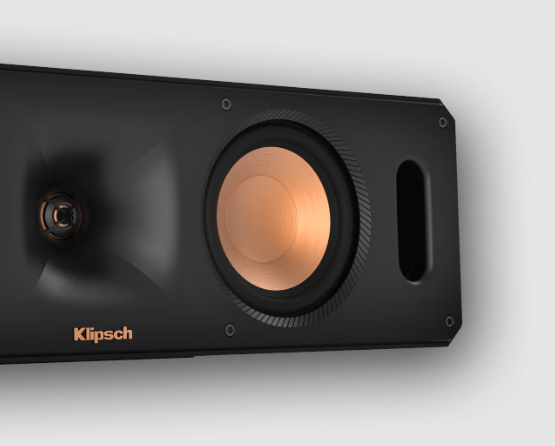

Center:

• Frequency Response: 80Hz-20kHz (+/- 3dB)
• Sensitivity: 91 Db @ 2.83V/1M
• Power Handling (Cont/Peak): 75W/300W
• Nominal Impedance: 8 ohms compatible
• Crossover Frequency: 1800Hz
• High Frequency Driver: 1" Aluminum LTS Tweeter Mated to a 90x90 Tractrix® Horn
• Low Frequency Driver: Dual 4" Spun-Copper IMG Woofers
• Inputs: Single Gold Plated Binding Posts
• Enclosure Type: Bass-Reflex via dual front-firing ports
• Height: 5.16" (131.1 mm)
• Width: 17.60" (447.0 mm)
• Depth: 6.07" (154.2 mm)
• Weight: 7.4 lb (3.36 kg)
• Mounting: Dual 1/4" x 20 Threaded Insert

Height Channel:

• Frequency Response: Conforms to Dolby Atmos Specifications
• Sensitivity: Conforms to Dolby Atmos Specifications
• Power Handling (Cont./Peak): 40W/160W
• Nominal Impedance: 8 ohms compatible
• Driver: 4" Polyfiber Woofer
• Enclosure Type: Acoustic Suspension
• Inputs: Single Gold Plated Binding Posts

Subwoofer:

• Frequency Response: 32Hz - 120Hz +/- 3dB
• Maximum Acoustic Output: 112 dB
• Amplifier: All Digital
• Amplifier Power (Cont/Peak): 150W/300W
• Amplifier Features: Volume, Low-pass, 0/180 phase, Auto Power On
• Driver Components: 10" high excursion spun-copper IMG woofer
• Enclosure Material: MDF
• Enclosure Type: Bass-Reflex via rear-firing port
• Inputs: Line level/LFE RCA jacks
• Height: 14.5" (368 mm)
• Width: 12.5" (318 mm)
• Depth: 16.4" (417 mm)
• Weight: 24 lbs (10.9 kg)
