Onkyo HT-S7800 5.1.2-Channel Dolby Atmos Ready DTS:X 4k-Upscale Home Theater - Refurbished

Secure One-Page Checkout

$1,499.99 sale $899.99

Get 36 Miles When you spend $899.99. See details
Onkyo Authorised
Onkyo HT-S7800  Out of Stock 899.99
UPC : 889951000327  5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back


Manufacturer Refurbished Product

 Out of Stock

$100/mo suggested payments with 9 month special financing now with Flexiti.Get Instantly approved for 0% financing




  • 1190 Watts Total Power
  • Dynamic Audio Amplification for Clear & Realistic Sound
  • VLSC for Front Channels
  • DTS:X™ Ready and Dolby Atmos® Support
  • HDMI® 8 In / 2 Out
  • Powered Zone 2
  • 4K UltraHD / HDR / HDCP 2.2 / 4:4:4 Color Space
  • Built-in Bluetooth & Wi-Fi® with Pandora, Spotify, and AirPlay
  • DSD 5.6 MHz, FLAC 192 kHz/24-bit Hi-Res Audio Capable
  • 384 kHz/32-bit Hi-Grade DAC





Dynamic Audio Amplification

Backed by 70 years of experience building high-grade audio components, the HT-S7800 amplifies accurate, noise-free signal processing with high-current power for dynamic speaker control. The result is pure, rich and authentic sound.

Onkyo's dynamic audio amplification delivers massive power at 170 W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven)/ 100 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven).

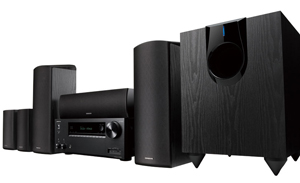

Powerful Speaker Set

The 2-Way bass reflex front left and right speaker cabinets also house the full-range acoustic-suspension Dolby Atmos-enabled height speakers. These special drivers bounce discrete sound effects off the ceiling into your listening space. Besides producing amazing traditional surround sound, each solidly crafted speaker in this 5.1.2 package reproduces the latest object-based surround sound as its creators intended.


Multi-Zone Audio

The HT-S7800 Powered Zone 2 brings audio to speakers connected to the receiver into a second room. With the dedicated Zone 2 DAC for Net & SPDIF, you can send internet audio and digital audio sources connected via coax or optical (such as Apple TV) to your second listening zone.


Supports Dolby Atmos® Up to 5.1.2 Channels

Dolby Atmos moves sound around you in three-dimensional space, so you feel like you're inside the action. The HT-S7800's Dolby Atmos decoding transports you from the ordinary into the extraordinary.

Sound designers and artists mix in a 3D space, steering effects through surround channels and adding a seamless overhead dimension with discrete height channels.

Additionally, the Dolby surround up-mixer processes content not mixed for Dolby Atmos to fill the flexible speaker layouts of a Dolby Atmos system.


DTS:X Ready

DTS:X is an object-based surround sound technology that includes height channels for a fully-immersive listening experience. DTS:X provides listeners flexibility, immersion, and interactivity. You will be able to personalize your audio experience, for example, by turning up JUST the dialog within a mix. DTS:X allows you to customize to your room layout as well as control dialog and dynamic range.

(DTS:X functionality via Summer 2016 firmware update.)


4K UltraHD Video Performance

The HT-S7800's HDMI specifications and HDCP 2.2 compatibility support the latest formats being released by Hollywood. The latest HDMI specs offer a significant increase in bandwidth (up to 18Gbps) to support new features such as 4:4:4 color space and [email protected]/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution. The HT-S7800 enables transmission of High Dynamic Range (HDR) formats, with BT.2020 support, and provides enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image.

The HT-S7800 also effortlessly upscales 1080p video to stunning 4k UltraHD.



Bluetooth / Wi-Fi® with Pandora, Spotify, and AirPlay

The HT-S7800 has AirPlay, Wi-Fi and Bluetooth technologies built in. Stream virtually any audio from a smartphone, tablet or PC to your home theater for powerful sound.

With Spotify, Pandora, and TuneIn built-in, you can select a station and search for music available on these services via the Onkyo Remote app on your phone. The free Onkyo Remote app puts a range of streaming options at your fingertips, from universal hi-res audio via network-attached devices to internet streaming services to music on your smartphone and tablet.

Further, Tidal and Google Cast will be operable with an upcoming firmware update.


384 kHz/32-bit Hi-Grade DAC

No matter what you're listening to, it will sound powerfully full, clean and clear. A premium-quality AK4458 digital-to-analog converter from Asahi Kasei implements unique low-distortion filtering technologies for clear sound, and unlocks the full potential of any audio format, including compressed, lossless, and hi-res audio (MP3, WMA, WMA Lossless, FLAC, WAV, OggVorbis, AAC, Apple Lossless, DSD 5.6 MHz, LPCM, and Dolby TrueHD).

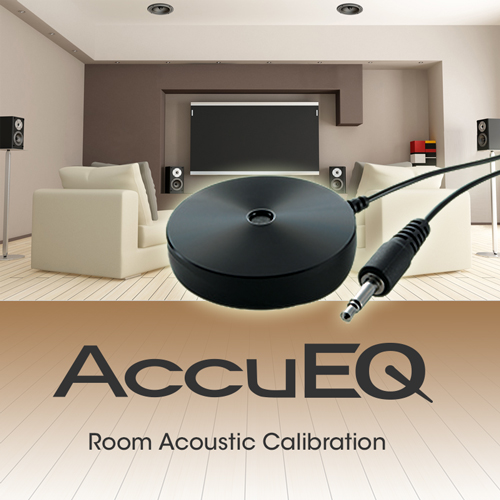

AccuEQ adds AccuReflex for 2016

AccuEQ conducts two measurements- one to set the level, distance and crossover for ALL speakers, including the subwoofer. Choose to include or bypass EQ measurement for front left and right speakers, and choose to automatically or manually set the EQ. Further, you can save your own manual EQ settings into three available presets.

The new AccuReflex technology aligns the phase of upfiring "height" speakers with the sound coming directly from your other speakers. Any delay is resolved so that everything arrives at your ears at the same time. The result is cohesive reproduction of object-based soundtracks.


FireConnect™ Multi-room Audio

A firmware update will enable any audio source connected to the receiver (from vinyl to streaming audio) to be sent wirelessly via FireConnect Powered by Blackfire to an optional speaker* placed anywhere in your home. Stable, fast, and easy to control with a mobile, it’s the smart way to set audio free.

System

  • # Channels : 5.1.2
  • Total System Power : 1190W
  • Power : 170 W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven, FTC);
    100 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, FTC)
  • Sub Power : 120W
  • THX Certified : -
  • All Discrete Amplifier Circuitry : YES
  • Speaker A/+B : -

Processing

  • Dolby Atmos Ready : YES
  • 32-Bit Digital Signal Processing Engine : AK4458 384 kHz/32-bit DAC (8 Channels x 1)
  • Dolby Decoder : TrueHD, Dolby Atmos
  • DTS Decoder : DTS-HD Master Audio, DTS:X
  • ONKYO GAME Surround Modes : YES
  • AccuEQ : YES
  • Advanced Music Optimizer : YES (Bluetooth Included)
  • Phase-Matching Bass Boost : -
  • 192K/24 Bit DACs : -
  • Bluetooth : YES (Built-in)

Connectivity

  • Audio I/O : 8 / 0
  • Digital Audio IN (OPT/COAX) : 2 / 1
  • Digital Audio OUT (OPT/COAX) : -
  • Composite I/O : 2 / 0
  • USB Input : Front
  • Component Video I/O : 2
  • HDMI I/O : 8 / 2
  • HDMI 2.0 4K/60 Hz- Capable HDMI Terminals : YES
  • HDCP 2.2 Copy-Protection Compatibility : YES (for Ultra4K/Full HD Video Streaming and Broadcast)
  • HDMI Support for 3D, Audio Return Channel and CEC : YES
  • HDMI Support for Deep Color, x.v.Color, LipSync : YES
  • HDMI Support for DVD-Audio, SACD, Multichannel PCM : YES
  • InstaPrevue Input Source Prevue : -
  • MHL for Mobile Device Connection : -
  • Component Video Upconversion : YES
  • Analog To HDMI UpConversion : YES
  • 1080p Upscaling : YES
  • 4K (up to 4096 x 2160) Upscaling : - (1080p to 4K)
  • 4K Passthrough : YES
  • Zone 2 : Powered and Line-Out
  • iPod Ready : -
  • Airplay Ready : X Built-In
  • Supports Onkyo Remote App : YES (iPod touch/iPhone and Android-Powered Devices)
  • Internet Radio Capable : YES (TuneIn Radio, Pandora, Spotify,TIDAL)
  • Streaming Audio From PC / Network : YES (DLNA, Home Media)
  • Streaming Audio Formats : YES (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC Stereo, Apple Lossless, DSD 5.6 MHz, LPCM, Dolby TrueHD)
  • Streaming Audio From USB memory : YES
  • Wireless Network : YES (Wi-Fi-Certified)

Speaker

  • Front / Height Speakers : 2-way (Bass Reflex)/Dolby-Atmos Enabled Full-Range (Acoustic-Suspension)
  • Center Speaker : 2-way (Bass Reflex)
  • Surround Speaker : Full-Range (Acoustic Suspension)
  • Subwoofer : 10" Down Firing (Bass Reflex), Powered
  • Cabinet Type : Wood/Gloss Finished Panels

Miscellaneous

  • Pre-Pro/Learning Remote : - / - (Simple)
  • On Screen Remote Programming : -
  • Color-Coded Speaker Terminals : -
  • Auto Speaker Calibration W/Mic. : YES (AccuEQ w/ AccuReflex)
  • OSD Out : YES (Advanced "Home" GUI)
  • Warranty : 2 YEARS

Amplifier Section Power Output

  • All Channels : 170 W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven, FTC) 100 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, FTC)
  • Dynamic Power (front) : 240 W (3 Ohms)
    210 W (4 Ohms)
    120 W (8 Ohms)
  • THD+N (Total Harmonic Distortion + Noise) : 0.08% (20Hz-20kHz, half power)
  • Damping Factor : -
  • Input Sensitivity and Impedance : 200 mV/47 k-ohms (Line)
    3.5 mV/47 k-ohms (Phono MM)
  • Output Level and Impedance : 200 mV/2.3 k-ohms (Zone 2 Line Out)
    1 V/470 Ohms (Subwoofer Pre Out)
  • Frequency Response : 10 Hz–100 kHz/+1 dB, -3 dB (Direct mode)
  • Tone Control : ±10 dB, 90 Hz (Bass)
    ±10 dB, 7.5 kHz (Treble)
  • Signal-to-Noise Ratio : 106 dB (Line, IHF-A)
    80 dB (Phono)
  • Speaker Impedance : 6 Ohms–16 Ohms

Video Section Input Sensitivity/Output Level and Impedance

  • Video : 1.0 Vp-p/75 Ohms (Component Y)
    0.7 Vp-p/75 Ohms (Component PB/CB, PR/CR)
    1.0 Vp-p/75 Ohms (Composite)
  • Component Video Frequency Response : +0 dB, -3 dB

Tuner Section Tuning Frequency Range

  • FM : 87.5 MHz–107.9 MHz
  • AM : 530 kHz–1,710 kHz
  • FM/AM Preset Memory : 40 stations

General

  • Power Supply : AC 120 V, 60 Hz
  • Power Consumption : 580 W
  • Standby Power Consumption : 0..1 W
  • Dimensions (W x H x D) : 30 3/8" x 33 11/16" x 20 1/4" (772 x 855 x 514 mm)
  • Weight : 81.6 lbs. (37 kg)
  • Speaker - Type
    • Front/Height : 2-way Bass Reflex (Front), Full-Range Acoustic Suspension (Height)
    • Surround : Full-Range, Acoustic Suspension
    • Subwoofer : Bass reflex, Powered
  • Speaker - Drivers
    • Front/Height : 5" (12 cm) cone woofer
      1" (2.5 cm) balanced-dome tweeter (Front), 3 1/4" (8 cm) cone
    • Center : 3 1/4" (8 cm) cone woofer x 2
      1" (2.5 cm) balanced-dome tweeter
    • Surround : 3 1/4" (8 cm) cone
    • Subwoofer : 10" (25 cm) cone
  • Speaker - Frequency Response
    • Front/Height : 55 Hz–50 kHz / 80 Hz–20 kHz
    • Center : 65 Hz-50kHz
    • Surround : 80 Hz–20 kHz
    • Subwoofer : 25 Hz–150 Hz
    • Speaker - Output Sound Pressure Level
    • Front/Height : 84.5 dB/W/m (Front), 81 dB/W/m (Height)
    • Center : 86 dB/W/m
    • Surround : 81 dB/W/m
    • Subwoofer : -
  • Speaker - Max. Input Power
    • Front/Center/Surround : 130 W
    • Subwoofer : -
  • Speaker - Rated. Output Power
    • Subwoofer : 120 W
    • Speaker- Nominal Impedance
    • Front/Center/Surround : 6 Ohms
    • Subwoofer : -
  • Speaker - Input Sensitivity/Impedance
    • Subwoofer : 540 mV/20 k-ohms
    • Speaker - Dimensions (W x H x D)
    • Front : 6 1/8" x 18 3/8" x 7 3/16" (155 x 467 x 183 mm)
    • Center : 16 9/16" x 4 1/2" x 4 11/16" (420 x 115 x 119 mm)
    • Surround : 4 1/2" x 9 1/16" x 3 3/4" ( 115 x 230 x 96 mm)
    • Subwoofer : 12 1/2" x 18 7/16" x 15 11/16" (317.5 x 468 x 398 mm)
  • Speaker - Weight
    • Front : 7.9 lbs. (3.6 kg)
    • Center : 5.1 lbs. (2.3 kg)
    • Surround : 2.2 lbs. (1.0 kg)
    • Subwoofer : 21.2 lbs. (9.6 kg)
  • UPC Code: 889951000327
