Onkyo TX-NR797 7.2-Channel Network A/V Receiver

Secure One-Page Checkout

$999.99

Onkyo Authorised
Onkyo TX-NR797 Available 999.99
UPC : 889951001744 5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back
Shipping : FREE in Canada Ships out in 5 Days






This 9.2-channel Onkyo SMART A/V Receiver™ plays the lead role in your whole-home audio experience. Works with Sonos, Chromecast built-in, AirPlay 2, and DTS Play-Fi®are enhanced by high-speed 802.11ac Wi-Fi®while speaker outputs with DACs can power D/A audio in three rooms. With nine channels of high-current power on tap, roll up the volume to THX®Certified Select™ reference level and wrap your family in 5.2.4 channels of Dolby Atmos®or DTS:X®sound, or feel IMAX®Enhanced content as the filmmakers intended. Dolby Surround®upmixes legacy sound for height-enabled systems while Dolby Atmos Height Virtualizer creates a 3D sound-field using horizontal speakers. DAA features an upgraded power-train while anti-noise refinements result in a wider soundstage. AccuEQ Advance 9-point calibration eliminates standing waves so audio is expressed naturally. All this and more helps the TX-NR797 shape entertainment to your life.

  • 100 W/Ch (8 Ohms), 220 W/Ch (6 Ohms) THX®Certified Select™ DAA system
  • SMART AV Receiver™ Works with Sonos1, Chromecast built-in, AirPlay 2, DTS Play-Fi®, FlareConnect, Spotify®, Amazon Music, Pandora®, TIDAL, Deezer, TuneIn
  • 9.2-ch amps support 5.2.4-ch Dolby Atmos®and DTS:X®playback
  • Dolby Atmos Height Virtualizer2
  • IMAX®Enhanced2 certified for IMAX®digital remasters
  • Refined HDMI®grounds, SoC board, and power amps
  • HDMI Sub/Zone 2 output for a sub-display or projector
  • Quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi®
  • Zone 2/Zone B line-out with DAC shares D/A audio (including HDMI/SPDIF)
  • Supports 5.2-ch Main + Powered Zone 2 + Powered Zone 3 speaker outputs for simultaneous/independent D/A audio distribution
  • Stereo Assign Mode supports Height-channel playback
  • DSP-based Vocal Enhancer improves dialog audibility
  • OSD features media input/output data display function
  • HDMI supports 4K/60p, 4K HDR, BT.2020, HDCP 2.3
  • AccuEQ Advance 9-point calibration with AccuReflex™
  • Volume memory-presets for A/V inputs via front panel
  • IP control, RS-232C, 12 V trigger output, and IR input

Smart AV Receiver™ makes multi-room easy

SMART AV Receiver is the heart of your home entertainment system. Access streaming content from Amazon Music, Pandora®, Spotify®, TIDAL, Deezer, and TuneIn and share sound as part of a multi-room system via Works with Sonos, Chromecast built-in, AirPlay 2, DTS Play-Fi®, and FlareConnect™.

Works with Sonos

The TX-NR797 can join your existing Sonos Home Sound System, or be the start of a new one, by pairing it with a Sonos Connect. The AVR ties into the Sonos ecosystem, waking, changing inputs, and playing at the desired volume on command from the Sonos app.

Chromecast built-in with the Google Assistant

Stream any music from your smartphone, laptop, or PC to the receiver with ease. Control playback with Chromecast-enabled apps you know and love from your iPhone, iPad, Android™ phone or tablet, Mac or Windows®laptop, or Chromebook™. If you have a smart speaker featuring the Google Assistant, you can cue, play, and control music playback by voice.

Experience IMAX®Enhanced

IMAX Enhanced A/V receivers feature DTS:X sound technology optimized for the IMAX®signature experience, reproducing the full dynamic range of IMAX theatrical sound-mixes available with digitally re-mastered IMAX Enhanced content. A pre-set IMAX Mode reproduces audio at the highest levels and delivers IMAX Enhanced content as the filmmakers intended. IMAX Enhanced versions of a range of films, from Hollywood blockbusters to documentaries, will be released for 4K HDR streaming and Ultra HD Blu-ray™.

THX®Certified Select™ theater-reference sound

THX Certified Select guarantees the same reference volume level of a commercial theater in rooms where the viewing position is about 10-12 ft. from the screen. To gain certification for reference sound within strict THX®sound-quality parameters, receivers must pass 2,000 bench-tests in 75 categories covering 14,000 data points.

Dolby Atmos Height Virtualizer

When playing any Dolby®format, engaging Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.

Ready for 4K HDR entertainment®

Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision®, and BT.2020. The 4:4:4 color space is also supported. Seven HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.3 compliant.

Rich analog sound from any digital source

High-quality AKM 384 kHz/32-bit D/A conversion is enhanced by VLSC™ filtering (Front L/R channels), an original technology that erases digital noise arising from D/A conversion. Enjoy the purity of Hi-Res Audio sources, CD, and streaming music.

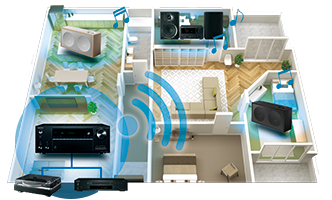

Whole Home Audio, just add speakers

Orchestrate playback of different audio sources in up to three rooms at once from your smartphone. The TX-NR797 has nine amplifier channels and two zone audio DACs supporting D/A audio distribution via Zone 2 and Zone 3 outputs, including HDMI®/SPDIF/NET/Bluetooth®, and supports a variety of speaker layouts including 5.2.2-ch Main + Zone 2, or 5.2-ch + Zone 2 + Zone 3.

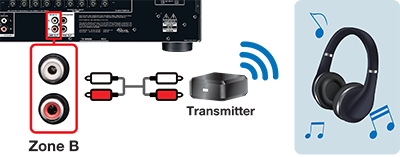

Versatile Zone 2/Zone B line-out

Connect an audio system via analog RCA input to the AVR's Zone 2/Zone B line-out. In Zone 2 mode, you can play the same or different D/A sources (including SPDIF and HDMI) in either or both rooms at the same time. Zone B mode is an ideal match for a supported wireless transmitter. Listen to any source-including the TV-through wireless headphones. Perfect for midnight movies and TV.

Dynamic Audio Amplification

Refined over 70 years to deliver emotion in high fidelity, DAA features a custom High-Current Low-Noise Power Transformer, customized capacitors, and discrete amp output stages. Unique topology prevents phase-shift while high current improves speaker control for true dynamic speed. Driving 4-ohm loads through all channels, DAA has power to move.

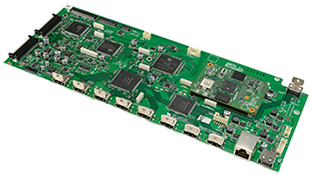

New upgrades reduce noise and boost power

The TX-NR797 adds new refinements that control noise, boost power, and improve S/N performance. A new HDMI®board has shorter signal-paths and large, carefully finished grounds for clean A/V signals. SoC is isolated to reduce interference noise. The power-supply line is strengthened in pursuit of power and the results are evident in improved speed, force, and localization across an expanded soundstage.

AccuEQ Advance with AccuReflex™

AccuEQ Advance room acoustic calibration uses nine-point measurement to remove standing waves that occur when sound from the speakers resonates with sound reflecting off the walls, altering its natural expression. During the process, background noise is ignored to ensure accurate equalization. AccuReflex optimizes 3D sound reproduction through height speakers by resolving phase-shift. Enjoy a cohesive 3D soundfield in rooms of any shape or size.

Connections for custom installation

The TX-NR797 features a 12 V trigger output for an external component and an IR input for remote-control range extension. It supports IP control, RS-232C, and OSD output for custom installers. An optional rack-mount kit is also available.

Quad-core SoC supports 802.11ac Wi-Fi®

A powerful SoC (System on a Chip) processes multiple tasks at once. It evolves network functions and supports the latest high-speed 802.11ac (2x2 MIMO) specification while compatible with 802.11 b/g/n dual-band routers.

Clarify voice dialog in-program instantly

Vocal Enhancer solves inaudible dialog in TV programs and movies. DSP technology identifies voice frequencies so you can adjust them using remote-control keys or controls on the front panel.

Features:

Amplifier:

  • # Channels: 9.2
  • Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC): 100 Watts, 0.08% THD
  • Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven): 220 Watts, 10% THD
  • Dynamic Audio Amplification: ✔ (for Clear and Realistic Sound)
  • H.C.P.S. (High Current Power Supply): ✔
  • Non-Phase Shift Amplifier: ✔
  • THX Certified: ✔
  • Continuous 6 Ohms Rated: ✔
  • Certified 4 Ohms Performance: ✔
  • Discrete Output Stage Circuitry: ✔
  • Amplifier Design: Linear Class A/B:
  • Independent Block Construction (Amp/Preprocessor): -
  • Independent Power Supply: -
  • Bi-amp Capability For Front: ✔

Processing:

  • Dolby Atmos: ✔
  • Dolby Atmos Height Virtualizer: ✔ (Enabled with a future firmware update)
  • 32-Bit Digital Signal Processing Engine: ✔
  • Dolby Decoder: Dolby Atmos, True HD, Dolby Surround
  • DTS:X: ✔
  • DTS Decoder: DTS:X, DTS-HD Master Audio, Neural:X
  • ONKYO GAME Surround Modes: ✔ (Rock, Sports, Action, RPG)
  • VLSC for Noiseless Audio Processing: ✔ (Fronts)
  • IMAX Enhanced: ✔ (Enabled with a future firmware update)
  • THX Processing Mode: ✔
  • CinemaFILTER: -
  • AccuEQ Room Calibration: ✔ (Advance w/ AccuReflex)
  • Phase-Matching Bass Boost: ✔
  • Direct/Pure Mode: ✔ / -
  • Pure Direct Analog Path Mode: -
  • Advanced Music Optimizer: ✔
  • 384K/32 Bit DACs: ✔
  • 192K/24 Bit DACs: -

Connectivity:

  • Analog Audio IN: 6
  • Phono Input: ✔
  • Digital Audio IN (OPT/COAX): 1 / 1
  • Composite Video I/O: 2 / 0
  • Component Video I/O: 1 / 0
  • Front Panel HDMI: ✔
  • Front-Panel A/V: 1 (Analog)
  • USB Input: ✔ (Rear)
  • HDMI I/O: 7 / 2 (Main/Sub)
  • HDMI 4K/60 Hz- Capable HDMI Terminals: ✔
  • HDCP 2.3 Copy-Protection Compatibility: ✔ (Enabled with a future firmware update)
  • HDMI Support for High Dynamic Range: ✔
  • HDMI Support for 3D, Audio Return Channel and CEC: ✔
  • Dolby Vision, HDR10, HLG, BT.2020 Support: ✔
  • HDMI Support for Deep Color, x.v.Color, LipSync: ✔
  • HDMI Support for DVD-Audio, SACD, Multichannel PCM: ✔
  • Analog To HDMI Upconversion: ✔
  • 4K Passthrough: ✔
  • Analog Pre-Outs: Subwoofer (x2)
  • Speaker A/+B: -
  • Powered Zone 2: ✔
  • Powered Zone 3: ✔
  • Zone 2 / Zone B Line Out: ✔
  • Zone 2 Video Out: -
  • Zone 2 Digital to Analog Audio Conversion: ✔ (SPDIF/NET/Bluetooth, HDMI Inputs 1-3)
  • Zone 3 Digital to Analog Audio Conversion: ✔ (Analog/Net/Bluetooth)
  • Zone 3 Line Out: -
  • Whole House Mode: -
  • FlareConnect Multi-room Audio: ✔
  • Airplay & Airplay 2: ✔
  • Chromecast built-in support: ✔
  • Supports Onkyo Remote App: ✔
  • Internet Radio Capable: ✔ (TuneIn)
  • Spotify Connect Support: ✔
  • Tidal: ✔
  • Amazon Music: ✔ (accessible via Onkyo Music Control app)
  • Streaming Audio From PC / Network: ✔
  • Hi-Res Streaming Audio Formats: ✔
  • Streaming Audio From USB memory: ✔
  • Wireless Network: IEEE 802.11 a/b/g/5GHz(11ac/a/n), 2&46;4GHz(11b/g/n)n 5 Ghz / 2.4 Ghz
  • Bluetooth: ✔ (Built-in)

Integration Access:

  • RS-232: ✔
  • IR Input: ✔
  • IR Output: -
  • Ethernet: ✔
  • ONKYO-RI System Control: -
  • RIHD (Remote Interactive Over HDMI): ✔
  • 12V Trigger: ✔

Miscellaneous:

  • Pre-Programmed Remote: -
  • Hybrid Standby Function: ✔
  • Smart Grid-Ready: ✔
  • Auto Speaker Calibration W/Mic.: AccuEQ Advance w/ AccuReflex
  • OSD Out: ✔
  • Solid Aluminum Front: -
  • Transparent High-Grade Speaker Terminals: -
  • Detachable AC Cord: ✔

Specifications:

Amplifier:

Power Output

  • All Channels:
    • 100 W/Ch (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC)
    • 220 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)
  • Dynamic Power:
    • 250 W (3 Ohms, Front)
    • 220 W (4 Ohms, Front)
    • 130 W (8 Ohms, Front)
  • THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz-20 kHz, Half Power)
  • Damping Factor: -
  • Input Sensitivity and Impedance:
    • 200 mV/47 k-ohms (Line/Unbalanced)
    • 3.5 mV/47 k-ohms (Phono/MM)
  • Rated RCA Output Level and Impedance:
    • 200 mV/470 ohms (Zone B / 2 Line Out)
    • 1 V/470 ohms (Subwoofer Pre Out)
  • Maximum RCA Output Level and Impedance: -
  • Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
  • Frequency Response: 10 Hz-100 kHz/+1 dB, -3 dB (Direct Mode)
  • Tone Control:
    • ±10 dB, 20 Hz (Bass)
    • ±10 dB, 20 kHz (Treble)
  • Signal-to-Noise Ratio
    • 106 dB (Line, IHF-A)
    • 80 dB (Phono, IHF-A)
  • Speaker Impedance: 4 ohms-16 ohms

Video:

  • Input Sensitivity/Output Level and Impedance: -
  • Video
    • 1.0 Vp-p/75 Ohms (Component Y)
    • 0.7 Vp-p/75 Ohms (Component PB/CB, PR/CR)
    • 1.0 Vp-p/75 Ohms (Composite)
  • Component Video Frequency Response: +0 dB, -3 dB

Tuner:

Tuning Frequency Range:

  • FM: 87.5 MHz-1070.9 MHz
  • AM: 530 kHz-1,710 kHz
  • FM/AM Preset Memory: 40 stations

General:

  • Power Supply: AC 120 V~, 60 Hz
  • Power Consumption: 750 W
  • No-Sound Power Consumption: 75 W
  • Standby Power Consumption: 0.15 W
  • Dimensions (W x H x D): 17 1/8" x 6 13/16" x 14 15/16" (435 x 173.5 x 379.5 mm)
  • Weight: 23.8 lbs (10.8 kg)

Carton:

  • Dimensions (W x H x D):
    • 21" x 10 7/16" x 18 7/16"
    • (534 x 265 x 468 mm)
  • Weight: 29.8 lbs (13.5 kg)
