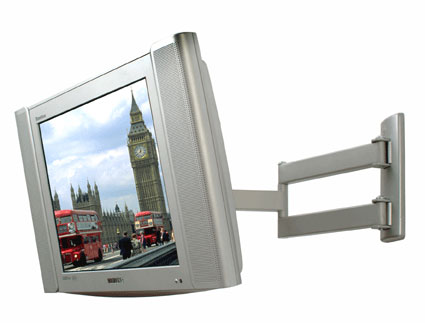

The BT7513 is designed for VESA compliant LCD Screens with a screen size of up to 23" and weight up to 20Kg. This mount allows the screen to be mounted either flat to the wall, or extended up to 450mm (17.75") from the wall. This makes it the ideal space saver by allowing the screen to be folded away when not in use. The BT7513 can swivel 180 degrees at the wall, 240 degrees at the end of the double arms, and a further 240 degrees at the joint between the VESA plate and arms.
Features:
- Designed for small flat screens up to 28" (71cm) / 15kg (33lbs)
- Fits screens with VESA mounting patterns:
- 75mm x 75mm and 100mm x 100mm
- Easy tilt adjustment +17°/ -10°
- Features 3 swivel points: 180° at wall, 360° at central pivot point, 240° at interface
- CLIPLOGIC® cable management included
- 360° rotation for easy screen levelling and to allow screen to be mounted in landscape or portrait style
- Security locking screws & Allen key provided for secure installation
- Features 'OWLS'™ On Wall Levelling System
- Simple 'hook-on' installation with all mounting hardware included
Specifications:
- Screen size: up to 28"
- Max Weight: 15kg (33lbs)
- Distance from wall: 95mm (3.7") - 467mm (17.7")
- VESA Compatibility: 75 x 75, 100 x 100
- Tilt: +17°, -10°
- Swivel: 180°, 360°, 240°
- Maximum weight: 15kg (33lbs)
- Maximum screen size: 28" (71cm)
