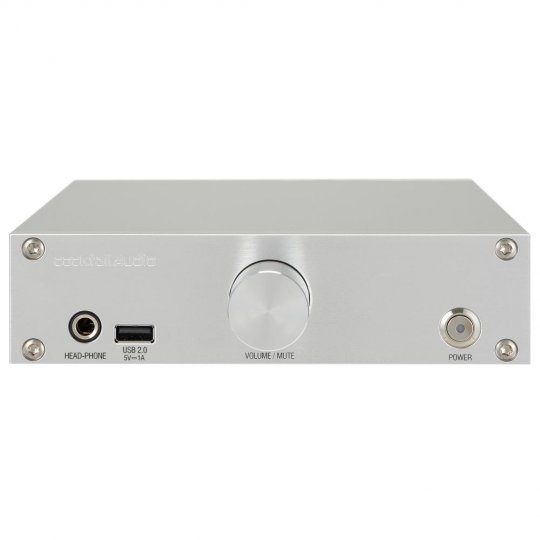

Cocktailaudio N15D

HiFi Network Adapter, Music Storage & Player with Music Database, Streamer, USB DAC and much more. Give networking capability to your existing DAC or Amplifier.

High Performance System Resources

• Based on powerful dual core ARM Cortex A9 running at 1.0GHz
• UPnP(DLNA) Server/Client/Media Renderer/Samba Server/Client are supported
• Super Sound Quality created by Sabre ES9018K2M Reference DAC built-in
• 2.5 inch HDD or SSD storage deck is ready
• Giga Fast Ethernet LAN built-in
• High speed internal data transferring

Hi-Res Audio Formats are Supported

• 24Bit/192KHz HD WAV, FLAC are supported
• DSD64, DSD128, DSD256 files are supported
• Support MQA file

Other Great Features & Functions

• Dedicated USB Audio Class 2.0 Input is ready
• Major Online Muisc Services like TIDAL Qobuz, Deezer, Napster, Airable are integrated
• Apple Airplay is supported
• Intuitive, feature rich and speedy remote control app for iOS and Android devices
• Give networking capability to your existing DAC & Amplifier
• Roon Ready is supported

Most of Music File Formats Including Hi-Res Format are Supported

Hi-res music files like DSD file(DSD64/128/256), DXD(24Bit/352.8Khz), 32Bit/384Khz PCM file and 24Bit/192Khz HD WAV/FLAC files are supported.

High Performance System Resources

Dual Core ARM Cortex A9 processor running at 1.0GHz.

Integrating commerical version of NTFS/HFS+ file system and EXT4 Linux file system into the N15D. This wll lead to wonderful performance for backup and file management functions.

Giga Fast Ethernet LAN built-in.

High Quality Analog Out Terminal for High Quality Sound

To guarantee lossless signal transmission and high quality sound, N15D offers a fair of high quality analog out terminal which is powered by ESS Sabre DAC ES9018K2M cooperating with XMOS 32Bit/500MIPS Digital Signal Processor.

Convenient Control with Customized App(NOVATRON Music X) and WebInterface

Customized App for the N15D, named as 'NOVATRON Music X' is also available. You can control full range of N15D functions via this App remotely with your Android and iOS mobile devices. NOVATRON Music X is available at Google Play Store and Apple App Store.

Additionally, WebInterface is also available. Try using it with your PC, it will be great tool to control the N15D via your PC remotely.

Versatile Networking Functions

Connect the N15D to your network to stream music to and from other devices, listen to cloud based music services and control remotely using mobile devices.

Control remotely using mobile devices including: iPhone, iPad and Android smartphones and tablets with customized App, NOVATRON MusicX.

The N15D is a UPnP (DLNA) Media Server& Renderer so you can stream music to and from other compatible devices (e.g. WiFi speakers).

Use the cocktailAudio Web Interface to control the N15D and manage the Music DB remotely.

Access online music services like Qobuz, TIDAL, Deezer and Airable.

Manage your files (Copy, move or delete) over a network thanks to support for Samba.

Famous Online Music Services Integrated Into the N15D

Famous online music services like qobuz, TIDAL, Deezer, Napster are available at the N15D. You can play them directly with the N15D conveniently if you have its user ID and password.

Millions of Internet Radio Stations and Podcasts are Also Provided with Free.

This is powered by Airable Internet Radio server. You can record iRadio music also with high qualtity of audio via the N15D's recording function

Storage for Music Database

You can intall 2.5inch hard disk drive or solid-state drive(SSD) into N15D. And, you can build your own Music Database via N15D's 'Import to DB' function.

Major Two(2) Functions of N15D

1. USB DAC(Digital to Analog Converter)
You can connect N15D to PC via USB cable, and play files in your PC via N15D with wonderful sound quality.

2. HiFi Network Adapter, Source Device, Music Storage & Player with Music Database for Existing Amplifier or DAC
N15D is a network streaming node designed for your existing DAC or Amplifier. It will give your existing audio systems wonderful networking ability.

Features:

Many Useful Functions

Created by custom-designed smart software developed by in-house R&D center.

1. USB DA Converter


Connect N15D to your PC, and play music files in your PC via N15D with wonderful sound.

2. Network Adaptor, Music Storage & Player with Music Database for Existing DAC and Amplifier

3. Recording for Internet Radio


You can record internet radio and edit the recorded file.

4. Online Music Service


Qobuz, TIDAL, Deezer and Airable Internet Radio.

5. Make a Playlist


You can make a playlist to classify songs as you want.

6. Browser


Via Browser, you can play files directly, add shared folder, etc.

7. Make Music DB(Database)


Via 'Import to DB' function, you can make Music DB to manage your music library effectively.

8. Check for New Firmware and Update


You check easily if new firmware is available, and update it via network.

9. Auto Shutdown


Schedule when you want the N15D powered off.

10. Alarm


You can set Alarm with Playlist or internet radio station.

11. Format Storage


N15D offers HDD format function for NTFS or Linux file system.

12. Resume Play


After booting up, resume playing automatically where it was last stopped.

13. Auto Play


After booting up, files stored in 'Auto Play' folder will be played automatically.

14. Shareplay(Airplay)


You can set 'Shareplay(Airplay)' function as ON or OFF.

15. Web Server and WebInterface


You can control N15D remotely with your PC via WebInterface function.

16. Gapless Play


The N15D can play back MP3, WAV, FLAC and DSD files seamlessly, which were originally recorded without any pauses or clicks in between tracks.

17. Digital Out Volume


You can set Digital Out Volume as Variable or Fixed.

18. DSD Native ON/OFF


To play DSD file via N15D digital out, you need to set DSD Native as OFF.

19. Music DB Integrity Check


This function will check any error in MusicDB. You can select when this check will do In 'shutdown or in booting'.

20. Music DB Backup and Restore


You can backup muisc database, and restore it.

21. Music DB Display Mode


N15D offers 8 options of Display Mode to list up contents in Music DB as you want.

22. HDD Sleep


You can make N15D HDD go to sleep mode if no access to HDD for set time like 10 Min, 20 Min, 30 Min or 1 Hour.

Specifications:

Model Name:

• cocktailAudio N15D

Host CPU & Memory:

• CPU: Dual Core ARM Cortex A9 running at 1.0GHz
• Main Memory: DDR-1066 1GByte
• EMMC 8GByte

Storage:

• SATA II interface
• 2.5inch HDD & SSD Support

Interface:

• Customized Remote App Control
• Web Interface Control

Digital Out (Variable/Fixed):

• COAXIAL x 1: S/PDIF 75ohm RCA, Sample rate: up to 24bit/192KHz
• TOSLINK x 1: S/PDIF, Sample rate: up to 24bit/192KHz

Analog Output:

• RCA(L, R): Fixed/Variable, 4.5Vrms(Max)
• Headphone: 6.35mm Jack, 80mW at 300 ohms

Audio Input:

• USB Audio In: USB Standard B Connector, USB Audio Class2.0 Input

Connectivity:

• USB Host
• USB2.0(5V/1A) x 1 at front
• USB3.0(5V/1A) x 2 at rear
• Network
• Wired: Giga Fast Ethernet(10/100/1000Mbs)
• Wireless(Option): WiFi USB Dongle via USB Host port

Codec & Format Supported:

• DSD(DSD64, DSD128, DSD256), DXD(24Bit/352.8KHz),HD WAV(24Bit/192KHz), HD FLAC(24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, Ogg Vorbis, PCM, M3U, PLS, etc

Network Protocols Supported:

• UPnP(DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc

Internet Services:

• Internet Radio/Podcast: Airable
• Online Music Services: TIDAL, Deezer, Qobuz, Spotify Connect, Napster

Power Source:

• 220V - 240V ~50/60Hz(* 110V area : 100V - 120V ~50/60Hz)

Dimension:

• 180mm(W) x 180mm(D) x 45mm(H) without foot
