The Elipson IW8 is the largest in-wall speaker in the Architect In range. This 2-way speaker is designed to
reproduce the front channel in a home cinema installation.
The Elipson IW8 in-wall speaker is part of the Architect IN range, a collection of visually discreet audio
system components. This large, 2-way speaker is compatible with most hi-fi amplifiers and home theater receivers
on today's market. It handles immersive, multichannel formats while adding a vertical dimension to your home theater
installation.
The in-wall speakers in Elipson's IN range have been designed for both private and public spaces.
They are a testament to Elipson's commitment to offering breathtaking audio quality. The IW8 may be used in a
variety of settings: conference rooms, shopping malls, amphitheatres, restaurants, stores, hotels, offices, private
screening rooms, schools, private home theaters, integrated hi-fi systems ...

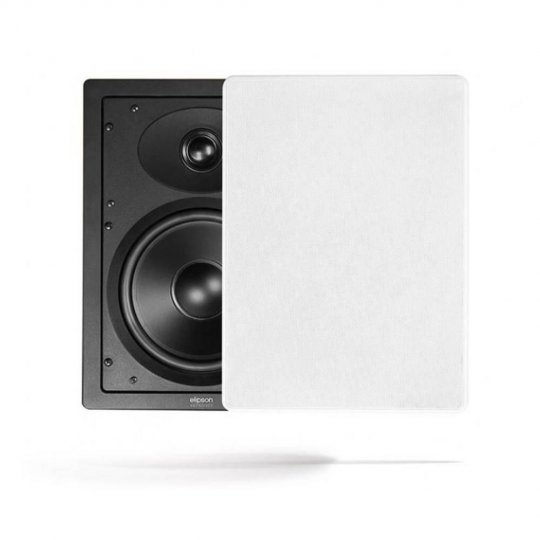

The Elipson IW8 in-wall speaker features a 2-way low-mid driver (21 cm) composed of cellulose fiber and
two silk dome tweeters (25 mm) which can be adjusted in order to direct sound waves toward the listening area.
The speaker's white, magnetic grille may be painted to ensure perfect integration with your interior decor.
The IW8 speaker has a sensitivity rating of 87 dB and a maximum power handling of 125 W. With a frequency
response ranging from 55 Hz to 20 kHz, this model is an ideal front channel or surround effects speaker for a
home theater installation.
Specifications:
- Speaker: Wall recessed
- Number of ways: 2
- Tweeter (high): 25 mm Neodymium silk dome, orientation 35 to 40 ° in all directions
- Grave: 210 mm paper cone, rubber edge
- Recommended amplifier: 125 W
- Frequency response (± 3 dB): 55 Hz - 20 kHz
- Cutoff frequency: 2100 Hz
- Sensitivity: 87 dB / 1W / 1m
- Impedance: 8 Ohms
- Dimensions (W x H x D): 270 x 370 x 88 mm
- Cutout dimension (W x H): 225 x 328 mm
- Weight: 1.5 kg
