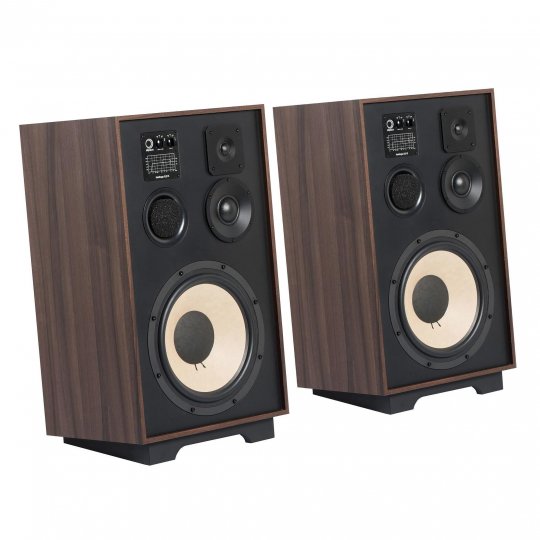

Elipson Heritage XLS 15

A resolutely vintage and modular aesthetic code thanks to its two supplied bases. But beyond its aesthetic, its musicality comes first.

This compact 3-way loudspeaker tuned in bass reflex design with front-firing flared port benefits from a new 30 cm diameter cellulose woofer with a powerful magnet, a new 55mm diameter treated dome midrange covering nearly three octaves and finally a 22mm diameter silk dome tweeter declined from the famous tweeter from our flagship model of the Prestige Facet series.

A fine amplitude of 2dB allows you to adjust the mid and high frequencies levels according to your listening room or auditory affinity. In addition, it is possible to insert a base 7° tilt (supplied) for perfect acoustic phasing or on an optional metal stand that raises it by 19 cm in addition to this inclination. Energy and control of the bass, definition and relief of the midrange, delicacy and extension of the high frequencies characterize the sonic pleasure of this Elipson Heritage XLS15 loudspeaker.

TECHNICAL

• Type : Compact loudspeaker 3 way
• Tweeter : Silk dome 0.87''
• Medium : Coated dome 2.2''
• Grave : Cellulose pulp 12''
• Bass reflex : Front firing
• Frequency response : 40 Hz - 25 kHz +/- 3 dB
• Cut-off frequencies : 700 & 5000 Hz
• Sensibility : 92 dB / 1m / 1w
• Impedance : 6 Ohms
• Recommanded amplification : 50-200 W
• Power (RMS) : 200 W

DIMENSIONS

• Dimensions : W x H x D : 420 x 730/700 x 339 mm
• Weight : 28 kg

PACKAGING

• Dimensions inner box : W x H x D : 845 x 535 x 455 mm
• Dimensions outer box : W x H x D : 875 x 555 x 475 mm
• Conditionned by unit
• Gross weight : 34,5 kg

GOOD TO KNOW

• Designed and engineered in France
