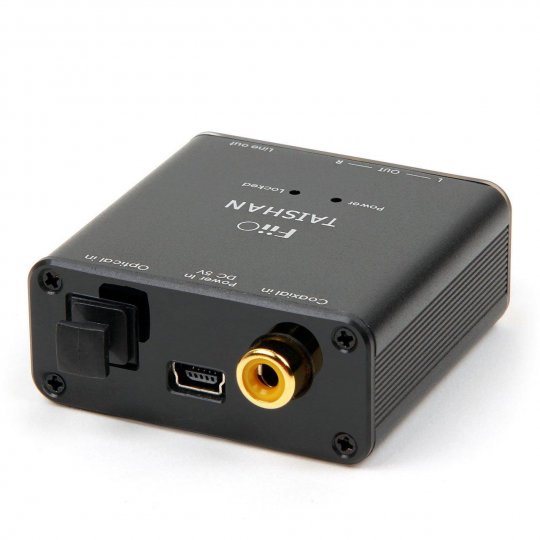

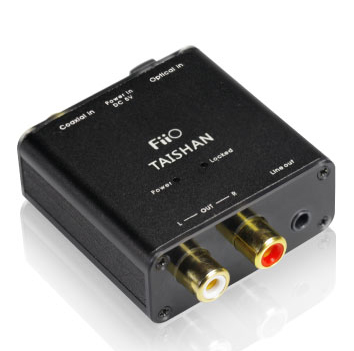

FiiO D03K TAISHAN Digital Audio DAC (PCM Stereo)

Secure One-Page Checkout


FiiO Authorised
This product is brand-new and factory sealed FiiO D03K  Low Stock : Order Soon 34.99
EAN : 6953175750376  5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back Curbside pick up available in Richmond Hill, Ontario.
Shipping : Anywhere for $6.99 Order Now : Ships Mon

Instant rebate with code BIGFLY Ends in

$12/mo suggested payments with 3 month special financing now with Flexiti.Apply once, shop anytime with Flexiti!

Digital Audio Analog Converter TAISHAN DO3K

TAISHAN-DO3K is a digital audio analog converter. which can transfer digital audio (optical/coaxial) to two channels analog audio and output (but using directly on headphone is not recommended). just suitable for using together with the devices such as digital television. CD/DVD/Blue-ray player etc, which with coaxial or optical digital signal output.

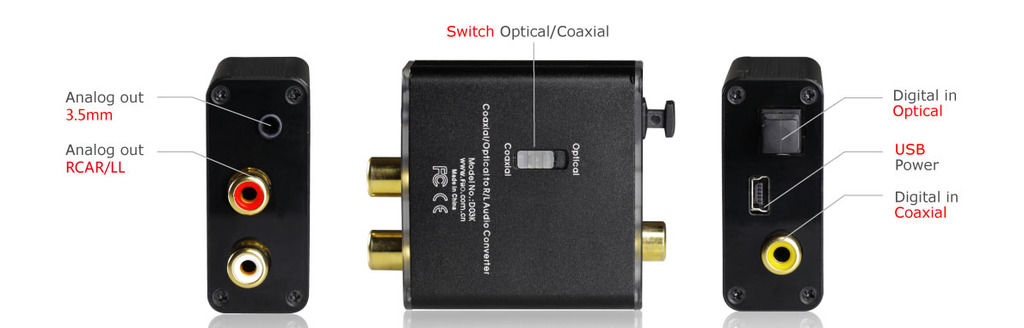

Switch Optical/Coaxial

  • Support 192KHZ/24bit audio signal
  • Optical/coxial optional input
  • Two sound channels stereo RCA audio output
  • Standard 3.5mm sound output
  • Indication for digital receiving status(LOCKED)
  • MINI USB power supply port
  • Support PCM format, don't support DOLBY and DTS format

Application of the Environment

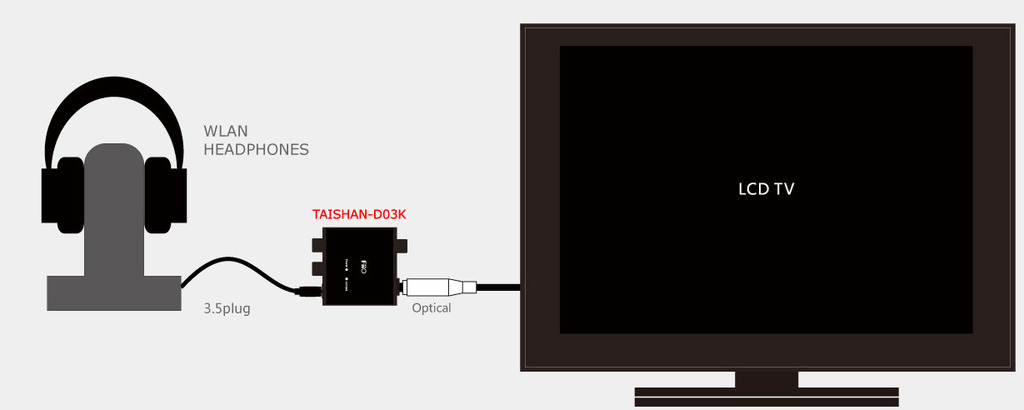

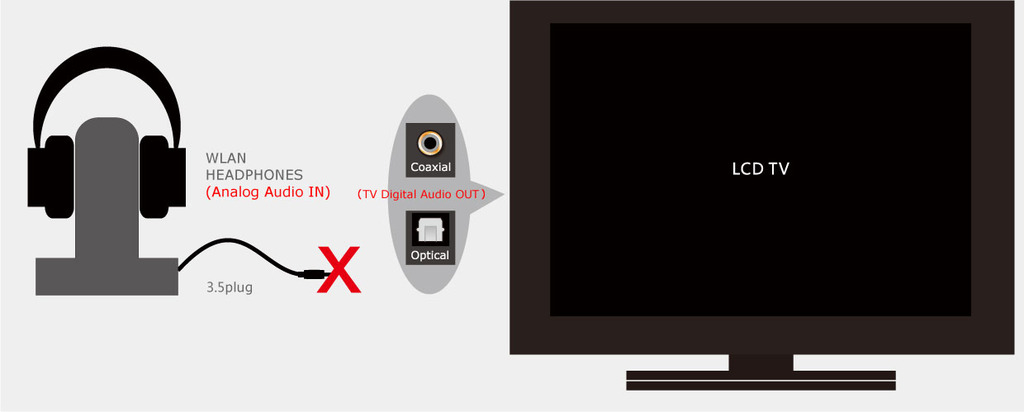

When using WLAN headphones in the living room, customers feel confused that transmitter of wireless headphone can't connect with the TV, which lies in the different connectors of these two equipments. The common connectors of the transmitter is 3.5MM analog input, whereas, many digital TVs don't have analog output connectors.

In this condition, of course we need something to transform it. FiiO TAISHAN-DO3K have this function. TV digital signal can input the WLAN headphones equipments after being transformed.

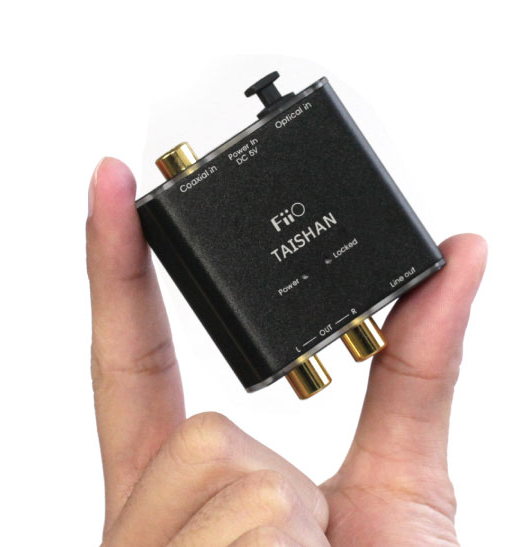

Small and exquisite appearance


  • Model Name: TAISHAN-D03K
  • Audio Input: Coaxial/Optical
  • Volume Control: N/A
  • Drive ability: Speaker(recommend)
  • Battery Capacity: N/A
  • Sample Rate Support: 192 kHz/24 bit
  • THD: <0.008% (1 kHz)
  • Frequency Response: 20 Hz~20 kHz
  • Input Sensitivity: N/A
  • Crosstalk: >85 dB (1 kHz)
  • Gain: 3.6 dB
  • Max Output Voltage: N/A
  • Headphone Output: 3.5 mm stereo Jack
  • Bass Boost: N/A
  • Power input: Recommend DC5V 500mA
  • Battery Life: N/A
  • Charging Time: N/A
  • Output Impedance: N/A
  • SNR: >95 dB
  • Max Input Level: N/A
  • Channel imbalance: N/A
  • Bass Boost Range: N/A
  • Max Output Current: N/A
  • Dimensions: 61.6 mm x 49.1 mm x 21 mm
  • Weight: 50 g
