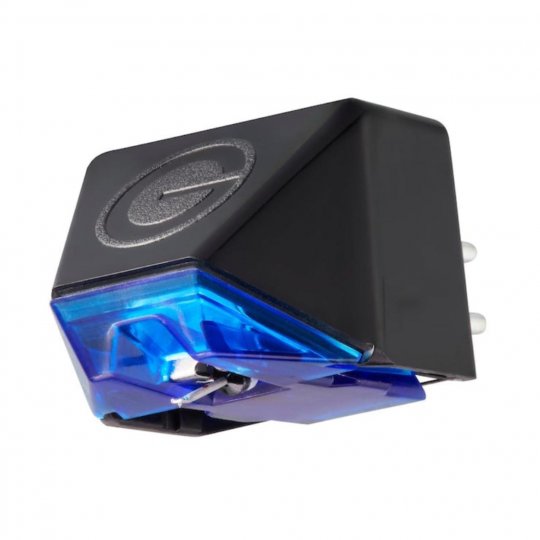

Discover the Goldring E4 Moving Magnet Cartridge
Experience the pinnacle of audio excellence with the Goldring E4 Moving Magnet Cartridge, the flagship offering from the renowned E Series. Engineered to be the ultimate upgrade for modern budget and midrange turntables, the E4 cartridge showcases Goldring's commitment to innovation and superior performance.
Crafted for compatibility with medium-to-high-mass tonearms commonly found on budget to midrange turntables, the E4 cartridge's exceptional design draws from the high-quality core shared by other E Series models. Whether upgrading from an outdated cartridge or enhancing an existing E Series unit, the E4 delivers unparalleled audio quality.
Key Highlights:
- Advanced super-elliptical nude diamond stylus offers reduced effective tip mass, enhanced rigidity, and superior high-frequency detail retrieval compared to 'bonded' elliptical alternatives.
- Hollow aluminum cantilever combines lightweight design with superior stiffness, enabling accurate tracing of medium-to-high frequencies.
- Magnetic Duplex Technology™ ensures precise stereo groove transcription for an improved soundstage.
- Expert adjustment feature enables micro-adjustments during production, guaranteeing optimal channel balance and crosstalk settings.
Unveiling the Super-Elliptical Nude Diamond Stylus
The E4 cartridge boasts a 'nude' super-elliptical stylus measuring only 7.6 x 18 microns (0.3 x 0.7 mil). Carved and polished from a single diamond piece, this design results in reduced effective tip mass, increased rigidity, and significantly improved high-frequency detail retrieval compared to 'bonded' elliptical stylus alternatives. The refined 7.6-micron profile ensures accurate tracking of high-frequency groove modulations, providing lower distortion, enhanced transient response, and a flat frequency response for unrivaled fidelity.
Technical Specifications:
- Frequency Range: 20 Hz – 20 kHz
- Channel Balance: < 1.5 dB @ 1 kHz
- Channel Separation: > 20 dB @ 1 kHz
- Sensitivity: 3.5 mV (1 kHz @ 5 cm/s)
- Static Compliance: 20 mm/N
- Vertical Tracking Angle: 20°
- Stylus Radius: 7.6 micron (0.3 x 0.7 mil)
- Stylus Type: Nude elliptical
- Load Resistance: 47 kΩ
- Load Capacitance: 100 – 200 pF
- Internal Inductance: 400 mH
- Internal Resistance: 410 Ω
- Cartridge Mass: 6.9 g
- Fixing Centre: 12.7 mm (0.5 in)
- Playing Weight: 1.5 – 2.5 g (1.75 g recommended)
