Receiver-RX2;

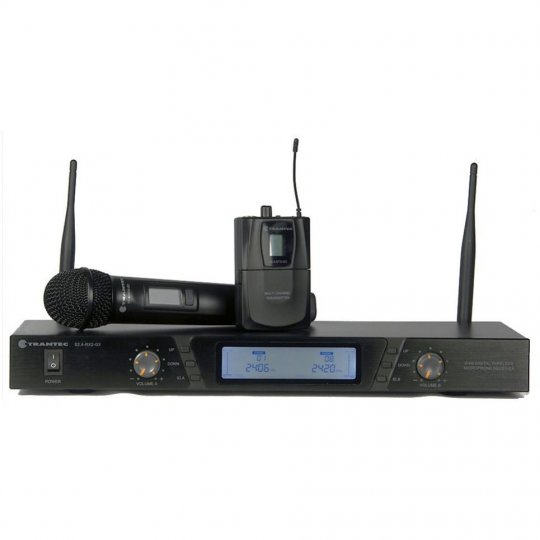

S2.4 Series 16 Channel Digital Wireless System, 2 Ch. Dual Receiver with LCD. Up to 2 simultaneous channels, Can transmit up to a distance of 30m, This dual receiver system comes with one beltpack transmitter and one Handheld Transmitter.

Beltpack Transmitter - BTX;

Credit card sized beltpack with Simple programming of transmitter with built in infrared data link.

Frequency and power lock facility. Clear and intuitive LCD display Detachable antenna and professional metal enclosure.

Handheld Transmitter-HDX;

Simple programming of transmitter with built-in infra-red data link and frequency and Power lock facility.

Clear and intuitive LCD display with professional metal enclosure, and battery life of approx 5 hours.

Specifications:

Dual Receiver:

• Carrier Frequency: 2.404-2.474 GHz
• Available Channels: 16
• Band Range: 2MHz
• Output: Unit has a Mic A and B XLR -38 db out, As well as a line level A/B Mix ¼" out.
• Dynamic Range: 85dB
• Total Harmonic Distortion: <0.1%
• Power Supply: DC17V
• Consumption Power: 2W
• Signal to Noise Ratio: >95dB
• Receiving Sensitivity: -80dBm

Beltpack Transmitter:

• RF Carrier Power: 10MW
• Modulation System: GFSK
• Ultraharmonics: <20dB
• Power Supply: 2 x AA battery
• Battery Life: Approx. 5 hours

Handheld Transmitter:

• RF Carrier Power: 10mW
• Modulation System: GFSK
• Ultraharmonics: <20dB
• Power Supply: 2 x AA battery
• Battery Life: Approx. 5 hours
