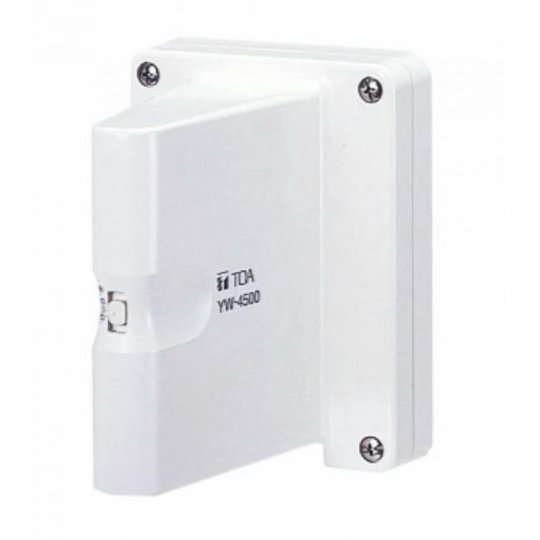

TOA YW-4500 Wall Mounted Wireless Antenna

Secure One-Page Checkout

$259.00

TOA Authorised
TOA YW-4500 Special Order 259
UPC : TBD 5% Price Promise
Warranty : 1yr Manufacturer Special Order Return Policy
Shipping : FREE in Canada Shipping in approx 3 Days





The wireless antenna YW-4500 has been designed for UHF band wireless system. Cable loss can be compensated for by a built-in RF signal booster. The YW-4500 in a dipole antenna designed to be installed in doors. Use the coaxial cable with 75 Ω impedance.

Specifications:

  • Power Source: 7 - 12 V DC (supplied from amplifier or tuner)
  • Current Consumption: 15 mA or less
  • Receiving Frequency: 550 - 932 MHz, UHF
  • Dipole Ratio Relative Gain: 8 dB or more (780 MHz)
  • VSWR: 3.0 or less
  • Output Impedance: 75 Ω
  • Mounting Hole Pitch: 83.5 mm (dimensions for wiring box)
  • Operating Temperature: -10 °C to +50 °C
  • Operating Humidity: 30 ° to 85 °RH (no condensation)
  • Finish: AES resin, off-white
  • Dimensions: 105 (W) x 140 (H) x 126 (D) mm
  • Weight: 270 g
  • Accessory: M3.5 screw for wiring box x 2, Tapping screw (M4) for wooden wall x 2,
  • RG-6/U or RG-11/U sleeve x 1
