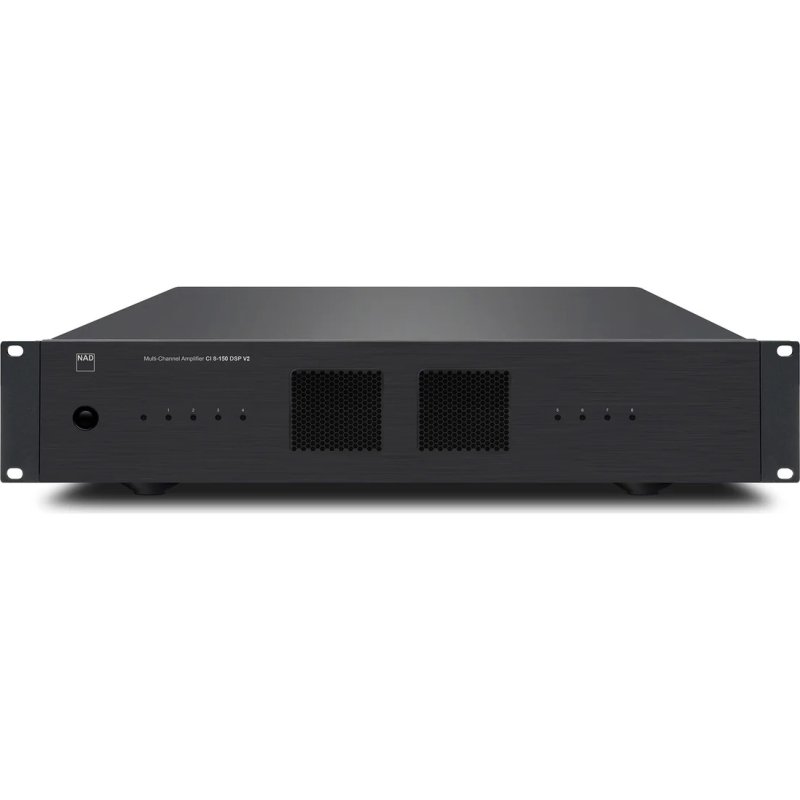

NAD CI 8-150 DSP v2 8-Channel Network-Controlled Distribution Amplifier

The NAD CI 8-150 DSP v2 is a high-performance network-controlled distribution amplifier designed for custom installation and rack-mounted audio systems. NAD's HybridDigital nCore amplification delivers eight channels of powerful, refined amplification while maintaining the stability and durability required for demanding multi-zone installations.

The CI 8-150 DSP v2 delivers more than 150 watts per channel into 8 ohms with all channels driven and can be bridged to create four high-power amplifier channels delivering more than 280 watts each into 8 ohms. Its high-current design is engineered to handle difficult speaker loads and long speaker cable runs while maintaining detailed, low-distortion reproduction.

Network connectivity allows installers to configure and monitor the amplifier through NAD's custom web interface. The updated v2 platform introduces an improved dashboard with channel-level input, temperature and operational status monitoring, along with zone grouping and more flexible Global Input assignment.

Integrated DSP provides extensive system tuning capabilities including parametric EQ, high-pass and low-pass filters, limiters, delay, tilt and phase control. The v2 platform also supports DSP speaker profiles for optimizing compatible architectural speakers and provides the flexibility required for applications including passive subwoofer amplification.

Features:

• 8-channel network-controlled distribution amplifier
• HybridDigital nCore amplification
• 8 x 150W output into 8 ohms
• Bridgeable to 4 x 280W into 8 ohms
• Custom web UI for configuration, DSP calibration and IP control
• Dashboard with channel-level input, temperature and operational status monitoring
• Zone grouping for simplified multi-zone configuration
• Assignable Global Input interruption by zone
• Parametric EQ
• High-pass and low-pass filters
• Limiters, delay, tilt and phase control
• Support for DSP speaker profiles
• Dual global inputs and outputs
• 2 optical digital inputs
• 2 coaxial digital inputs
• 12V trigger input
• IR input and output
• Auto-sense turn-on
• Universal AC power supply
• 0.5W standby mode
• 3W network standby
• Supports speaker cable up to 10 AWG
• Snap-on Phoenix speaker connectors
• 2U rack-mount design

Specifications:

• Continuous Output Power into 8Ω: >150W, 20Hz–20kHz, all channels driven
• Continuous Output Power into 8Ω: >180W, 20Hz–20kHz, two channels driven
• Continuous Output Power into 4Ω: >180W, 20Hz–20kHz, all channels driven
• Continuous Output Power into 4Ω: >300W, 20Hz–20kHz, two channels driven
• Continuous Output Power, Bridged 8Ω: >280W, 20Hz–20kHz, all channels driven
• Continuous Output Power, Bridged 8Ω: >500W, 20Hz–20kHz, two channels driven
• THD: <0.02% (1W–120W, 8Ω and 4Ω)
• Signal-to-Noise Ratio: >90dB A-weighted
• Clipping Power into 8Ω: >160W
• Clipping Power into 4Ω: >200W
• Clipping Power, Bridged 8Ω: >300W, all channels driven
• Clipping Power, Bridged 8Ω: >550W, two channels driven
• IHF Dynamic Power, 8Ω, All Channels Driven: 180W
• IHF Dynamic Power, 4Ω, All Channels Driven: 280W
• IHF Dynamic Power, 8Ω, Two Channels Driven: 200W
• IHF Dynamic Power, 4Ω, Two Channels Driven: 360W
• IHF Dynamic Power, Bridged 8Ω, All Channels Driven: 520W
• IHF Dynamic Power, Bridged 4Ω, All Channels Driven: 670W
• IHF Dynamic Power, Bridged 8Ω, Two Channels Driven: 600W
• IHF Dynamic Power, Bridged 4Ω, Two Channels Driven: 800W
• Peak Output Current: >26A (1Ω, 1ms)
• Damping Factor: >150 (8Ω, 20Hz–6.5kHz)
• Frequency Response: ±0.5dB (20Hz–20kHz)
• Channel Separation: >75dB @ 1kHz; >65dB @ 10kHz
• Maximum Undistorted Input Level: 3300mV
• Input Sensitivity: 1450mV for 150W into 8Ω
• Analog Input Audio Sense Threshold: 3 ± 0.5mVrms
• Trigger Input: 3–30V DC
• Standby Power: 0.5W
• Dimensions (W x H x D): 19 1/16 x 3 9/16 x 17 3/16" (483 x 90 x 435 mm)
• Shipping Weight: 38.8 lb (17.6 kg)
• Rack Height: 2U
