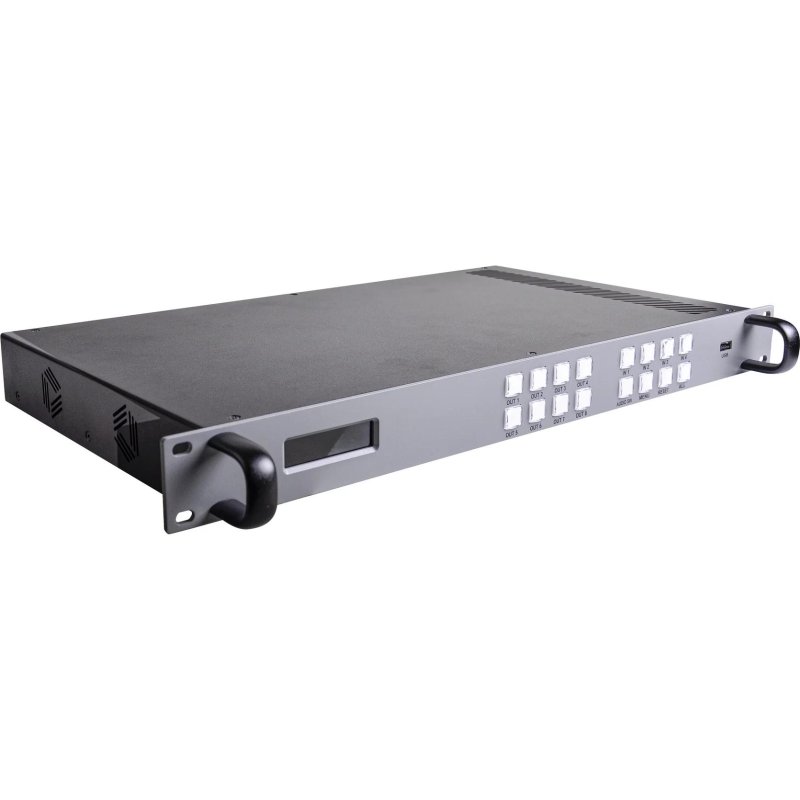

EVOssentials EVOView 1000-8 Commercial 4x8 HDMI Matrix / Video Wall

The EVOssentials EVOView 1000-8 is a commercial-grade 4K 4x8 matrix switcher with built-in video processing, designed for installations that require flexible source routing across multiple displays. Its 4x8 architecture allows four sources to be distributed to as many as eight displays from a single rack-mountable system.

With four built-in Android streaming sources, matrix and video wall operation, independent audio breakout, and commercial control connectivity, the EVOView 1000-8 consolidates a complex multi-display AV installation into one streamlined 1U component.

Features

• 4K 4x8 HDMI matrix switching for up to eight displays
• Built-in video processor for commercial multi-display installations
• Matrix, multiview, and video wall operating modes
• Four onboard Android streaming sources
• Supports Netflix, YouTube, Prime Video, Crave, and IPTV applications*
• Independent 3.5mm analog and Toslink audio breakout
• Bluetooth audio support
• 10Gb LAN connectivity for demanding commercial installations
• USB and RS-232 connectivity
• Multi-channel Bluetooth remote for independent source control
• 1U rack-mountable chassis
• Reduces the need for separate streaming boxes, processors, and switching hardware

Commercial Multi-Display Control

The EVOView 1000-8 is engineered for sports bars, entertainment venues, retail environments, commercial facilities, and other installations where multiple screens need to operate independently or together. Its four inputs can be routed across eight displays, while video wall functionality allows multiple screens to work together for larger visual presentations.

Built-In Streaming

Four onboard Android sources provide integrated access to popular streaming services and IPTV without requiring separate external streaming devices. Each source can be independently controlled using the included multi-channel Bluetooth remote.

Video Wall & Matrix Modes

Flexible operating modes allow the EVOView 1000-8 to adapt to a wide range of commercial applications. Individual displays can show separate content, sources can be distributed across multiple screens, or displays can be combined into a larger video wall for high-impact presentations.

Independent Audio

Dedicated audio breakout provides additional flexibility when integrating distributed audio systems, amplifiers, soundbars, or other external audio equipment. Available audio connections include 3.5mm analog, Toslink optical, and Bluetooth.

Specifications

• Model: EVO-VIEW1000-8
• Video Format: 4K
• Matrix Configuration: 4 Inputs x 8 Outputs
• Display Modes: Matrix, Multiview, Video Wall
• Built-In Streaming Sources: 4 Android Sources
• Streaming Support: Netflix*, YouTube, Prime Video*, Crave*, IPTV*
• Audio Breakout: 3.5mm Analog, Toslink Optical, Bluetooth
• Network: 10Gb LAN
• Control / Connectivity: USB, RS-232
• Remote Control: Multi-Channel Bluetooth Remote
• Form Factor: 1U Rack-Mountable

*Streaming services may require separate subscriptions or service accounts.
