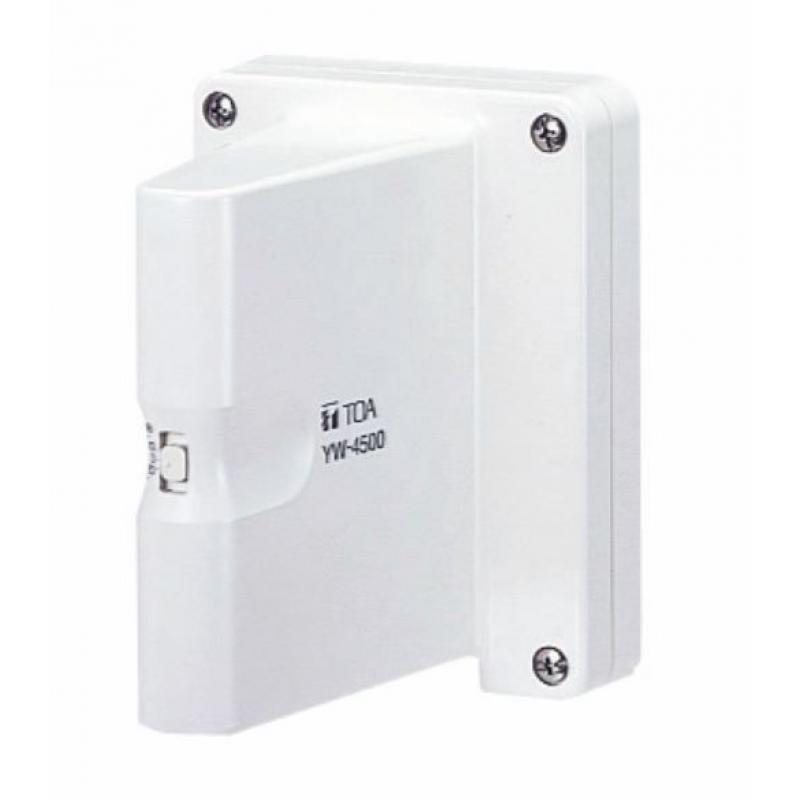

The wireless antenna YW-4500 has been designed for UHF band wireless system. Cable loss can be compensated for by a built-in RF signal booster. The YW-4500 in a dipole antenna designed to be installed in doors. Use the coaxial cable with 75 Ω impedance.
Specifications:
- Power Source: 7 - 12 V DC (supplied from amplifier or tuner)
- Current Consumption: 15 mA or less
- Receiving Frequency: 550 - 932 MHz, UHF
- Dipole Ratio Relative Gain: 8 dB or more (780 MHz)
- VSWR: 3.0 or less
- Output Impedance: 75 Ω
- Mounting Hole Pitch: 83.5 mm (dimensions for wiring box)
- Operating Temperature: -10 °C to +50 °C
- Operating Humidity: 30 ° to 85 °RH (no condensation)
- Finish: AES resin, off-white
- Dimensions: 105 (W) x 140 (H) x 126 (D) mm
- Weight: 270 g
- Accessory: M3.5 screw for wiring box x 2, Tapping screw (M4) for wooden wall x 2,
- RG-6/U or RG-11/U sleeve x 1
Product Details
- TOA YW-4500
-
Brand New : Factory Sealed
- EFLC : 6461
