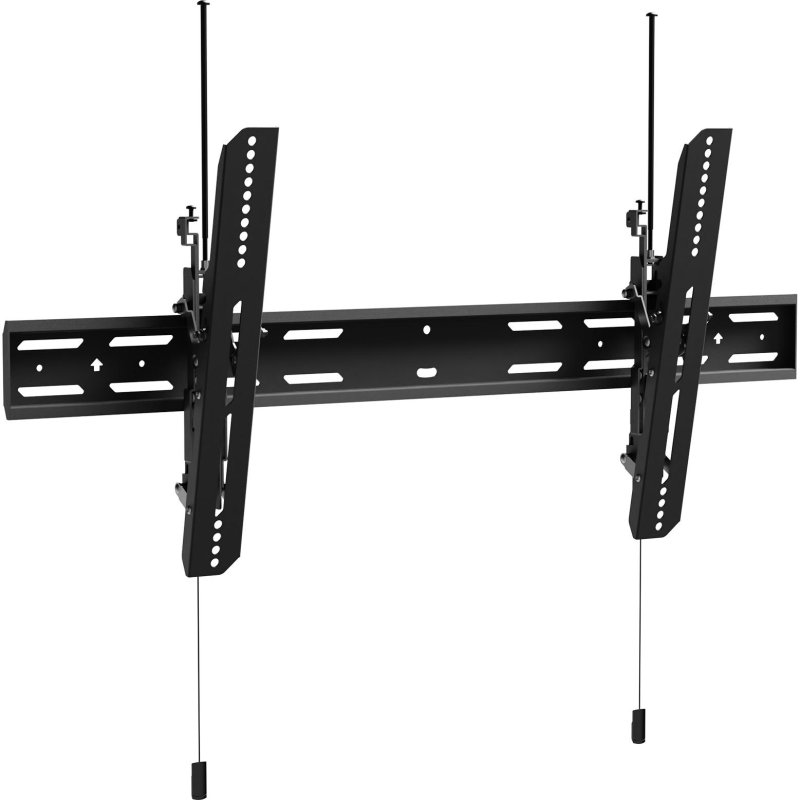

Kanto PT500 Tilting TV Wall Mount for 65" to 120" TVs

The Kanto PT500 is a heavy-duty tilting wall mount engineered for the next generation of extra-large displays. Designed for most TVs from 65" to 120", it supports screens weighing up to 250 lb (113 kg) and accommodates VESA mounting patterns from 100 x 100 mm to 800 x 400 mm.

The PT500 provides up to 12° of forward tilt to help reduce glare and improve the viewing angle while keeping the display just 1.4" (3.5 cm) from the wall. Its oversized 34.8" (88.4 cm) wall plate supports installation across multiple studs, while adjustable horizontal leveling and extended leveling screws help achieve precise screen alignment. :contentReference[oaicite:0]{index=0}

Features:

• Designed for Extra-Large TVs - Fits most televisions from 65" to 120".
• 250 lb (113 kg) Capacity - Heavy-duty construction supports displays weighing up to 250 lb (113 kg).
• 12° Forward Tilt - Tilt mechanism provides up to 12° of forward adjustment to help reduce glare and optimize the viewing angle.
• Low-Profile Design - Positions the TV just 1.4" (3.5 cm) from the wall.
• Wide VESA Compatibility - Accommodates VESA mounting patterns from 100 x 100 mm to 800 x 400 mm.
• Adjustable Horizontal Leveling - Allows fine adjustment for proper screen alignment after installation.
• Oversized Wall Plate - 34.8" (88.4 cm) dual-stud wall plate accommodates up to dual 24" stud spacing or triple 16" stud spacing.
• Quick-Release Cords - Allow easy removal of the TV from the wall mount.
• Security Torx Screws - Can be tightened to help prevent unauthorized removal of the display.
• Solid Steel Construction - Heavy-duty steel construction provides dependable support for large displays.
• Durable Powder-Coated Finish - Provides a durable finish suitable for home theatre and professional installations.
• Wood Stud or Concrete Installation - Includes mounting hardware for both wood stud and concrete installations.

Specifications:

Display Compatibility:

• Screen Size: 65" to 120"
• Maximum Weight Capacity: 250 lb (113 kg)
• VESA Compatibility: 100 x 100 mm to 800 x 400 mm

Mounting & Adjustment:

• Mount Type: Tilting
• Forward Tilt: Up to 12°
• Distance from Wall: 1.4" (3.5 cm)
• Horizontal Leveling: Adjustable
• Wall Plate Width: 34.8" (88.4 cm)
• Stud Compatibility: Up to dual 24" stud spacing or triple 16" stud spacing
• Installation: Wood Stud or Concrete
• TV Release: Quick-Release Cords
• Security: Security Torx Screws

Construction:

• Material: Solid Steel
• Finish: Durable Powder-Coated Finish

Dimensions & Weight:

• Product Dimensions (W x D x H): 34.8" x 1.4" x 21.5" (88.4 x 3.5 x 54.6 cm)
• Product Weight: 8.4 lb (3.8 kg)

Shipping Dimensions & Weight:

• Box Dimensions (L x W x H): 36.2" x 6.8" x 3.3" (91.9 x 17.3 x 8.4 cm)
• Shipping Weight: 11.2 lb (5.1 kg)

What's in the Box:

• Kanto PT500 Tilting TV Wall Mount
• Mounting Hardware for Wood Stud and Concrete Installation
• Manual

Warranty:

• Manufacturer Warranty: 5 Years
