Fixed TV Mount

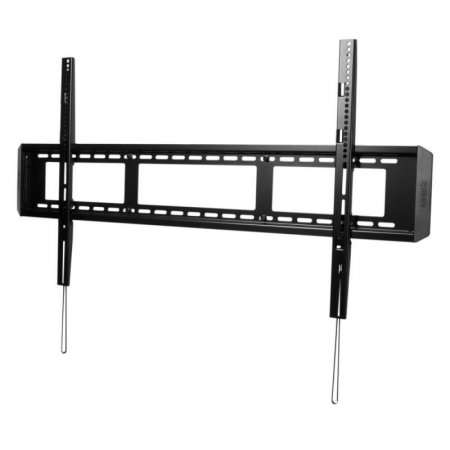

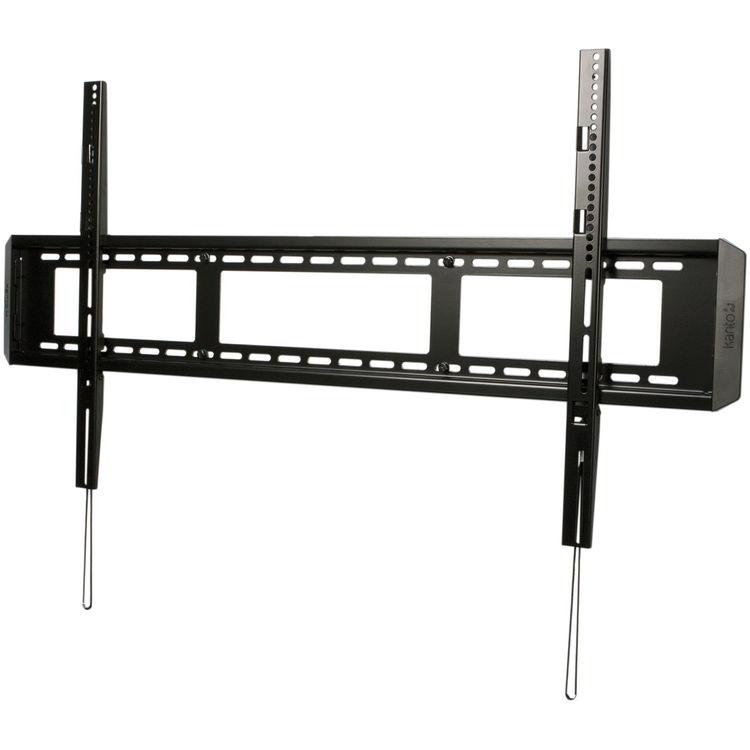

Now that you have a TV that is the envy of all your friends, the challenge is to get it up on the wall safely and securely. Introducing the F6080, a fixed mount for flat panel TVs from 60" to 100" that weigh up to 200 pounds. Support is provided by a solid steel infrastructure with a powder-coated finish. With VESA patterns to suit most TVs and a quick release feature to access connections and move your TV without having to move the mount, the F6080 is a great mounting solution.

Features:

Fits Vesa to 1100×600

The F6080 is compatible with a range of VESA patterns from 100×100 up to 1100×600, to support even the largest TVs.

Quick Lock Mechanism

The spring-loaded locks click neatly into place as you swing the bottom of your TV to the wall. Always within reach, the quick release cords extend below the mount and offer a quick and easy way to detach your TV from the mount and remove it from the wall. This makes it easy to install or remove cables at the back of your TV.

Horizontal Leveling Screws

Located on each of the vertical bracket arms is a leveling screw that is used to fine-tune the angle of your TV. If you notice that your TV is not completely level, use the leveling screws to make the necessary adjustments so that it's perfectly aligned.

Strong Wall Plate

The F6080 is designed with two rows of mounting slots for extra strength and, using up to six lag bolts on three studs, supports very heavy TVs up to 200 pounds. It provides some offset abilities depending on your TV size, allowing you to position your TV anywhere along the wall plate. Made of solid steel, the 47" wall plate mounts on either three 16" studs or two 24" studs.

Attractive End Caps

Now you can have style and function with smooth, polished end caps that cover the ends of your mount and give you a clean, modern look.

Specifications:

• TV Sizes: 60" to 100"
• Weight Allowance: 200 lb (91 kg)
• VESA Sizes: 100×100 to 1100×600
• Wall Plate: 47" (119.4 cm); Accommodates three studs with up to 16" spacing, or offsetting on 24" stud centers
• Profile: Sits 1" (2.5 cm) from the wall
• Material: Solid steel with durable powder coated finish and adjustable horizontal leveling
• Includes: Installation Manual; All mounting hardware for wood stud and concrete installation
• Product weight: 11 lb (5 kg)
