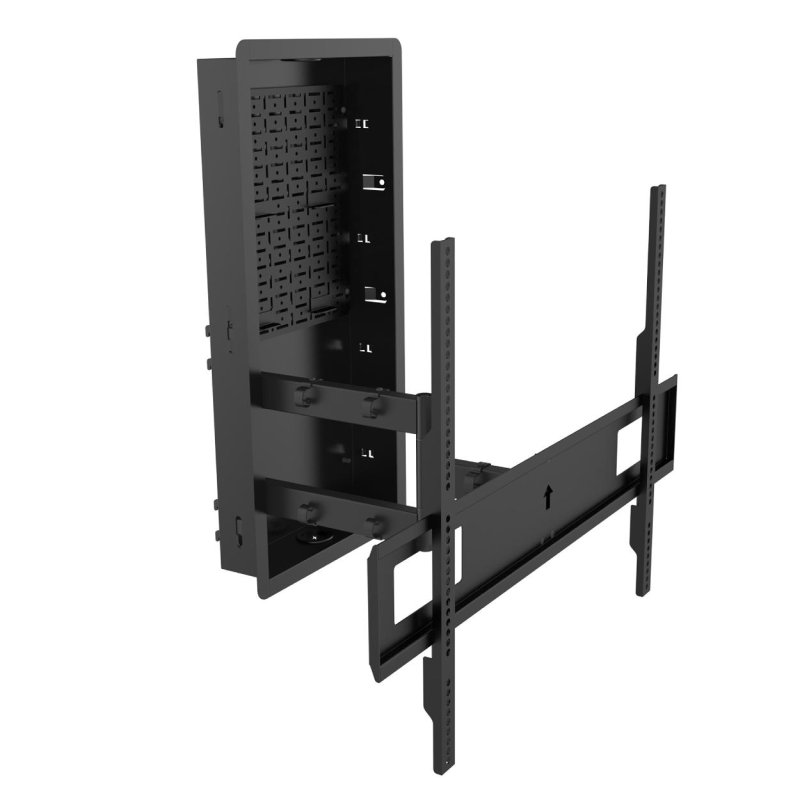

Kanto R600 Full-Motion Recessed In-Wall TV Mount for 65" to 90" TVs

The Kanto R600 Full-Motion Recessed TV Mount combines an articulating TV mount with an oversized in-wall box, creating a clean installation while providing space to conceal cable set-top boxes, TV breakout boxes, mini AV receivers and other components behind your display. An included accessory plate provides convenient access to installed components for servicing.

Designed for most 65" to 90" TVs weighing up to 135 lb (61 kg), the R600 supports VESA patterns from 100 x 100 to 800 x 600 mm. Two TV mounting interfaces provide installation flexibility: VESA patterns of 300 x 300 mm and smaller can sit flush against the wall, while 400 x 400 mm and larger patterns sit just 1.1" (2.8 cm) from the wall. :contentReference[oaicite:0]{index=0}

Features:

• Recessed Full-Motion Design - Combines an articulating TV mount with an oversized in-wall enclosure for an exceptionally clean installation.
• 65" to 90" TV Compatibility - Fits most TVs from 65" to 90" weighing up to 135 lb (61 kg).
• Wide VESA Compatibility - Supports VESA mounting patterns from 100 x 100 to 800 x 600 mm.
• No-Gap Installation - TVs using VESA patterns of 300 x 300 mm and smaller can sit flush against the wall.
• Low-Profile Large-VESA Installation - VESA patterns of 400 x 400 mm and larger sit just 1.1" (2.8 cm) from the wall.
• Up to 18.7" Extension - Articulating arms extend the TV up to 18.7" (47.5 cm) from the wall.
• ±90° Swivel - Swivels up to 90° in either direction, depending on screen size.
• +10° to -2° Tilt - Accessible tilt mechanism allows the vertical viewing angle to be adjusted after installation.
• Adjustable Horizontal Leveling - Helps achieve precise screen positioning and alignment.
• Oversized In-Wall Box - Provides concealed space for bulky TV breakout boxes, cable set-top boxes, mini AV receivers and other components.
• Removable Accessory Plate - Provides a convenient mounting location for components while allowing easy removal for servicing.
• Contractor-Friendly New Construction Design - Foldable in-wall template can be installed between studs during cabling and drywall work while the mount remains protected in its packaging.
• In-Wall Power Provision - Metal knockouts allow power outlets to be installed inside the recessed enclosure.
• Integrated Cable Management - Metal cable clips along the articulating arm and rubber grommets inside the enclosure help organize and route cabling.
• Solid Steel Construction - Durable steel construction with a powder-coated finish provides dependable support for large displays.

Specifications:

Display Compatibility:

• Screen Size: 65" to 90"
• Maximum Weight Capacity: 135 lb (61 kg)
• VESA Compatibility: 100 x 100 to 800 x 600 mm
• Flush-Mount VESA Compatibility: 300 x 300 mm and Smaller

Mounting & Adjustment:

• Mount Type: Full-Motion Recessed In-Wall
• Tilt: +10° to -2°
• Swivel: Up to ±90°, Depending on Screen Size
• Maximum Extension: 18.7" (47.5 cm)
• Distance from Wall with 400 x 400 mm and Larger VESA: 1.1" (2.8 cm)
• Horizontal Leveling: Adjustable
• In-Wall Box Installation: Designed for 16" Stud Spacing
• Wall Installation: Wood Stud

In-Wall Enclosure:

• Enclosure Type: Oversized Recessed In-Wall Box
• Component Mounting: Removable Accessory Plate
• Power Access: Metal Knockouts for Installation of Power Outlets
• Cable Routing: Rubber Grommets
• Arm Cable Management: Metal Cable Management Clips
• Additional Cable Management: Zip-Tie Mounting Points

Construction:

• Material: Solid Steel
• Finish: Durable Powder-Coated Finish

Dimensions & Weight:

• Maximum Extension: 18.7" (47.5 cm)
• Large-VESA Wall Profile: 1.1" (2.8 cm)
• Product Weight: 45.2 lb (20.5 kg)

Shipping Dimensions & Weight:

• Shipping Box Dimensions: 36.8" x 20.7" x 5.7" (93.5 x 52.5 x 14.5 cm)
• Shipping Weight: 48.5 lb (22 kg)

Product Information:

• Model: R600
• UPC: 800152721668
• Manufacturer Warranty: 10 Years

What's in the Box:

• Kanto R600 Full-Motion Recessed TV Mount
• 300 x 300 mm VESA Plate
• 800 x 600 mm VESA Interface
• Accessory Plate
• Foldable New-Construction Box / Template
• Wood-Stud Mounting Hardware
• Manual
