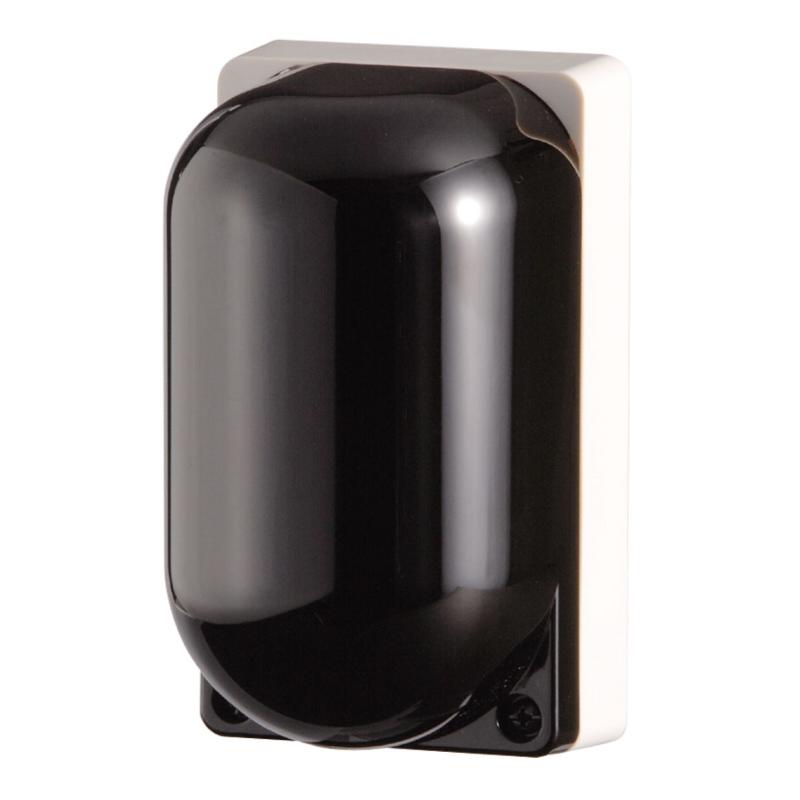

The IR-500R Infrared Wireless Receiver is designed for use with the IR-702T Infrared Wireless Tuner. It can be mounted to a wall or an electrical box.
Specifications:
- Power Source: 24 V DC (supplied from the IR-702T)
- Current Consumption: Max. 40 mA
Infrared Detector:
- Wavelength: 870 nm
- Carrier Frequency: Channel A: 3.100 MHz, Channel B: 3.350 MHz
- Reception Angle: Vertical: 80° (up to 30° movable downward), Horizontal: 80° (up to 30° movable left or right)
- Communication Area: Approx. 15 m (50 ft) in a space without any obstacles
- Connection Terminal: 75 Ω, BNC jack
- Operating Temperature: 0 °C to +40 °C (32 °F to 104 °F)
- Operating Humidity: 30 % to 85 %RH (no condensation)
- Finish: Filter section: Polycarbonate, optical cut filter, Base: ABS resin, off-white
- Dimensions: 70 (W) x 120 (H) x 72 (D) mm (2.76" x 4.72" x 2.83")
- Weight: 220 g (0.49 lb) (unit only)
Product Details
- TOA IR-500R
-
Brand New : Factory Sealed
- EFLC : 6514
