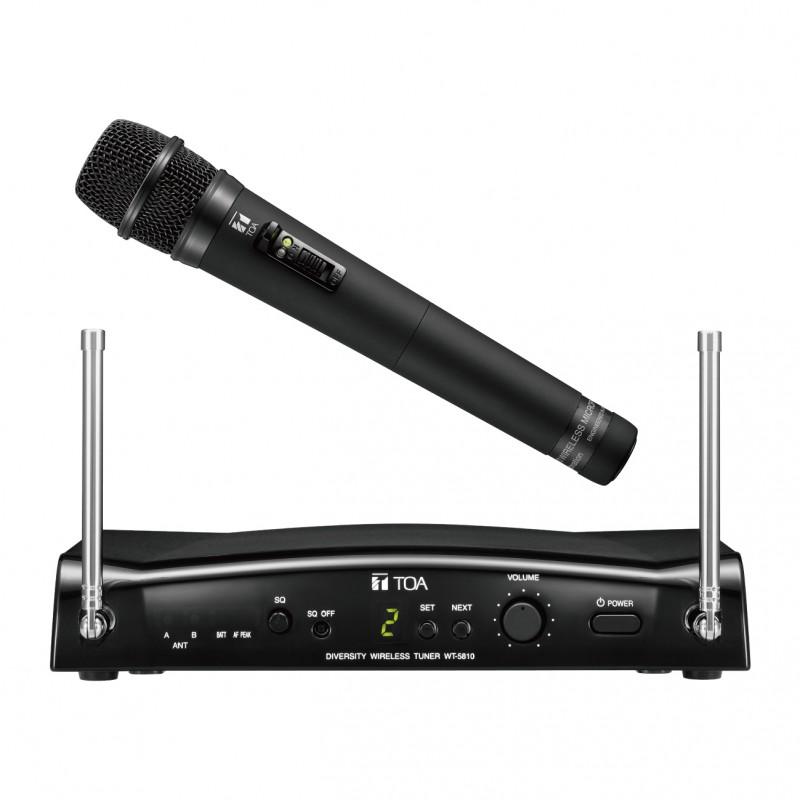

The WS-5225 includes a handheld wireless microphone WM-5225 and a diversity wireless tuner WT-5810. The WM-5225 wireless microphone employs an electret condenser microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.
Specifications:
- Product Composition: Handheld wireless microphone WM-5225 x 1, Diversity wireless tuner WT-5810 x 1
- Frequency Range: 576 - 865 MHz (*1), UHF
- Tone Frequency: 32.768 kHz
- Operating Temperature: -10 ° Cto +50 ° C(14 °F to 122 °F)
- Accessory: AC adapter (*2) x 1, Screw driver x 1, Microphone holder W3/8 (with stand adapter) x 1," Strage case x 1
Wireless Microphone
- Microphone Element: Electret condenser microphone unit: Unidirectional
- Modulation: Frequency modulation
- Channel Selectable: 64 channels (the number of channels may differ from country to country)
- RF Carrier Power: Less than 50 mW (Factory preset 10 mW ERP)
- Oscillator: PLL synthesized
- Maximum Input Level: 126 dB SPL
- Maximum Deviation: ±40 kHz
- Audio Frequency Response: 100 Hz - 15 kHz
- Battery: WB-2000 rechargeable battery (option) or AA alkaline dry cell battery
- Battery Life: Approx. 13 h (when the WB-2000 rechargeable battery is used), Approx. 10 h (when the alkaline battery is used)
- Indicator: Power/Battery lamps
- Antenna: Built-in type
- Dimensions: Φ43.6 x 231.5 mm (Φ1.72 x 9.11")
- Weight: 180 g (0.4 lb) (with battery)
Diversity Wireless Tuner
- Power Source: AC mains (supplied AC adapter must be used)
- Power Consumption: 130 mA (12 V DC)
- Channel Selectable: 16 channels
- Receiving System: Double super-heterodyne
- Diversity System: Space diversity
- Mixing Output: MIC: -60 dB (*1), 600 Ω, balanced, XLR-3-32 type connector, LINE: -20 dB (*1), 600 Ω, unbalanced, phone jack
- Mixing Input: -20 dB (*1), 10 kΩ, unbalanced, phone jack
- Antenna: Whip antenna
- Receiving Sensitivity: 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
- Squelch Sensitivity: 16 - 40 dBμV variable
- Squelch System: Using together of noise SQ, carrier SQ and tone SQ
- Indicator: ANT A/B, Audio (peak), Battery alarm, Channel number
- Channel Check: Usable frequencies scanning
- Signal to Noise Ratio: 104 dB or more (A-weight, unbalanced output)
- Harmonic Distortion: 1 % or less (typical)
- Frequency Response: 100 Hz - 15 kHz, ±3 dB
- Dimensions: 206 (W) x 40.6 (H) x 152.7 (D) mm (8.11 x 1.6" x 6.01") (excluding antenna)
- Weight: 590 g (1.3 lb)
Product Details
- TOA WS-5225 H01US
-
Brand New : Factory Sealed
