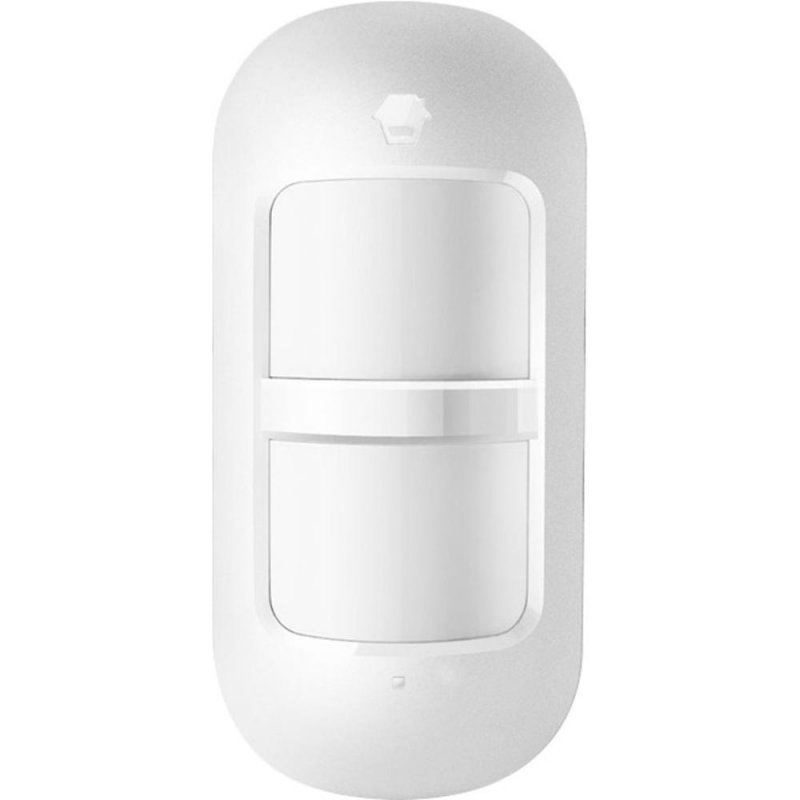

The MD9100 adopts special infrared probe technique and an intelligent analysis algorithm, to effectively distinguish between interference signals and body movements and prevent false alarms caused by pets. The automatic temperature compensation and anti-draft technology helps the MD9100 adapt to a variety of environments. The MD9100 is environmental friendly and energy efficient as well as being reliable and easy to use. Users will receive low voltage alarm messages/notifications when pairing the MD9100 with smanos GSM or Wi-Fi Alarm Systems.

Specifications:

• Power Supply: DC 3V (AA 1.5V LR6 battery x 2pcs)
• Static Current: < 50 uA
• Alarm Current: < 9.5 mA
• Detection Range: 9 m/110°
• Pet Immunity: <20 kgs
• Transmitting Distance: <80 m (in open area)
• Housing Material: ABS Plastic
• Radio Frequency: 868 MHz or 915 MHz (±75 KHz)
• Dimensions Detector:108 x 52 x 36.8 mm (L x W x H)
• Dimensions Bracket:52 x 30 x 26.5 mm (L x W x H)

Operation Condition:

• Temperature: -10°C~+55°C
• Relative Humidity: < 80% (no condensing)
