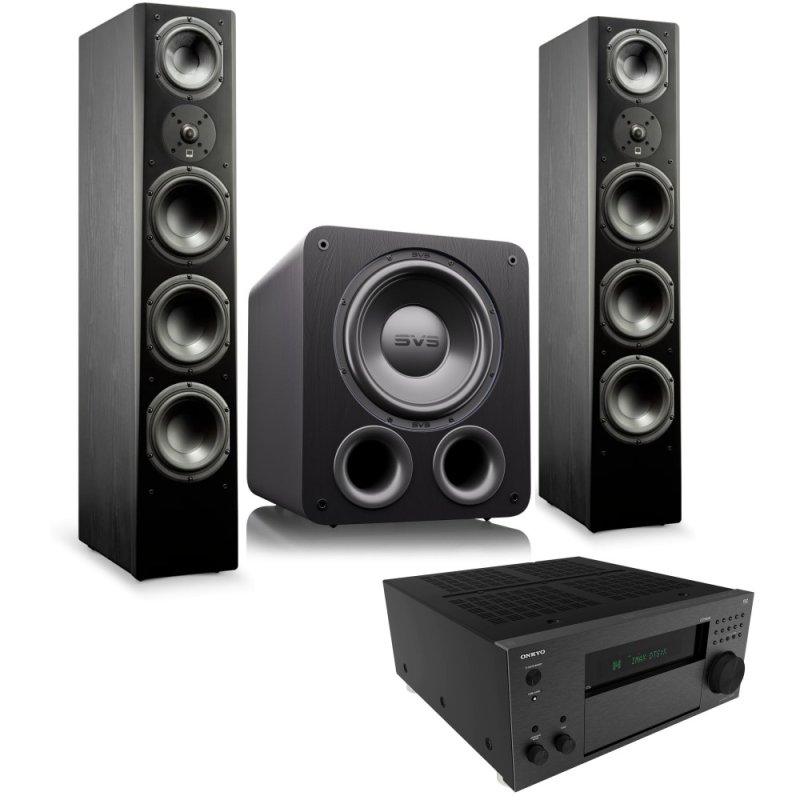

Onkyo TX-RZ70 & SVS Prime Pinnacle / PB-3000 R|Evolution Premium Home Theatre System Bundle BLACK

Build a powerful premium home theatre system around the Onkyo TX-RZ70 11.2-channel network AV receiver, a pair of SVS Prime Pinnacle floorstanding loudspeakers, and the SVS PB-3000 R|Evolution ported subwoofer.

The TX-RZ70 provides 11 amplified channels rated at 140 watts into 8 ohms, along with Dolby Atmos, DTS:X, IMAX Enhanced, THX certification, Dirac Live room correction, HDMI 2.1, 8K/4K video support, and extensive music-streaming capabilities.

SVS Prime Pinnacle floorstanding speakers combine a 1-inch aluminum dome tweeter, 5.25-inch composite glass-fiber midrange driver, and three 6.5-inch woofers per speaker for detailed music reproduction, expansive imaging, and powerful home theatre dynamics. The PB-3000 R|Evolution adds deep, room-energizing bass through a 13-inch high-excursion driver powered by a 1,200W RMS Class D amplifier.

Bundle Includes

• 1 × Onkyo TX-RZ70 Premium 11.2 Channel Network AV Receiver BLACK - Open Box
• 1 × SVS Prime Pinnacle Floorstanding Loudspeaker (Pair) BLACK ASH - Open Box
• 1 × SVS PB-3000 R|Evolution Series Subwoofer BLACK ASH - Open Box

Features

• Onkyo TX-RZ70 11-channel Class AB amplification rated at 140W × 11 into 8 ohms
• 7.2.4-channel processing with 11 amplified channels
• Dolby Atmos, Dolby Surround, DTS:X, Neural:X, IMAX Enhanced and Auro-3D support
• THX Certified for Theater Reference Sound
• Dirac Live room correction with optional Dirac Live Bass Control
• HDMI 2.1 with 8K/4K Ultra HD, Dolby Vision, HDR10+, VRR, QFT and ALLM support
• AirPlay 2, Chromecast built-in, Spotify, Amazon Music HD, Tidal, Deezer, Pandora and TuneIn streaming support
• SVS Prime Pinnacle 3-way floorstanding loudspeaker design
• 1-inch aluminum dome tweeter
• 5.25-inch composite glass-fiber midrange driver
• Triple 6.5-inch woofers per Prime Pinnacle speaker
• SoundMatch 3-way crossover
• 29Hz-25kHz rated Prime Pinnacle frequency response
• SVS PB-3000 R|Evolution 13-inch high-excursion driver
• 1,200W RMS / 4,000+W peak Class D subwoofer amplifier
• 295MHz Analog Devices DSP with 56-bit filtering
• Balanced XLR and unbalanced RCA subwoofer inputs
• SVS Subwoofer Control App compatibility
• PB-3000 R|Evolution frequency response down to 16Hz in standard ported mode

Specifications

Onkyo TX-RZ70

• Product Type: 11.2-Channel Network AV Receiver
• Colour: Black
• Condition: Open Box
• Amplification: Class AB
• Power Output: 140W × 11 into 8 ohms
• Amplified Channels: 11
• Channel Configuration: 7.2.4
• HDMI: 7 Inputs / 3 Outputs with eARC
• Video Support: 8K/4K Ultra HD
• HDR Support: Dolby Vision, HDR10+
• HDMI 2.1 Features: VRR, QFT, ALLM, HDCP 2.3
• Additional Video Inputs: 1 Component, 2 Composite
• Analogue Audio Inputs: 4 RCA, 1 RCA Phono
• Digital Audio Inputs: 2 Optical, 2 Coaxial
• Preamp Outputs: 13 RCA with 2 independent subwoofer outputs
• Zone Outputs: Zone 2 Stereo RCA, Zone 3 Stereo RCA
• Surround Formats: Dolby Atmos, Dolby Surround, DTS:X, Neural:X, IMAX Enhanced, Auro-3D
• Streaming: Roon Ready, Chromecast built-in, AirPlay 2, Spotify, Amazon Music HD, Tidal, Deezer, Pandora, TuneIn
• Connectivity: Wi-Fi and Bluetooth
• Room Correction: Dirac Live
• Certification: THX Certified for Theater Reference Sound

SVS Prime Pinnacle Floorstanding Loudspeakers

• Product Type: Floorstanding Tower Loudspeaker Pair
• Finish: Black Ash
• Condition: Open Box
• Tweeter: 1-inch aluminum dome
• Midrange: 5.25-inch composite glass-fiber cone
• Woofers: Triple 6.5-inch per speaker
• Port Size: Triple 2-inch
• Frequency Response: 29Hz-25kHz ±3dB
• Nominal Impedance: 8 ohms
• Sensitivity: 88dB, 2.83V @ 1 metre
• Recommended Amplifier Power: 20-300 watts
• Crossover: 3-way SoundMatch design
• Tweeter-to-Midrange Crossover: 2.1kHz, 12dB/octave
• Midrange-to-Woofer Crossover: 300Hz, 12dB/octave
• Connections: 5-way binding posts
• Cabinet Dimensions Per Speaker: 40.5 × 8 × 13.4in / approximately 1028.7 × 203.2 × 340.4mm
• Overall Dimensions Per Speaker: 41.1 × 8 × 13.9in / approximately 1043.9 × 203.2 × 353.1mm
• Unboxed Weight Per Speaker: 57.1 lb / 25.9kg
• Packaged Weight Per Speaker: 66 lb / 29.9kg

SVS PB-3000 R|Evolution

• Product Type: Ported Powered Subwoofer
• Finish: Premium Black Ash
• Condition: Open Box
• Driver: 13-inch high-excursion SVS proprietary long-throw driver
• Amplifier Power: 1,200W RMS / 4,000+W peak
• Amplifier Type: Class D
• DSP: 295MHz Analog Devices DSP with 56-bit filtering
• Frequency Response, Standard Mode: 16Hz-235Hz ±3dB with all ports open
• Frequency Response, Sealed Mode: 17Hz-270Hz ±3dB with all ports sealed
• Inputs: Balanced XLR, Unbalanced RCA
• Cabinet Construction: Internally braced MDF with non-resonant ABS grille
• Dimensions: 18.3 × 21.9 × 24.7in / 465 × 557 × 626mm
• Unboxed Weight: 85.1 lb / 38.6kg
• Shipping Weight: 104.3 lb / 47.3kg

What's in the Box

• 1 × Onkyo TX-RZ70 Premium 11.2 Channel Network AV Receiver BLACK - Open Box
• 1 × SVS Prime Pinnacle Floorstanding Loudspeaker Pair BLACK ASH - Open Box
• 1 × SVS PB-3000 R|Evolution Series Subwoofer BLACK ASH - Open Box
