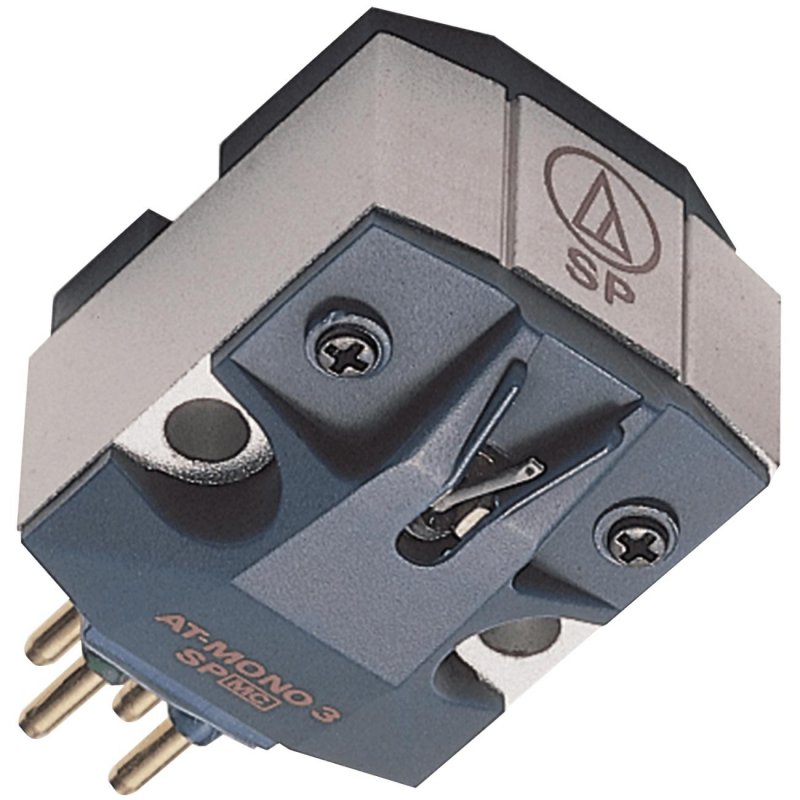

The AT-MONO3/SP is a high-output (1.2 mV) moving coil cartridge designed specifically for use with 78 RPM mono shellac records.* Due to the horizontal configuration of its PCOCC (Pure Copper by Ohno Continuous Casting) voice coils, the AT-MONO3/SP cartridge only generates electrical signal with horizontal movement, yet it also has appropriate compliance in the vertical direction to keep groove wear to a minimum. The voice coils are wired in series, resulting in one mono signal that is transmitted to the cartridge's white-blue terminals and red-green terminals in order to feed both inputs of a stereo phono preamp.

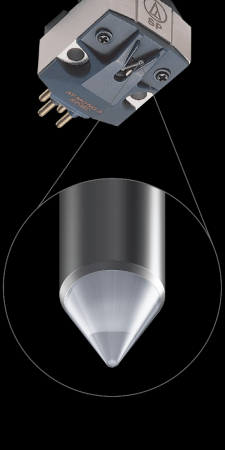

The cartridge's low-mass 2.5 mil conical stylus is mounted on an aluminum cantilever for excellent tracking of the wider 78 RPM shellac grooves. The cartridge features a strong, rigid body of die-cast aluminum alloy and synthetic resin to eliminate unnecessary vibrations.
Features
- Dual moving coil cartridge designed specifically for use with mono vinyl records*
- Aluminum cantilever with 2.5 mil conical stylus
- Strong, rigid body construction of die-cast aluminum alloy and synthetic resin
- PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer
- Compatible with stereo playback systems
Specifications:
- Frequency Response: 20-15,000 Hz
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 3.0-7.0 g (5.0 g standard)
- Stylus Construction: Nude Square Shank
- Recommended Load Impedance: 400-47,000 ohms*
- Coil Impedance: 40 ohms (1 kHz)
- DC Resistance: 40 ohms
- Coil Inductance: 190 µH (1 kHz)
- Output Voltage: 1.2 mV (at 1 kHz, 12 cm/sec)
- Stylus Shape: 2.5 mil conical
- Cantilever: Aluminum pipe
- Static Compliance: 10 x 10-6 cm/dyne
- Dynamic Compliance: 3.5 x 10-6 cm/dyne (100 Hz)
- Mounting: Half-inch
- Dimensions: 16.0 mm (0.63") H x 16.6 mm (0.65") W x 26.5 mm (1.04") D
- Accessories Included:
- Non-magnetic screwdriver
- 2 washers
- 2 nuts
- Cartridge installation screws (13 mm x 2, 20 mm x 2)
- Plastic protector
- Brush
- PCOCC lead wire set
- Body Material: Aluminium/Synthetic Resin
- Mounting Feature: Half-inch mount
- Stylus Size: Bonded round shank
- Type: Horizontal Mono Moving Coil
- Weight: 6.8 g (0.24 oz)
Product Details
- Audio-Technica AT-MONO3/SP
-
Brand New : Factory Sealed
- EAN : 4961310008338
- EFLC : 14295
