Audio-Technica AT-XP7/H Headshell Cartridge Combo Kit
Brand New · Factory Sealed · Audio-Technica Authorized Dealer
$249.00
Free Canada-wide Shipping
•
Order Now : Ships Mon
end of _buybox_shipping
end of _buybox_core
end of _payments
Use checkout code
THATSEFLC
until Mar 3.
end of _buybox_couponend of _xwarranty
- Low Stock : Order Soon
- Free shipping
- 1yr Manufacturer Warranty
- Pickup available: Richmond Hill, ON
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001

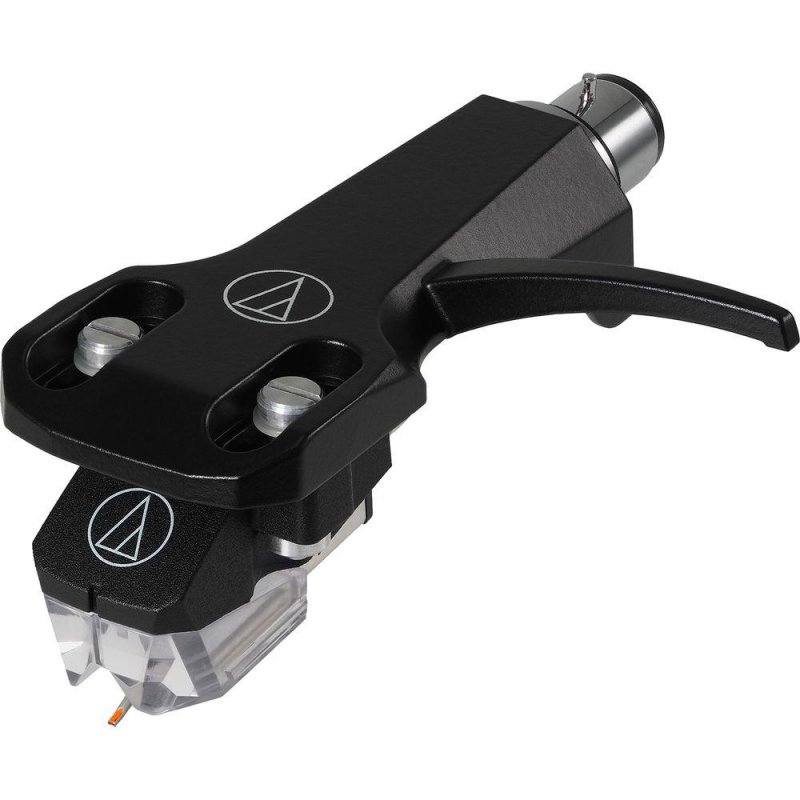

The AT-XP7/H combo kit includes the AT-XP7 DJ cartridge premounted on the AT-HS6BK headshell.
Features:
- 0.3 x 0.7 mil elliptical bonded stylus tip
- Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body
- 6.0 mV high-output level
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Stainless wire suspension, double-layered rubber damper and tapered aluminum cantilever ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
- Universal ½"-mount headshell for 4-pin turntable cartridges
Specifications:
- Frequency Response: 20-20,000 Hz
- Channel Separation: 22 (dB at 1 kHz)
- Vertical Tracking Angle: 20°
- Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 6.7 k ohms (1 kHz)
- DC Resistance: 990 ohms
- Coil Inductance: 1.0 H (1 kHz)
- Recommended load capacitance: 100 to 200 pF
- Output: 6.0 mV (1 kHz, 5 cm/sec.)
- Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: 0.3 x 0.7 mil elliptical
- Cantilever: Aluminum tapered pipe
- Mount: Half-inch
- Weight: cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz)
- Dimensions: cartridge 17.2 mm (0.68") H x 17.8 mm (0.67") W x 28.3 mm (1.20") D; cartridge and headshell 21.2 mm (0.83") H x 21.4 mm (0.84") W x 62.4 mm (2.46") D
- Replacement Stylus: ATN-XP7
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
Product Details
- Audio-Technica AT-XP7/H
-
Brand New : Factory Sealed
- EAN : 4961310146559
- EFLC : 9492
