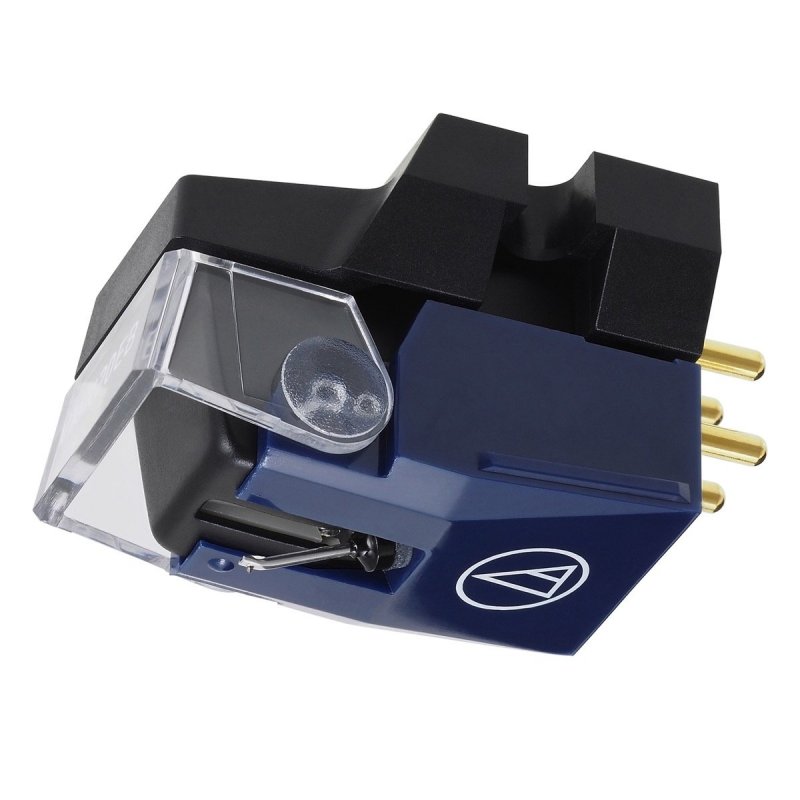

Dual Moving Magnet Stereo Cartridge

Standard elliptical stylus model equipped with an elliptical bonded stylus. This reduces tracing distortion and allows for more accurate sound reproduction.

Features:

• Aluminium cantilever
• Para-toroidal coils improve generating efficiency
• Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.
• VM type dual magnet design ensures outstanding channel separation, extended frequency response and superb tracking
• Lightweight aluminium cantilever allows for faithful reading of the record groove
• Centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB
• Durable low resonance polymer housing

Audio-technica's Internationally-patented Dual Magnet Design Replicates The Structure Of The Cutter Head.

Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

Para-toroidal generating system

Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

Centre shield plate reduces crosstalk

A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.

Specifications:

• Type: VM Type
• Mounting: 1/2" centres
• Frequency Response: 20 - 23,000Hz
• Channel Separation: 27dB (1kHz)
• Output Channel Balance: 1.5dB (1kHz)
• Output Voltage: 4.0mV (1kHz, 5cm/sec.)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force Range: 1.8 - 2.2g (2.0g standard)
• Stylus Shape: Elliptical Bonded
• Stylus Size: 0.3 x 0.7 mil
• Stylus Construction: Bonded Round Shank
• Cantilever: Aluminium Pipe
• Coil Impedance: 2,700Ω (1kHz)
• Static Compliance: 35 x 10-6 cm/dyne
• Dynamic Compliance: 8 x 10-6 cm/dyne (100Hz)
• Recommended Load Impedance: 47,000Ω
• Recommended Load Capacitance: 100 - 200pF
• Weight: 6.4g
• Dimensions: 17.3 (H) x 17.0 (W) x 28.2 (L) mm
• Replacement Stylus: VMN20EB
• Accessories Included: Cartridge installation screws 5mm x 2 and 10mm x 2, Washer x 2, Hexagon nut x 2
