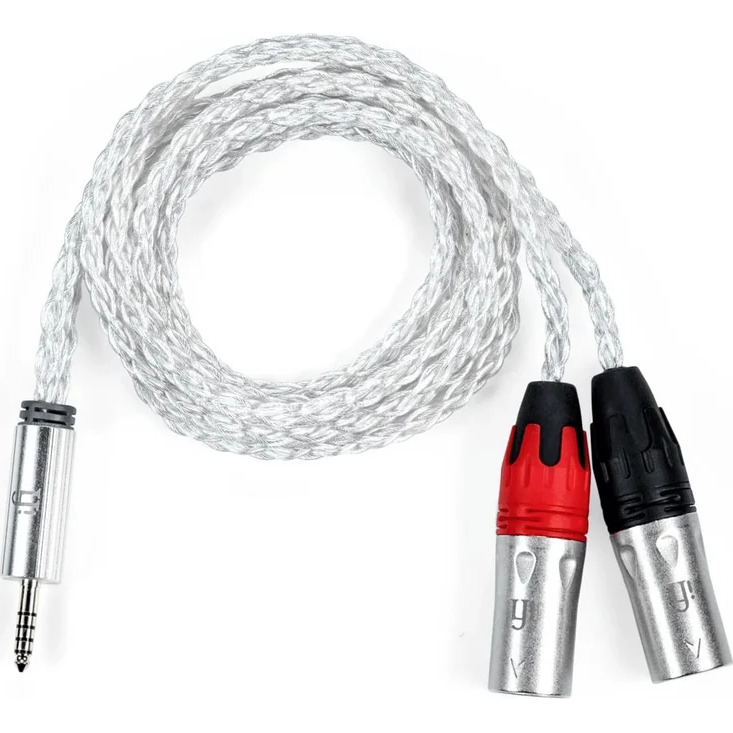

iFi Audio 4.4mm to XLR Balanced Cable IF0306045-N00001

The iFi Audio 4.4mm to XLR Cable is designed for high-quality balanced signal transfer between compatible audio components. Its combination of heavy OFHC continuous cast copper and silver matrix conductors provides a total conductor cross-section of 16AWG.

iFi's custom minZ™ helix construction is designed to minimize capacitance and inductance while providing intrinsic shielding. This construction helps protect the audio signal from RFI and EMI interference without relying on a conventional shielding arrangement.

The cable uses iFi 'FINAL' 4.4mm and XLR connectors along with a RoHS-compliant super-soft 60P HD polymer insulation. The insulation is rated for 1500V AC spark resistance with an insulation resistance of 100Mohm.

Features:

• Balanced 4.4mm to XLR Connection - Designed for balanced signal transfer between compatible audio components.
• OFHC Continuous Cast Copper - Uses heavy OFHC continuous cast copper conductors combined with a silver matrix.
• 16AWG Total Cross-Section - Conductors provide a total cross-sectional size of 16AWG.
• minZ™ Helix Construction - Custom cable geometry is designed to minimize capacitance and inductance.
• Intrinsic Shielding - The minZ™ helix construction provides shielding against RFI and EMI interference.
• iFi 'FINAL' Connectors - Equipped with iFi 'FINAL' 4.4mm and XLR connectors.
• Super-Soft Insulation - RoHS-compliant 60P HD polymer provides flexible cable insulation.
• 1500V AC Spark Resistance - Insulation is specified for 1500V AC spark resistance.

Specifications:

• Model: 4.4mm to XLR Cable
• Manufacturer Part Number: IF0306045-N00001
• UPC: 5060738784639
• Cable Type: Balanced 4.4mm to XLR
• Connector Types: iFi 'FINAL' 4.4mm and XLR
• Construction: minZ™ Helix
• Conductor Material: Heavy OFHC Continuous Cast Copper with Silver Matrix
• Conductor Cross-Section: 16AWG Total
• Shielding: Intrinsic Shielding via minZ™ Helix Construction
• Insulation: RoHS-Compliant Super-Soft 60P HD Polymer
• Spark Resistance: 1500V AC
• Insulation Resistance: 100Mohm
• Fully Extended Width: 2 m (78.7")
• Length per XLR Cable: 1 m (39.4")
• Weight: 133 g (4.69 oz / 0.29 lb)
