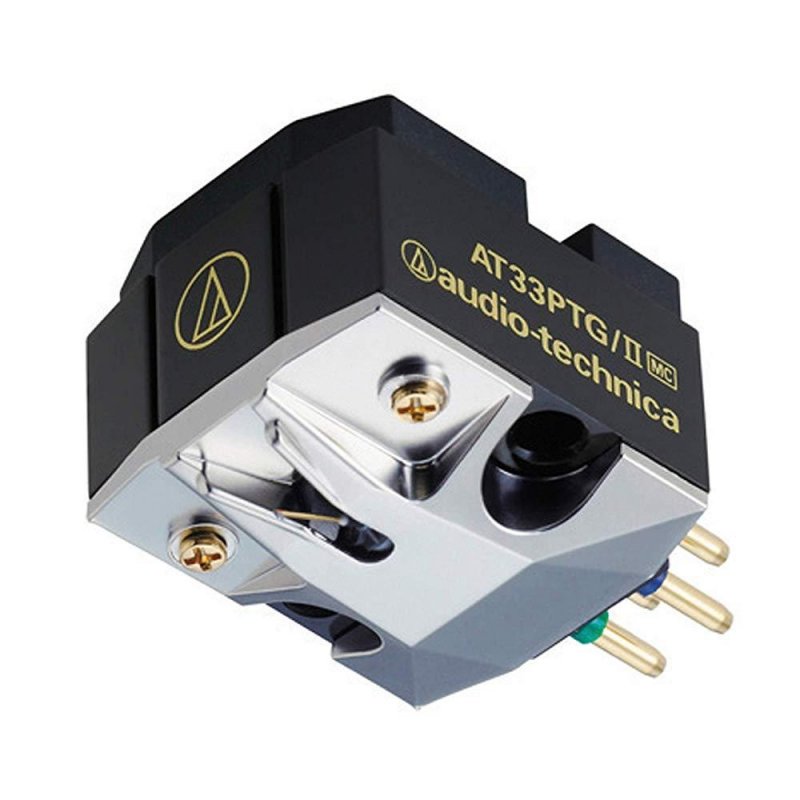

The AT33PTG/II dual moving coil cartridge features a Microlinear stylus that, with its small curvature radius, delivers low-distortion, high-range performance, even when playing the inner circumference of a record. The Microlinear stylus, which has an average life span of around 1,000 hours, is mounted on a nude tapered boron cantilever with a double damper for reduced weight and better audio quality.
The cartridge's two coils provide excellent channel separation and are affixed within a strong, lightweight mold made of hard resin to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.
Features:
- Moving coil cartridge with Microlinear stylus delivers exquisite, full-range audio reproduction
- Advanced tapered boron cantilever and reduced coil weight improve the audio quality, particularly in the higher frequencies
- Neodymium magnet and permendur yoke dramatically enhance the magnetic energy
- PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer
- High-separation, wide-response dual moving coil
- Strong, rigid housing limits unnecessary vibration
- Precision-cast hard aluminum alloy body enhances rigidity and the signal-to-noise ratio
Specifications:
- Frequency Response: 15-50,000 Hz
- Channel Separation: 30 dB (1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Recommended Load Impedance: More than 100 ohms (when head amplifier is connected)
- Coil Impedance: 10 ohms (1 kHz)
- DC Resistance: 10 ohms
- Coil Inductance: 22 μH (1 kHz)
- Output: 0.3 mV (at 1 kHz, 5 cm/sec)
- Channel Balance: 0.5 dB (1 kHz)
- Stylus Shape: Microlinear
- Stylus Type: Nude square shank
- Stylus Curvature Radius: 2.2 x 0.12 mil
- Cantilever: Gold-plated nude tapered boron
- Static Compliance: 40 x 10-6 cm/dyne
- Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
- Mount: Half-inch
- Weight: 6.9 g (0.24 oz)
- Dimensions: 16.0 mm (0.63") H x 16.6 mm (0.65") W x 26.5 mm (1.04") D
- Accessories Included: Non-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (13 mm x 2, 19 mm x 2); plastic protector; brush; PCOCC lead wire set
