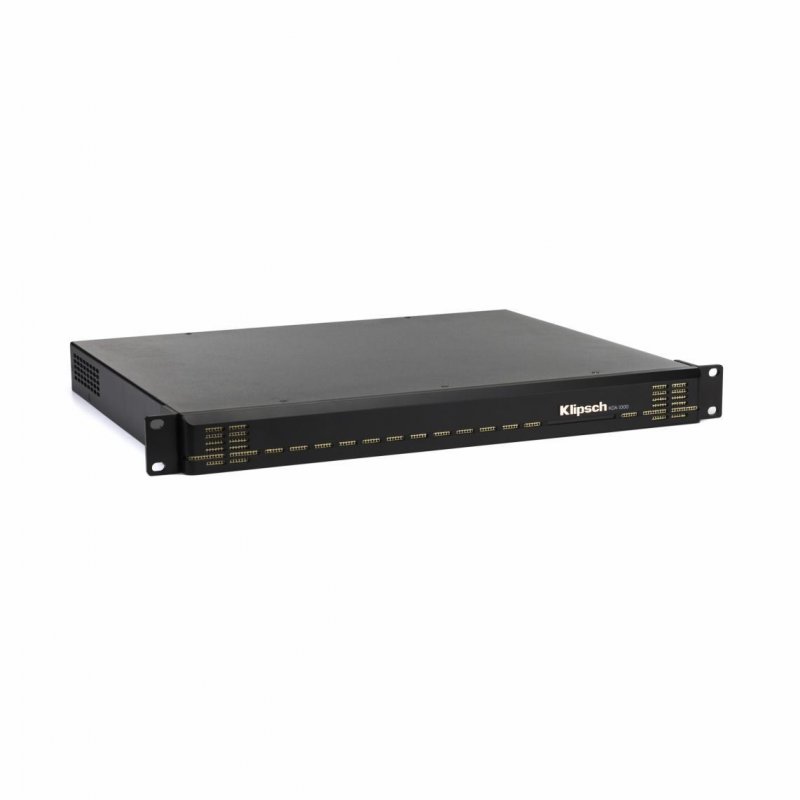

For outdoor systems requiring more output, the Klipsch KDA-1000 DSP Amplifier powers larger arrangements to deliver incredible performance from a 1000W, single-rack unit solution - all completely customizable through the web-based DSP menu.
Features:
- 1000W Total System Power (4 x 250W)
- High performance power platform
- 70V / 100V / Low Impedance Compatibility
- Flexible I/O
- State-of-the-art DSP control and set-up
70V / 100V / Low Impedance Compatibility
From small residential systems to massive commercial installs, the Klipsch KDA-1000 is designed for maximum install flexibility — offering low impedance and 70V/100V compatibility for distributed line applications. These impedance settings are fully independent from channel to channel — so an installer can run one channel low impedance with another channel 70V/100V for full customization and optimization of their system.
Flexible I/O

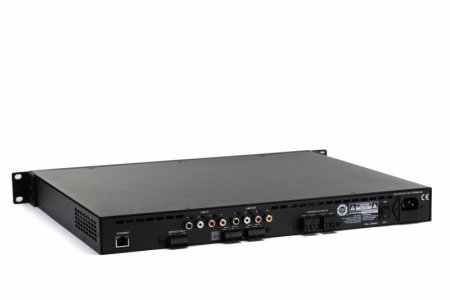

The KDA-1000 boasts fully matrixed 4x4 I/O with fully balanced Phoenix connector inputs and Phoenix speaker outputs capable of connecting up to 12 gauge wire. For non-balanced connections, RCA inputs and outputs (throughs) are also built-in, making the KDA-500 one of the most flexible power solutions on the market today.
State-of-the-Art DSP Control And Set-up
The myriad of I/O, impedance, and acoustic settings are fully matrixed and customizable through the web-based DSP menu — simply plug in a laptop computer to the RJ-45 port on the back panel of the amplifier, enter the assigned IP address into your favorite web browser to pull up the easy-to-use, streamlined menu page. In addition to password protected channel assignments, gain settings, EQ, and limiting, the DSP provides presets for almost every Klipsch speaker on the market — optimizing acoustic performance and power handling for these products with a single click. Accessing the DSP wirelessly with a tablet, smartphone, or computer is also quick and easy when the KDA amplifier is plugged into the network's wireless router.
Specifications:
- Part Numbers: 120V: 1063258, 230V: 1063261
- Amplifier Type: High Efficiency Class G/H
- Amplifier Power: 1000W Total System Power, 4 x 250W Per Channel
- Inputs: Balanced 4 x Phoenix Line Level (up to 12 AWG wire), Unbalanced: 4 x RCA Line Level
- Outputs: 4 x Phoenix Speaker Level (up to 12 AWG wire), 4 x RCA Line Level (Throughs)
- Input Sensitivity: 750mV Balanced, 0dBU
- Input Impedence: Balanced 40k, THD less than 1% @ Rated Output
- Signal-to-Noise: -100dB Below Rated Output
- Enclosure Material: Front Face: ABS Plastic, Case: Machine Formed Steel
- Rack Unit: 1RU
- Product Dimensions: 1.73" x 19.02" x 14.29" (44mm x 483mm x 363mm)
- Product Weight: 15 lbs (6.82 kg)
- Mounting Removable: 1RU Rack Ears, Removable Rubber Feet
- Built From: 2016
Product Details
- Klipsch KDA1000
-
Brand New : Factory Sealed
- UPC : 743878030266
- EFLC : 7927
