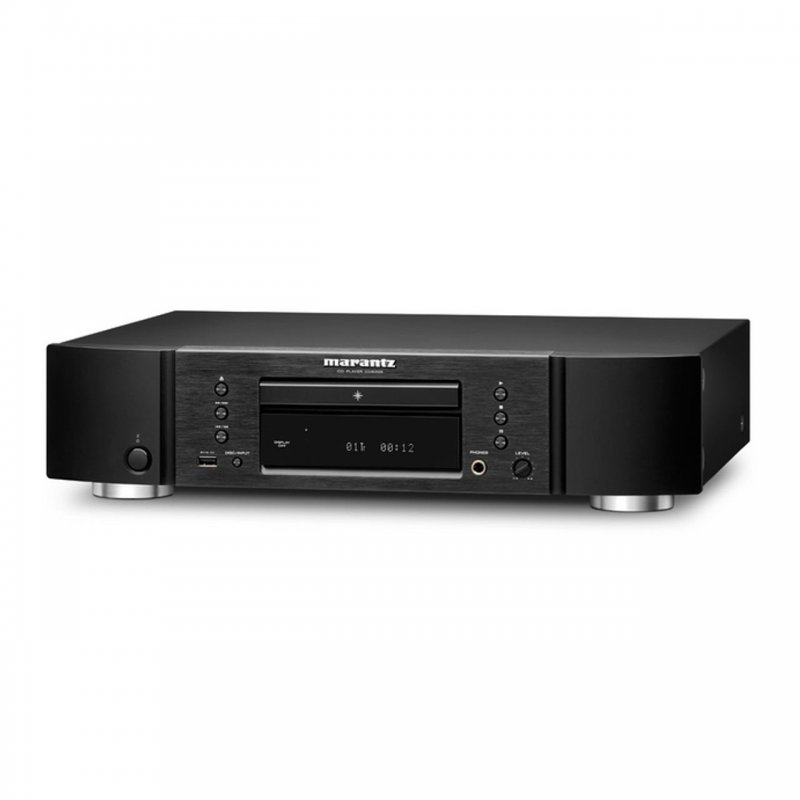

Marantz CD6007

SLIMLINE CD PLAYER WITH CUSTOM HDAM

Featuring iconic Marantz sound and simple compatibility with CDs and USB files

Key Benefits

Enjoy All Your Favorite Files

Supports all your files through the front USB port, including WAV, MP3, AAC, WMA, FLAC HD, ALAC, AIFF, and DSD files for a prism experience.

Versatile Playback For All Your Audio

Easily enjoy your CD and CD-R/RW collection and more.

Enjoy Pristine Sound Quality

The high-quality 192-kHz/24-bit D/A conversion features an AK4490 chip with two selectable digital filters and an accurate system clock.

Optimized Audio Reproduction

New selectable two digital filters optimize the reproduction of digital music content.

Marantz HDAM Technology

Marantz developed its own discrete circuit boards to replace standard ICs. These HDAMs consist of discrete surface mount components with short mirror image L/R signal paths. These devices do exactly the same thing as the Op-Amps but outperform the regular IC Op-amps dramatically in terms of the Slew Rate and reduced noise level, resulting in more dynamic, accurate, and detailed sound. In the CD6007, the proprietary HDAM-SA2 circuit improves on its previous HDAM module for a more stable power supply. The idling current stability is less influenced by power transistor temperatures to maintain sound performance even at high-level output.

Reference Quality D/A Conversion

The CD6007 features a new Hi-Res D/A conversion. It is equipped with a reference class AK4490 D/A converter, offering two selectable filter options and provides up to 192-kHz/24-bit and DSD 5.6MHz resolution for optimum musical fidelity with tight bass, pleasant mids, and smooth extended highs for CD playback and Hi-Res formats from USB memory stick.

High Current Power Supply

The audio power supply employs high speed, high current Shottky Barrier Diodes and new higher value current storage capacitors compared to the previous model. The size of the power supply capacitors has been increased by 120% for improved current stability and reduced AC noise during high demanding listening sessions.

High Slew Rate Op-Amp + HDAM-SA2

Compared to the CD6006, the CD6007 offers an improved and redesigned headphone amplifier section. The CD6007 inherits the exclusive Marantz HDAM-SA2 circuit with three gain settings (Low/Mid/High) for a perfect match with almost any brand of headphones for an optimal solo listening experience.

Features

• CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC - Yes / Yes / No / Yes / Yes / No
• CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data - No / No / Yes / Yes / Yes
• Data Disc Compatibility: DSD / WAV / ALAC - No / No / No
• DAC operation mode: USB / Coax / Optical - No / No / No
• Asynchronous mode rear USB - No
• Bit-perfect transmission - No
• USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 - No
• Signal isolator for DAC Mode operation - No
• HDAM version - HDAM+HDAM SA2
• Power Transformer: Toroidal / El - No / Yes
• High-Grade Audio Components - Yes
• Customized Components - Yes
• Symmetric circuit layout - Yes
• Copper Plated Chassis - No
• Extra metal plate for chassis strengthening - Yes
• Digital out off / Audio EX Mode - Yes / No
• Headphone: Standard / Buffer / Current feedback - No / Yes (HDAM-SA2) / No

Others

• Selectable filter: CD / SA-CD / DAC-Mode - Yes / No / No
• Marantz Musical Mastering - Yes
• Marantz Musical Mastering Stream - No
• Marantz Musical Mastering Conversion - No
• Separated rectifier circuit for analog and digital circuitry - Yes
• Display: Dimmer / Off - Yes / Yes
• Low noise LCD display - No
• 5mm Aluminum top cover - No

Playback

• Program Play (CD / SA-CD) - 25
• Repeat - Yes
• Random Play - Yes
• Start Sound Mode for SA-CD - No

Inputs/Outputs

• Analog Out (Cinch) - 2ch
• Balanced Out - No
• Digital Optical In / Out - No / 1
• Digital Coaxial In / Out - No / 1
• Sample Rate digital In - No
• Gold Plated Cinch - Yes
• USB Audio (Front) / Made for iPod / Made for iPhone® - Yes / No / No
• USB-A: FLAC / WAV / AIFF / ALAC / DSD - Yes
• USB type B input for PC (rear) - No
• Asynchronous mode rear USB - No
• Sample Rate USB type B In - No
• USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 - No
• D-Bus - Yes
• Headphone Out - Yes
• Headphone Volume Control - Yes

Specifications

• Mechanism - No
• D/A Conversion - No
• Low Pass Filter stage - No
• Output Buffer - No
• Headphone amp - No
• Frequency Response (Cust.) - No
• Dynamic Range (SA) - No
• Signal to Noise Ratio (SA) - No
• Total Harmonic Distortion (SA) - No
• Channel Separation (SA) - No
• Frequency Response - 2 Hz - 20 kHz
• Dynamic Range - 100 dB
• Signal to Noise Ratio - 110 dB
• Total Harmonic Distortion - 0.002%
• Channel separation - 98 dB

General

• Available Colors: Gold / Silver / Black / Silver-Gold - No / No / Yes / Yes
• Metal Front Panel - Yes
• Remote Control - RC004PMCD
• Power Consumption in W - 32
• Standby Consumption in W - 0.3
• Auto Power off - Yes
• Detachable Power Cable - Yes
• Maximum Dimensions (W x D x H) in inches - 17.3 x 13.3 x 4.1
• Weight in lbs. - 14.3
• Carton Maximum Dimensions (W x D x H) in inches - 20.3 x 18.4 x 7.4
• Carton Weight (inc. product) in lbs - 19.4
