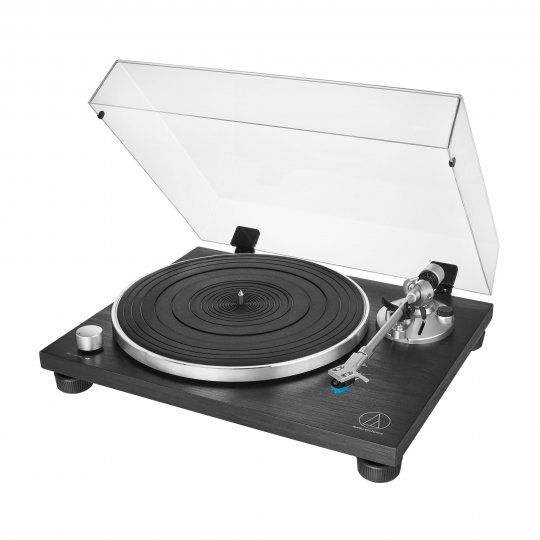

The AT-LPW30 is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. The two-speed (33-1/3 and 45 RPM) turntable features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with black wood veneer to limit low-frequency acoustical feedback.

The turntable includes a straight aluminium tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95C Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 60 years, and that expertise shows in the versatile, high-performance AT-VM95C cartridge, which comes with a 0.6 mil conical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW30 is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

Stylish Wood Turntable

Optimal High-Fidelity Audio Reproduction.

A stunning addition to any system, the AT-LPW30 features an anti-resonance plinth with a black wood veneer to limit low-frequency acoustic feedback.

• Plays 33-1/3 and 45 RPM Records
• Built-in Switchable Phono Pre-Amplifier
• Straight Aluminum Tonearm
• AT-VM95C Dual Magnet™ Phono Cartridge

Audio Aesthetics

Sophisticated Styling.

The LPW30 was designed to give you optimal high-fidelity audio reproduction from vinyl, with sophisticated styling.

Over 60 Years of Analog Excellence

Cartridge Assembly Line Circa 1962.

We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century's worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.

Features:

• Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
• Fully manual operation
• Adjustable dynamic anti-skate control
• Professional anti-resonance, die-cast aluminum platter with rubber mat
• AT-HS4 universal ½"-mount headshell and AT-VM95C Dual Moving Magnet phono cartridge with 0.6 mil conical stylus
• AT-VM95C cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Straight tonearm with hydraulically damped lift control and lockable rest
• Anti-resonance MDF (medium density fiberboard) plinth with black wood veneer
• Built-in switchable phono pre-amplifier for phono or line-level output
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
• Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover

Specifications:

• Type: 2-speed, fully manual operation
• Motor: DC servo motor
• Drive Method: Belt-drive
• Speeds: 331/3 RPM, 45 RPM
• Turntable Platter: Die-cast aluminum
• Wow and Flutter: < 0.15% WRMS (33RPM) at 3kHz
• Signal-to-Noise Ratio: > 60dB
• Output Level:
  • Pre-amp: PHONO: 4.0mV nominal at 1kHz, 5cm/sec
  • Pre-amp: LINE: 200mV nominal at 1kHz, 5cm/sec
• Phono Pre-Amp Gain: 35 dB nominal, RIAA equalized
• Power Supply Requirements: 100 to 240V, 50/60Hz
• Dimensions: 116.9 x 420.0 x 340.0 (H x W x Dmm)
• Weight: 5 kg
• Accessories Included:
  • AT-HS4SV Headshell
  • AT-VM95C Dual Moving Magnet Cartridge with Conical Stylus
  • Detachable RCA output cable (dual RCA male to dual RCA male)
  • AC adapter
  • 45 RPM adapter
  • Counterweight
  • Rubber mat
  • Removable hinged dust cover
• AC Adapter: 12 V, 0.5 A
• Tonearm Type: Static balanced straight aluminum pipe tonearm
• Effective Arm Length: 223.6 mm
• Overhang: 18.6 mm
• Tracking Error Angle: <2 degrees
• Applicable Cartridge Weight: 12-17 g
• Replacement Stylus: AT-VMN95C
• Notes: Stylus pressure adjustment range: 0-3 g
