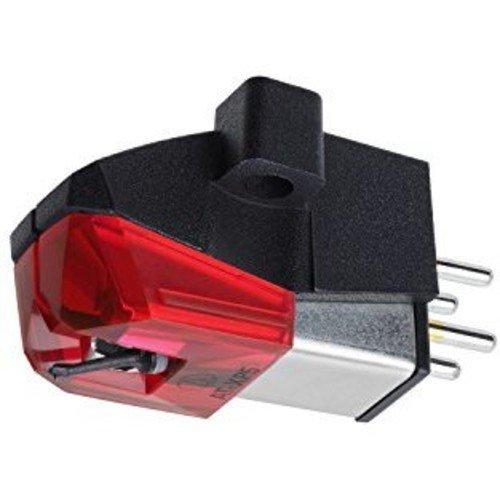

The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

Features:

• 0.3 x 0.7 mil elliptical bonded stylus tip
• Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
• 5.5 mV high-level output
• Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
• Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
• Design offers maximum visibility of the stylus tip
• Great tracking and channel separation for high-fidelity sound

Specifications:

• Frequency Response: 20-18,000 Hz
• Channel Separation: 20 (dB at 1 kHz)
• Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
• Stylus Construction: Bonded round shank
• Recommended Load Impedance: 47,000 ohms
• Output: 5.5 mV (1 kHz, 5 cm/sec.)
• Channel Balance: 2.0 dB (1 kHz)
• Stylus Shape: 0.3 x 0.7 mil elliptical
• Cantilever: Carbon fiber-reinforced ABS
• Mount: Half-inch
• Replacement Stylus: ATN-XP5
