Wireless Audio Streaming Player

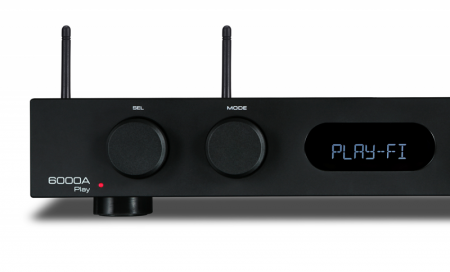

The audiolab 6000A Play, is the latest addition to the globally acclaimed 6000 series.

A combination of the illustrious and class-leading 6000A integrated amplifier with the acclaimed 6000N Play wireless audio streaming player, the audiolab 6000A Play is a richly specified, all-encompassing audio solution.

Adapting to the modern world of music streaming but retaining all of the awarding-winning analogue and digital audio circuitry from the 6000A, the 6000A Play offers almost universal source compatibility.

DTS Play-Fi Enabled

The audiolab 6000A Play incorporates the acclaimed DTS Play-Fi® platform for built-in high-resolution wireless streaming playback (up to 24bit / 96kHz with compatible services such as TIDAL or Qobuz). You can stream from any source on your wireless network, including smartphones, tablets or PCs as well as a NAS Drive. So, however you want to play your music, audiolab 's 6000A Play will deliver outstanding performance.

Perfect Partnership

The DTS Play-Fi platform offers a wealth of music options from around the globe. Spotify, Qobuz, Tidal, HD Tracks, Deezer, Amazon Music, Napster, KKBox and Sirius XM, to name a few. Browse a radio guide with thousands of stations and podcasts, or stream from a home media server with DLNA compatibility.

Above all, the audiolab 6000A Play offers Flexibility without compromise. With deep, well-defined bass, expressive midrange and sweet, subtle treble - the 6000A Play offers an open window on the music being played, as all great hi-fi should, engaging the listener with natural, unforced energy that is fully reflective of the source material.

Features:

• Full analogue and digital circuitry retained from the award-winning and class-leading audiolab 6000A integrated amplifier with built-in wireless streaming technology
• Class AB power amplification: 2x50W into 8 ohms; 2x75W into 4 ohms aptX Bluetooth streaming
• ESS Sabre32 ES9018K2M Reference DAC - as seen in the award-winning audiolab 6000A
• Three user-selectable digital filters
• Class A post-DAC active filter
• Low noise JFET MM phono stage
• Dedicated current-feedback headphone amp
• Three operational modes - Integrated Mode; Pre-Power Mode; Pre Model
• Ethernet connection - wired internet connection for high bandwidth applications
• Dedicated high-performance MM phono input
• Separate pre-power sections for flexibility of operation
• Automatic equipment activation via 12V trigger
• Auto standby function
• Wi-Fi® Technology DTS Play-Fi streams music over standard Wi-Fi networks, delivering perfectly synchronized audio, with no lag and zero loss in sound quality.
• Lossless Audio Streaming Stream in 24-bit/192kHz with compatible streaming services and files formats.
• Multi-room Enjoy music in every room of your house. All at once, perfectly synchronized, with no lag. You're in control.
• DTS Play-Fi App Simply download the free app and immediately send songs via Wi-Fi to any speaker in any room of the house.
• Easy Setup No logins, no complicated computer-based setups. Just download the app and within minutes, you're ready to listen.
• Any Operating System Fully compatible with all operating systems: Apple iOS, AndroidTM, Windows® PC, and Fire OS.

Wireless Streaming Technology

DTS Play-Fi is premium whole-home wireless audio, now available from the largest ecosystem of brands in the world. Stream your favourite content with astounding audio quality, from every device that you've got.

All DTS Play-Fi products are seamlessly interoperable, so you can find the perfect speaker for every room, and know that they will all make beautiful music together.

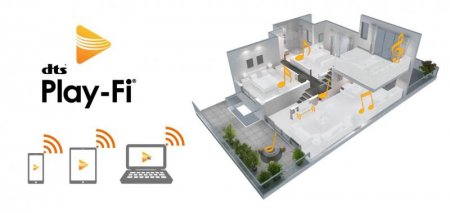

Whole home audio, made easy:

DTS Play-Fi sends audio from mobile devices to speakers throughout the home using proprietary streaming, synchronization, and authentication technology.

Freedom of choice, at last

Every single DTS Play-Fi product works perfectly with all the rest, regardless of brand, so you get a huge range of options to customize your home, and one simple, elegant listening experience.

DTS Play-Fi offers an unparalleled selection of audio products for your home, from compact battery-powered speakers to powerful soundbars, built by the most respected audio brands in the business. No more compromising your style or taste to get a high-quality wireless audio solution.

Works with every device you've got

Of course, your music is always close by. And we know you have all kinds of devices in your life. That's why DTS Play-Fi is built especially for smartphones, tablets, and PCs.

We have easy-to-use software for Android, iOS, Kindle Fires, and Windows. We support streaming via Spotify Connect, too. Any way you want to play, it just works.

DTS Play-Fi offers an unparalleled selection of audio products for your home, from compact battery-powered speakers to powerful soundbars, built by the most respected audio brands in the business. No more compromising your style or taste to get a high-quality wireless audio solution.

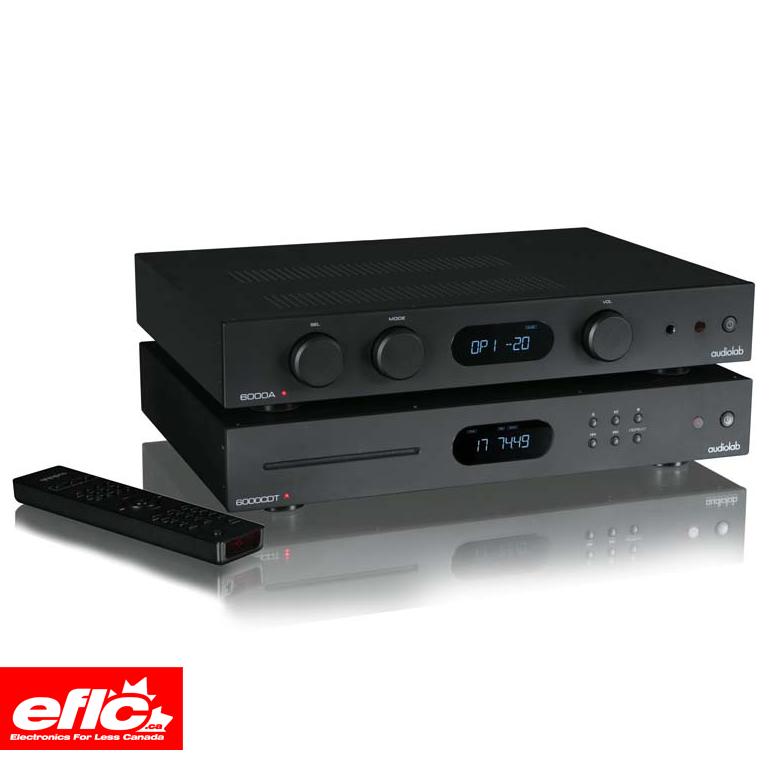

The 6000CDT is a dedicated CD transport incorporating the same slot-loading mechanism as audiolab's flagship CD player, the 8300CD. Extremely robust and reliable, it uses a read-ahead digital buffer to reduce disc-reading failures, able to play scratched and damaged CDs that are unreadable by conventional mechanisms.

The Sound of Science

The 6000CDT is the latest CD transport from audiolab. Using audiolab's slot loading mechanism, the transport uses read-ahead digital buffering to reduce disc reading failures and deliver the highest level of digital signal extraction from a wide range of CDs, even capable of reading scratched and damaged CDs that are unreadable by conventional mechanisms. The onboard digital decoder utilises digital coax and optical outputs to deliver the maximum versatility.

The master clock is controlled by a temperature-compensated crystal oscillator, enabling the digital output from both coaxial and optical sockets to exhibit vanishingly low levels of jitter (digital distortion).

In addition, the coaxial output is fed from a differential line driver to ensure a flawless digital signal reaches the accompanying DAC - naturally, the 32-bit DAC section in the 6000A integrated amp is a superb sonic match.

By mounting the transport in its own, electromagnetically shielded enclosure, and including a dedicated power supply, the digital signal extraction from any CD is as accurate and precise as it is possible to achieve.

Specifications 6000A

• DTS Play-Fi Technology: IEEE 802.11a/b/g/n/ac Supports global, popular streaming content (Amazon Music, Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, Deezer, iHeartRadio, Pandora, SoundMachine, Qobuz, QQmusic ) Supports Speaker Groups Supports Android/iOS/Kindle Fire/Windows PC Control
• Analogue Inputs: 3 x AUX , 1x Phono (MM), 1x Power In
• Digital Input: 2 x Coaxial, 2 x Toslink Optical, Bluetooth (aptX/aptX LL)
• Analogue Output: 1x RCA Pre Out
• Gain: +8dB (Line) +55dB (Phono MM)
• Input Sensitivity: 720mV (Line, Volume = 0dB) 3.1mV (Phono MM, Volume=0dB)
• Input Impedance: 10K (Line) 47K//100pF (Phono MM)
• Total Harmonic Distortion (THD): < 0.0004% (1KHz @ 2V, Volume = 0dB)
• Frequency Response: 20Hz-20kHz (+/-0.1dB)
• Output Voltage: 2.3V max. (Volume=0dB)
• Output Impedance: 120 ohm
• Signal-to-Noise Ration (S/N): > 110dB (Line, A-weighted)
• > 76dB (Phono MM, A-weighted)
• D To A Converter: ES9018K2M
• Total Harmonic Distortion (THD): < 0.0006% (1KHz @ 0dBFS)
• Output Level (0dBFS, 1KHz): 2.05V
• Max. Sampling Frequency: 192KHz
• Signal-to-noise ratio (S/N): > 112dB (A-weighted)
• Digital Filters: Fast Roll-off , Slow Roll-off , Minimum Phase
• Gain: +29dB
• Rated Max. Power Output: 2 X 50W (8 ohm, THD<1%) 2 X 75W (4 ohm, THD<1%)
• Frequency Response: 20Hz-20kHz (+/-0.3dB)
• Input Sensitivity: 720mV (Volume=0dB)
• Total Harmonic Distortion (THD): < 0.003% (1kHz @ 40W/8ohm)
• Signal-to-Noise ratio (S/N): > 110dB (A-weighted)
• Max. Output Current: 9A
• Total Harmonic Distortion (THD): < 0.01% (1kHz, 10mW into 20ohm)
• Output Impedance: 2.35 ohm
• Load impedance: 20-600 ohm
• Standby Power Consumption: < 0.5W
• Power Requirements (depending on region): 220-240V ~ 50 - 60Hz 100-120V ~ 50 - 60Hz
• Dimensions (mm) (W x H x D): 445 x 80 x 330mm including feet, terminals and controls
• Carton Size (mm) (W x H x D): 512 x 467 x 155
• Weight: 7.9kg (Net) 10kg (Gross)

Specifications 6000CDT:

• Digital Output Voltage Level: 600±50mVpp
• Frequency response: <0.01dB @ 20-20kHz
• Output Impedance: 75±1Ω
• Max Sampling Rate: 44.1 kHz
• Max. Power Consumption: 15W
• Standby Power Consumption: <0.5W
• Power Requirements:
• 240V ~ 50 - 60Hz
• 230V ~ 50 - 60Hz
• 115V ~ 50 - 60Hz
• 100V ~ 50 - 60Hz
• Dimensions (mm ): (W x H x D) 445 x 80 x 307mm - including feet, terminals and controls
• Carton Size (mm ): (W x H x D) 512 x 467x 146
• Weight: 5.4kg (Net)
