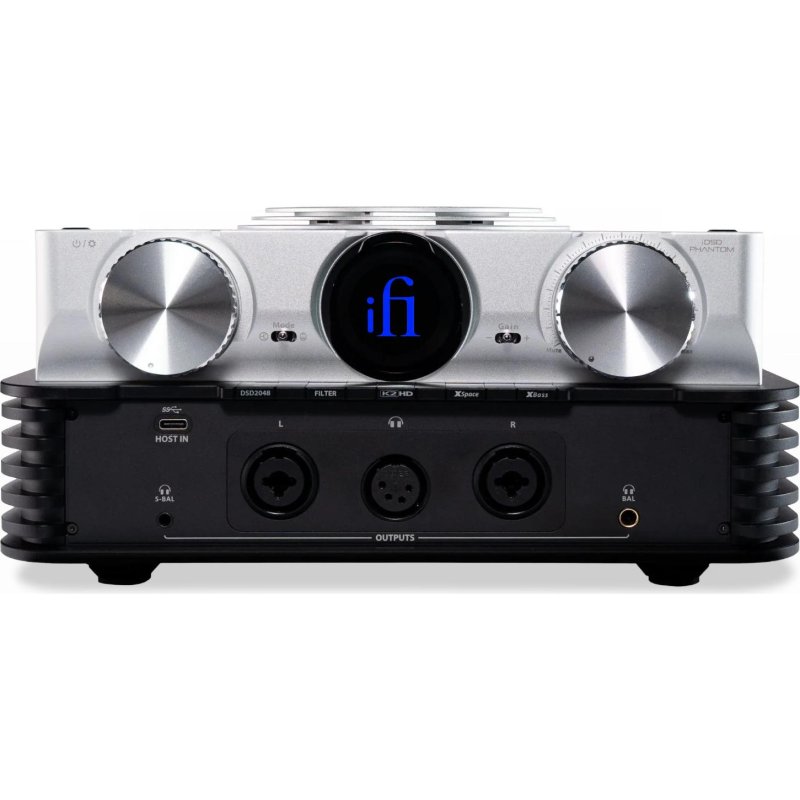

iFi iDSD PHANTOM Reference Streaming DAC & Headphone Amplifier

The iFi iDSD PHANTOM combines a reference-class DAC, ultra-resolution network streamer and powerful headphone amplifier in a single flagship system. Designed as a high-end system centrepiece for headphones, active speakers or an amplifier and passive speaker system, it combines advanced digital processing with selectable solid-state and tube analogue stages.

At the heart of the iDSD PHANTOM is iFi's Crysopeia FPGA engine with DSD2048 Remastering. Four Burr-Brown DSD1793 DACs operate in a custom interleaved configuration, providing native decoding up to DSD512 and PCM up to 768kHz, while the remastering engine can process audio up to DSD2048.

Three selectable analogue operating modes allow the presentation to be tailored to different headphones and listening preferences. Solid-State mode uses discrete J-FET circuitry for speed and precision, Tube mode introduces hand-matched NOS GE5670 valves, and Tube+ further increases the valve character for a warmer presentation.

The powerful headphone amplifier delivers at least 4,676mW RMS through its balanced outputs at 64 ohms. An extensive selection of headphone connections includes 3.5 mm S-Balanced, 4.4 mm balanced, 4-pin XLR, dual 3-pin XLR and 6.3 mm outputs.

The integrated network streamer supports Qobuz Connect, Tidal Connect, Spotify Connect, Roon, AirPlay and DLNA/UPnP. Ethernet provides wired network connectivity, while wireless setup and advanced configuration can be managed through the iFi Nexis app, which also provides access to connected storage and over-the-air updates.

JVCKENWOOD K2 and K2HD processing is incorporated to restore harmonic information lost during production and digital encoding. For additional sound customization, XBass Pro provides analogue low-frequency adjustment at 10Hz, 20Hz or 40Hz, while XSpace Pro provides selectable 30-, 60- and 90-degree spatial settings.

Features:

• Flagship reference streaming DAC and headphone amplifier
• Four Burr-Brown DSD1793 DACs in a custom interleaved configuration
• Crysopeia FPGA processing engine
• Studio-grade DSD2048 Remastering
• Native PCM support up to 768kHz
• Native DSD support up to DSD512
• Selectable Solid-State, Tube and Tube+ operating modes
• Discrete J-FET solid-state stage
• Hand-matched NOS GE5670 tubes
• At least 4,676mW RMS balanced headphone output at 64Ω
• JVCKENWOOD K2 and K2HD processing
• XBass Pro with 10Hz, 20Hz and 40Hz settings
• XSpace Pro with 30°, 60° and 90° settings
• Selectable digital filters
• Qobuz Connect
• Tidal Connect
• Spotify Connect
• Roon support
• Apple AirPlay support
• DLNA and UPnP support
• Ethernet network connectivity
• iFi Nexis app control
• Bluetooth-assisted Wi-Fi setup through the Nexis app
• Over-the-air updates
• Support for connected storage devices
• Balanced XLR and RCA line outputs
• Hi-Fi and Pro line-output levels
• Infrared remote control included

Specifications:

• Model: iDSD PHANTOM
• Product Type: Reference Streaming DAC / Headphone Amplifier
• DAC: 4 x Burr-Brown DSD1793
• Hi-Res Support: PCM 768kHz, DSD512, DSD2048 with Remastering
• Balanced Headphone Output: ≥4,676mW / 17.3V @ 64Ω; ≥564mW / 18.4V @ 600Ω
• Single-Ended Headphone Output: ≥2,311mW / 8.6V @ 32Ω; ≥144mW / 9.3V @ 600Ω
• Balanced Line Output: 0–4.5Vrms Hi-Fi / 0–18Vrms Pro
• Single-Ended Line Output: 0–2.2Vrms Hi-Fi / 0–9Vrms Pro
• Balanced SNR: ≥116dBA @ 600Ω
• Single-Ended SNR: ≥114dBA @ 600Ω
• Balanced DNR: ≥116dBA @ 600Ω
• Single-Ended DNR: ≥115dBA @ 600Ω
• Balanced Output Noise: <30µV(A) @ 600Ω
• Single-Ended Output Noise: <20µV(A) @ 600Ω
• Balanced THD+N: <0.005% @ 16Ω, 2.4V, 20Hz–20kHz
• Single-Ended THD+N: <0.01% @ 16Ω, 1.27V, 20Hz–20kHz
• Streaming: Tidal Connect, Spotify Connect, Qobuz Connect, Roon, AirPlay, DLNA, UPnP
• Power Consumption: <27W Idle / 75W Maximum
• Dimensions (W x D x H): 10.1 x 7.3 x 4.7" (256 x 185 x 120 mm)
• Weight: 7.93 lb (3.6 kg)

Digital Inputs:

• 1 x USB-B 3.0
• 2 x USB-A Host
• 1 x USB-C Host
• 1 x S/PDIF Coaxial
• 1 x AES3 XLR
• 1 x RJ45 Ethernet
• 1 x M12
• 1 x Optical SC
• 1 x BNC Sync Input

Headphone Outputs:

• 1 x 3.5 mm S-Balanced
• 1 x 4.4 mm Balanced
• 1 x 4-Pin XLR
• 2 x 3-Pin XLR (Left / Right)
• 1 x 6.3 mm Positive Phase
• 1 x 6.3 mm Inverted Phase

Line Outputs:

• 1 x Balanced XLR Stereo Pair
• 1 x RCA Stereo Pair

What's in the Box:

• iFi iDSD PHANTOM
• iPower Elite 15V Power Supply
• Infrared Remote Control
• OptiBox
• RCA Cable
• USB 3.0 Type-A to Type-B Cable
• Antenna
• SC-to-SC Fibre Optic Cable
• Quick Start Guide
