4.4mm Miniaturization Realized through Exquisite Technique
Independent Decoding Chip
It uses CS43131 for the audio decoding chip, which
supports native DSD256 and up to 32-bit 384kHz PCM
decoding. It can fully decode and play music in lossless
format when using Apple Music on iPhone.
Equipped with T-Shaped Lightning OTG plug
ddHiFi developed this new generation of T-Shaped
Lightning OTG plug, which has optimized the circuit
layout to improve power supply stability, so as to
make the output of decoding chip more stable.
The plug is made of powder metallurgy and welded
with special stainless steel reinforcemernt.

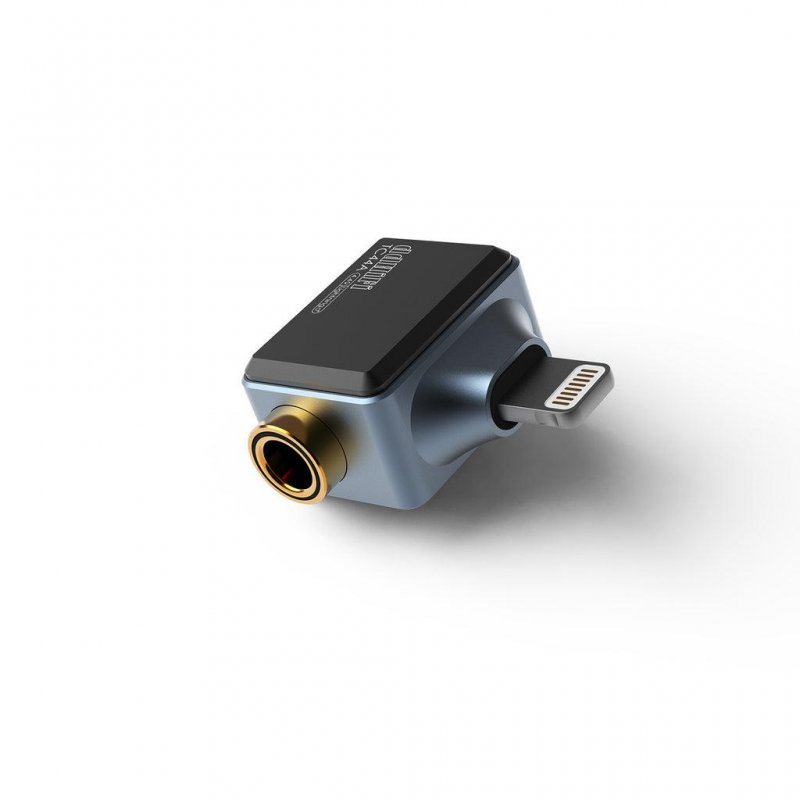

4.4mm Single-Ended
For 4.4mm earphone cable users, when they want to listen
to music on their mobile phone and don't want to connect
too many devices, a simple adapter is the most ideal way
at present. The conventional 4.4mm terminated devices are
generally large in size, but the TC44A adopts a brand new
process structure, so as to make the 4.4mm socket look so
Small
Overall CNC Aluminum Alloy, New Color Matching
Aluminum alloy is light and has great advantages when
Used in adapter. The black and blue color matching
used this time caters to the popular color of iPhone,
and the special treatment process of shell also
enhances the metal texture.
Specifications:
DAC chip: CS43131
Output power: 60mW dual channels (32Ω)
PCM decoding capability: 32bt/384kHz
DSD: Supports up to Native 256
Frequency response: 20Hz~20kHz
THD+N:<-110dB
Dynamic range: >120dB
SNR: >120dB
Dimensions (excl. the plug): L19.5x W21x T12mm
Weight: 5.5g
