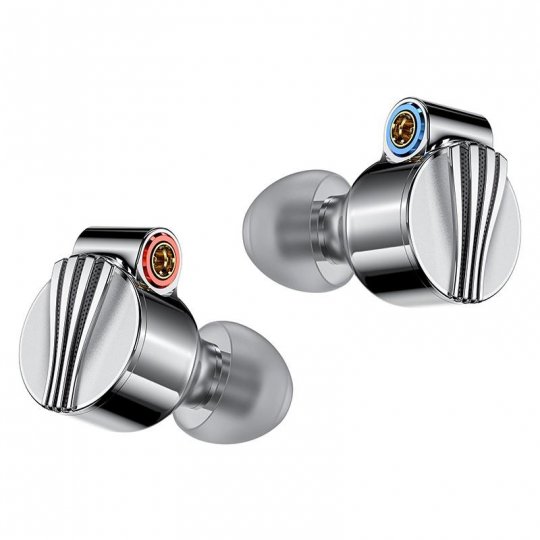

FiiO FD5 Hi-Res Headphone IEM w/ 12mm Dynamic Driver DLC BERYLLIUM-COATED

Secure One-Page Checkout


FiiO Authorised
This product is brand-new and factory sealed FiiO FD5  In Stock 429.99
EAN : 6953175740681  5% Price Promise
Warranty : 1yr Manufacturer Product Replacement Curbside pick up available in Richmond Hill, Ontario.

Order by 2pm : Ships Today
Standard Canada-Wide Free Shipping FREE

$72/mo suggested payments with 6 month special financing now with Flexiti.Apply once, shop anytime with Flexiti!

Flagship Dynamic In-ear Monitors

  • Beryllium-coated DLC diaphragm | Front acoustic prism
  • Rear volcanic field system | Semi-open acoustic design
  • Interchangeable sound tubes | Interchangeable audio jacks

A uniquely timeless

industrial design

2 specially selected

high-performance materials diaphragm

3 revolutionary

acoustic design breakthroughs

Newly developed flagship driver

FiiO has always spared no effort in creating their flagship products. In the FD5 is a newly developed, large 12mm dynamic driver utilizing N52 magnets with a high magnetic flux of 1.5 Tesla - for extremely robust bass and excellent high frequency resolution.

  • 12mm diameter
  • 1.5 Tesla magnetic flux
  • N52 magnets

Beryllium-coated surround + DLC diaphragm

We have conducted much research and experimentation when choosing the materials for our new dynamic driver. By combining the use of Beryllium and diamond-like carbon (DLC), we make full use of the physical rigidity and flexibility properties of the materials to reduce unneeded vibration and appropriately damp sound for improved quality. Overall, the frequency response is balanced and distortion is minimized at all frequency ranges.

Other diaphragms

Materials with weak rigidity are slower to respond to voice coil movements and produce irregular ripple-like movements, causing distortion

FD5 diaphragm

Because of its use of rigid DLC material, the diaphragm is more responsive to voice coil movements for less distortion and more accurate reproduction of sound.

High-end audio inspired acoustic prism

In order to address the issues that come with the time delay between different sound waves, an acoustic prism system was specifically developed for the FD5. This was inspired by similar technology used for adjusting tweeters in well-known high-end audio products.

By installing a conical device close to the front end of the driver diaphragm, we can precisely control how the sound waves travel in the sound tube - bringing benefits such as eliminating high frequency standing waves and enhancing overall sound wave diffusion.

Anti-standing wave and semi-open design

A "volcanic field"was added to the rear of the FD5 in order to reduce low-frequency standing waves, reduce distortion, and overall improve the diffusion of bass waves throughout the FD5. The FD5 also adopts a semi-open design, which relieves air pressure on the ear - leading to more comfortable and long listening sessions.

A sound you actually want

Compared with a multiple-driver IEM, in the FD5 there is only one point from which the sound is produced from a single driver - making for more accurate sound positioning. The flagship-grade dynamic driver and carefully tuned acoustic design also combine to make the FD5 sound wonderfully pleasant to most people's preferences - a relaxed, natural

Curves of natural beauty

FiiO's third generation design is based on carefully-designed curves, evoking majestic mountains and wonderous waterfalls. These curves combined with a faceplate offering two distinctly different textures form a sort of “acoustic art”that needs to be experienced in person.

Casting a strong voice with stainless steel

The smooth, luxurious-feeling 3D embossed stainless steel faceplate represents both form and function - while looking striking, the robust stainless steel also reduces the harmonic distortion of sound inside the FD5. The faceplate provides a striking contrast against the chrome finish of the rest of the FD5 as well.

Art and science in harmony

The stunning curved cylindrical design of the FD5 is actually a benefit for acoustics, as such a design greatly reduces unwanted resonances and reflection of sound waves within the body - allowing every last detail of your music to be faithfully reproduced.

Large and small

Find something that suits you

Great sound comes from a great fit, which is why the FD5 comes with interchangeable sound tubes in small and large sizes to best fit your ear. The large sound tube is balanced, while the small sound tube presents a lively, more bass-focused sound.

*The small sound tube should be used with the triple-flange ear tips, for deeper insertion and better sound quality.

Interchangeable parts for unlimited possibilities

The included cable is an expanded MMCX design with 8 strands of monocrystalline silver-plated copper cable that perfectly and faithfully reproduces your music. The cable also features interchangeable audio plugs for 2.5mm/3.5mm/4.4mm, you to take advantage of a variety of sources.

  • Material: High-purity monocrystalline silver-plated copper
  • Wire diameter: Single wire 0.08mm, strand 24AWG, entire cable 18AWG
  • Wire count: 19 per strand, 8 strands, 152 total wires
  • Structure: Litz Type2, each wire is individually insulated

Hi-Res Audio certified

The FD5 is Hi-Res Audio certified, a testament to its highly-detailed, yet rich and lifelike sound.

Accessories worthy of the experience

Even the accessories have been thoughtfully considered for the FD5. The included HB5 storage case dutifully protects your earphones, while the included MMCX clips greatly facilitates detaching the MMCX cables.

*MMCX ASSIST is provided in cooperation with Final Inc.

Accessories Included:

  • Earphone cablem,HB5 Storage case,Final MMCX ASSIST
  • Interchangeable audio jack,Interchangeable sound tube
  • Bass ear tips (S M L), Balanced ear tips (S M L)
  • Vocals ear tips (S M L),Foam tips 4
  • Triple Flange tips (S L),Manual,Cleaning brush


  • Headphone type: Over-the-ear
  • Frequency response: 10Hz ~ 40kHz
  • Drivers:
    • 12mm Beryllium-coated
    • diamond-like carbon (DLC)
    • dynamic driver
  • Impedance: 32Ω@1KHz
  • Sensitivity: 109dB@1mW
  • Max input power: 100mW
  • Cable connectors: 8 strands of monocrystalline silver-plated copper cable
  • Cable length: 120cm
  • Unit weight: about 11g
