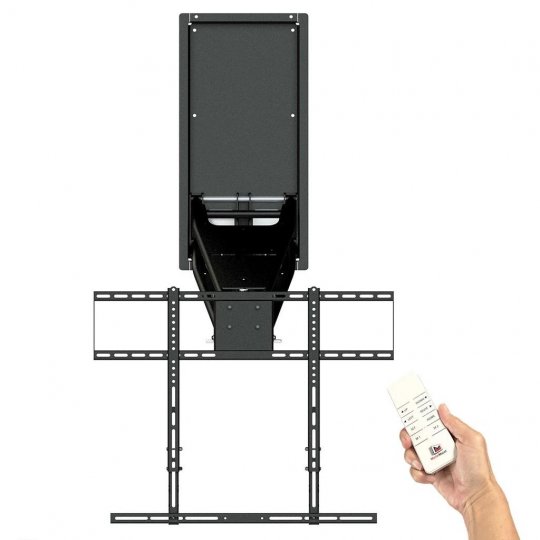

The award-winning MantelMount presents a motorized mount for high on the wall installations such as over a fireplace. Offering comfortable eye-level viewing, the fully automated MM860 Pro Series TV Mount is second to none!

Features:

• Simultaneous Drop & Swivel: Patented Multi-Axis hub, proprietary software and precision electronic actuators lower and swivel the TV in one quick fluid motion.
• Remote Control Choices: Controlled through the included 433 MHZ RF remote, IR-based Logitech Harmony remotes and popular home automation systems.
• Home Automation Options: Works with Control4, URC, RTI, Crestron, Savant and Logitech, with command sets for hard-coding additional systems.
• Power Sensing Technology: Detects when the TV is turned on and automatically lowers it to a favorite preset. Provides automation even without a control system.
• Silent Operation:Two custom electronic actuators allow for smooth, barely audible movement.
• Recessible Housing: Conceals the lifting arm and electronics in the raised position. Can be recessed for flush-to-wall installations.
• Temperature-sensing Monitor:TV automatically retracts to its home position when an unsafe temperature is detected.
• Soft & Hard Travel Stops: Vertical and horizontal travel limits configured through both software and hardware, provide a virtual safety shield that prevents the TV from touching the wall or mantel.
• Plug & Play Networking: DHCP enabled right out of the box. Easily identifiable on the network.
• On-Board Web Server: For simple browser based configuration
• Online Software Updates:Download the latest software and firmware updates from the internet directly to the control module.
• Post-installation Leveling: Allows for screen position refinement after the mount is installed.

Specifications:

• TV Size: 55"- 100"
• Weight Capacity: 125 lbs
• Mounting Pattern: Up to 600 x 600
• Heavy Duty Steel: 3-5.5 mm
• Swivel: 25 degrees left/right
• Vertical Drop: Up to 30 inches
• Off-The-Wall-Distance: 20.5"-24"
