Provides Safe and Noise Filtered Power to remote Plasma Screens,
LCD’s and Ceiling Projectors

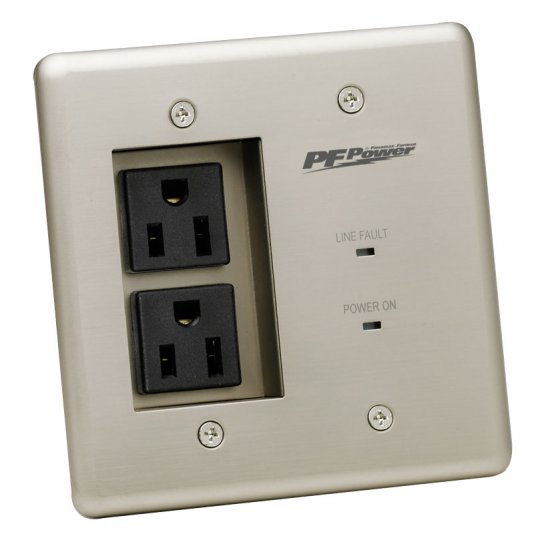

Two recessed AC receptacles deliver power to remotely located devices. Enlarged faceplate (4.5" x 4.5") accommodates oversized wall cutouts. Line fault LED to indicate an overvoltage condition with the power to the MIW-POWER -PRO-PFP. Power ON LED indicates power is being supplied to the MIW-POWER-PRO-PFP outlets.
Voltage monitoring Circuit protects equipment against prolonged over voltages by disconnecting the power and reconnecting it when safe power returns.
May be used in conjunction with MIW-DUAL-SIGNAL BAY PFP and signal line modules (not included).
AC Circuit
AC Outlets, Total |
2 |
Line Voltage |
120V, 60Hz |
Total Current Capacity |
15A |
UL 1449 Suppression Rating |
330V |
Protection Modes |
L-N, L-G, N-G |
Energy Dissipation |
546 Joules |
Peak Impulse Current |
32,500 Amps |
Catastrophic Surge Circuit |
Yes |
Thermal Fusing |
Yes |
Voltage Monitoring Circuit
Over-voltage Shutoff |
142 VAC ± 5 VAC |
Design and specifications subject to change without notice due to product improvement |
Power Outlet Faceplate
Over-voltage Shutoff |
142 VAC ± 5 VAC |
Noise Filtration |
Level 1 |
Signal Line Protection |
Not included (modules sold seperately). |
Shipping Dimensions, Weights & UPC Codes
Single Pack |
- Dimensions: 4.5" W x 2" D x 4.5" H
- Weight: 2 lbs.
- UPC: 0 50616 00840 2
|
Master Pack |
- Dimensions: 11" W x 7" D x 11" H
- Quantity: 8
- Weight: 16 lbs.
- UPC: 5 00 50616 00840 7
|
Three (3) Year Product Warranty and Limited Lifetime Connected Equipment
Protection Policy when properly installed using MIW-DUAL-SIGNAL BAY PFP and appropriate MIW Module (both sold separately).
