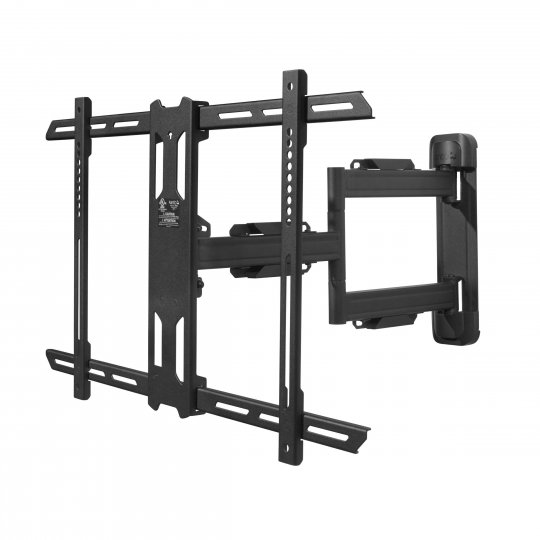

Full Motion TV Mount

The PS350 provides an amazing range of motion, offering 22" of extension yet sitting less than 2" from the wall when pushed in. Capable of accommodating TVs up to 60" and weighing 88 pounds, PS350 is simple to install and easy to use. The H-frame style TV plate fits a wide range of VESA sizes. The attractive solid steel construction includes a cable management system to hide your cables, and magnetic covers to hide the wall mount lag bolts.

Features:

Supports up to 88 Pounds

With its solid steel construction, the PS350 is designed to hold up to 88 pounds.

Extends Up to 22 Inches

The PS350 extends 22" from the wall to give you a variety of viewing options.

Clean Finish

The PS350 is made of solid steel with a durable powder coated finish – giving you a sophisticated look and feel.

Tilt Mechanism

With 12° of forward tilt and 2° of backwards tilt, the PS350 makes it easy to angle your TV just the way you want it.

Low Profile Design

When pushed back into place, your TV sits less than 2" from the wall.

Vesa Sizes to 600×400

The adjustable H-frame mounting brackets allow the PS350 to accommodate VESA sizes ranging from 200×75 to 600×400

Swivels up to 180 Degrees

The two extension arms allow you to swivel the TV up to 180°, depending on TV size. When pushed back against the wall, note that the center of the TV plate is centered with the wall mount.

Magnetic Covers

Magnetic covers attach to the wall plate to give you a clean, modern look.

Sleek Cable Management

An integrated cable management system allows you to route your power and video cables neatly between the TV and the wall.

Everything You Need

Because every installation is unique, PS350's are carefully packaged with all the lag bolts, anchors, mounting bolts, washers and spacers that you could need. Everything is labeled with clear instructions that correspond with the manuals in order to simplify your installation.

Specifications:

• TV Sizes: 37" to 60"
• Weight Allowance: 88 lbs (40 kg)
• VESA Sizes: 200×75 to 600×400
• Wall Plate: Single stud mounting
• Tilt: +12° to -2°
• Swivel: 180° at full extension (with 37" TV)
• Extension: 22" (56.1 cm) from the wall
• Profile: Sits 1.9" (4.7 cm) from the wall
• Material: Solid steel with durable powder coated finish
• Integrated cable management
• Adjustable horizontal leveling
• Includes: Installation Manual
• All mounting hardware for wood stud and concrete installation
• Product weight: 14.6 lbs (6.6 kg)
