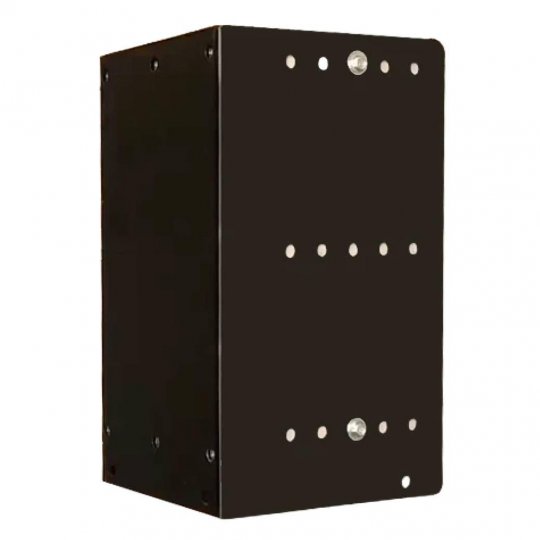

The AB40 Horizontal Adapter serves as a horizontal adapter for the MM340, MM540 and MM700 mounts, providing a 90-degree bridge between their wall plate and the TV mount lifting arm. This allows the wall plate to lay flat on a horizontal surface such as a large shelf or inside a recessed alcove.

Another application for the AB40 Horizontal Adapter Bracket is as a pass-through support for the when mounting the MM340, MM540'and MM700 mounts to thin brick facades or simulated stone panels made from foam, neither of which are strong enough to support the weight of a MantelMount.

Features:

• Serves as a horizontal adapter for the MM340, MM540 and MM700 mounts.
• Also used as a pass-through support on Stone/Brick facades for the MM340, MM540 and MM700 mounts.
• Matte Black Powder Coated to match MantelMount
• Used in conjunction with the SSB40 Adapter for the MM340 or MM540 mounts.
• Includes
• Adapter Bracket,
• Adapter Brace, (10) Hex Bolt M8 x 1.25 x 15mm,
• (10) Lock Nut M8 x 1.25mm.

Note:Two covers are included with all MM540 Enhanced Mount and MM700 Pro Mount orders. Covers are not included with the MM340 Standard Mount. Order this SKU as an add-on accessory for your MM340 mount or as a replacement for your included MM540 covers.(these do not fit the MM700). Also be aware these covers only conceal the wall plate, not the mount arm.

Specifications:

• Length: 310 mm
• Front Width: 163.5 mm
• Side Width: 179 mm
• Height: 2.5 mm
• Weight: 5 lbs.
