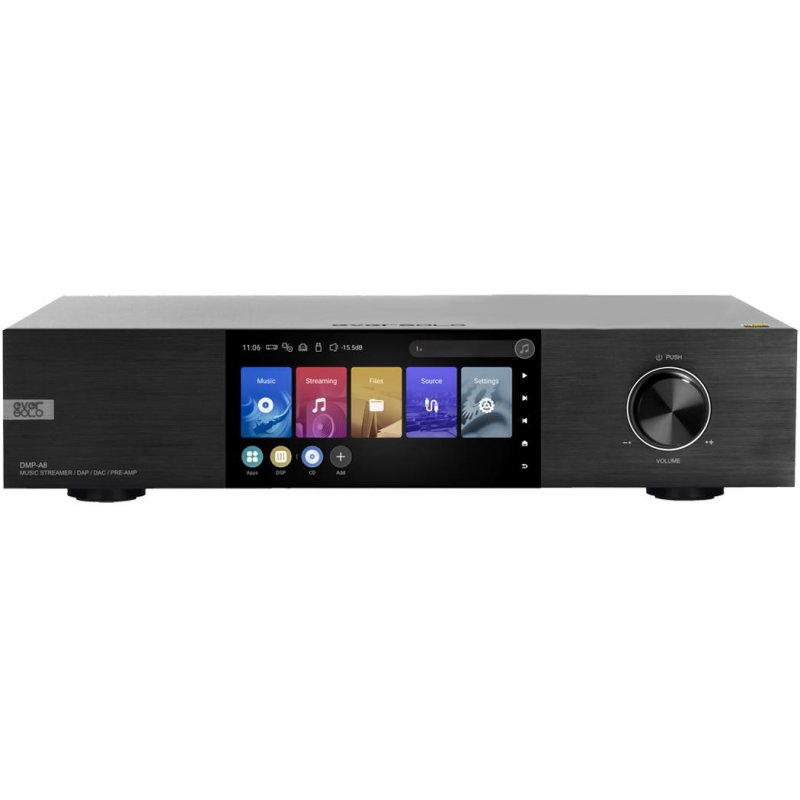

DMP-A8 Overview: Ultimate Perfection in Audio

The DMP-A8 is a cutting-edge audio product from Eversolo, combining the functionalities of a Music Streamer, Digital Audio Player (DAP), Digital-to-Analog Converter (DAC), and Preamp into a single device. Key features include:

• Xmos 3rd generation 16-core processor
• MQA Full Decoder
• 6 types of digital filters
• Linear + Digital Dual Power Supplies

Self-developed EOS Audio Engine

The DMP-A8 utilizes the self-developed EOS (Eversolo Original Sampling-rate) audio engine, supporting output at all original audio sampling rates. This bypasses Android SRC limitations, allowing direct audio passthrough of third-party apps.

Versatile Master Recording Playback and Decoding

Supports various high-quality audio formats, including CD-quality (FLAC, WAV, APE), DSD512, and MQA technology for playing back master-quality audio files.

Aluminium Chassis and Unique Appearance

Constructed from aviation-grade aluminum with a CNC machined body, the DMP-A8 features a brushed panel and frosted anodized body for a classic yet modern look.

Large LCD Touchscreen with Exclusive User Interface

Equipped with a 6" LCD high-definition touchscreen, the DMP-A8 provides an intuitive user interface for system settings, local music library, and third-party apps.

Rich Inputs and Outputs

Functions as a digital turntable with various high-end DAC connections, supporting USB, optical, coaxial, and Bluetooth audio inputs. It can be connected directly to active speakers or power amplifiers.

Flexible Storage Expansion

Includes an M.2 NVMe SSD slot for convenient storage expansion, supporting SSDs up to 4TB. External storage devices can also be connected through the USB OTG port.

Dual Power Supplies Design

Features a dual power supply design with the 3rd generation XMOS 316 audio processor for high-speed and high-bandwidth USB audio transmission.

AK4499EX / AK4191EQ Digital-analog Separation DAC Solution

Utilizes the VELVET SOUND series from AKM, offering world-class performance and a focus on a perfect re-creation of the original sound.

Dual High-precision Clocks

Incorporates 2 ultra-low phase noise femtosecond high-precision clocks for audio decoding, effectively suppressing jitter and ensuring accurate conversion of digital-to-analog signals.

Fully Balanced Analog Preamplifier Circuit

Equipped with a fully balanced preamplifier function, supporting XLR/RCA analog inputs, +10dB analog gain, and ultra-low noise and distortion.

R2R Volume Control Circuit

Features a fully balanced analog volume adjustment network composed of precision resistors and relays for accurate volume control and noise suppression.

• Model: EVERSOLO DMP-A8
• Display: 6" LCD touchscreen
• Internal Memory: 4GB DDR4 + 64GB eMMC
• DAC: AK4191EQ + AK4499EX
• Audio Processor: XMOS XU316
• Op-amp Chip: OPA1612
• Power Supply: High-quality, low-noise linear + digital dual power supply
• SSD: Support M.2 NVME 3.0 2280 protocol, up to 4TB (SSD not included)
• USB-A Port: USB 3.0 * 2
• Ethernet: RJ-45 (10/100/1000Mbps)
• WiFi: WiFi 2.4G + 5G dual band
• Playback and DAC Decoding: Support up to stereo DSD512, PCM 768KHz 32Bit
• Music Service: Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP
• Streaming: Air Play, DLNA, Tidal Connect, etc.
• Bluetooth Audio Input: Bluetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC
• USB-B Audio Input: Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit
• Optical/Coaxial Audio Input: Support up to stereo PCM 192KHz 24Bit, Dop64
• HDMI ARC: Support up to stereo PCM 192KHz 24Bit
• Analog Preamp Audio Input: XLR(Balanced) * 1 + RCA(Unbalanced), Maximum Gain +10dB
• USB Audio Output: Support up to stereo DSD512, PCM 768KHz 32Bit
• IIS Output: Support up to stereo DSD512, PCM 768KHz 32Bit
• Optical/Coaxial Audio Output: Support up to stereo PCM 192KHz 24Bit, Dop64
• Analog Audio Output: Preamp Audio Output: XLR(Balanced) + RCA(UnBalanced)
• XLR Output Audio Characteristics:
  • Output level: 4.2V
  • Frequency response: 20Hz~20KHz(�0.25dB)
  • Dynamic range: > 128dB
  • SNR: > 128dB
  • THD+N: < 0.00009%(-120dB) @No-wt
  • Crosstalk: > -121dB
• RCA Output Audio Characteristics:
  • Output level: 2.1V
  • Frequency response: 20Hz~20KHz(�0.25dB)
  • Dynamic range: > 125dB
  • SNR: > 125dB
  • THD+N: < 0.00010%(-119dB)@A-WT
  • Crosstalk: > -121dB
• Control Method: Mobile App, Touch screen control, IR + Bluetooth remote control
• PSU: AC 110~240V 50/60Hz, Rated Power: 16W
• Dimensions: W 388mm * L 248mm * H 90mm
• Packing List: Power cable * 1, Remote Control * 1, Screwdriver * 1, User manual * 1
