Equipped with a built-in sensor to detect and track sound sources, the TOA Real-time Steering Array Microphone System captures voices clearly and continuously from either side, above or below. This frees speakers to move back and forth in the vicinity of the podium, turn or tilt their heads to address different sections of the audience, or gesture naturally without concern for the location of the microphone. Placed unobtrusively on top of the podium or pulpit, this innovative voice-tracking microphone completely eliminates the interference and inconvenience of gooseneck or handheld mikes. Intuitive parameter setting by iPad adds further convenience.

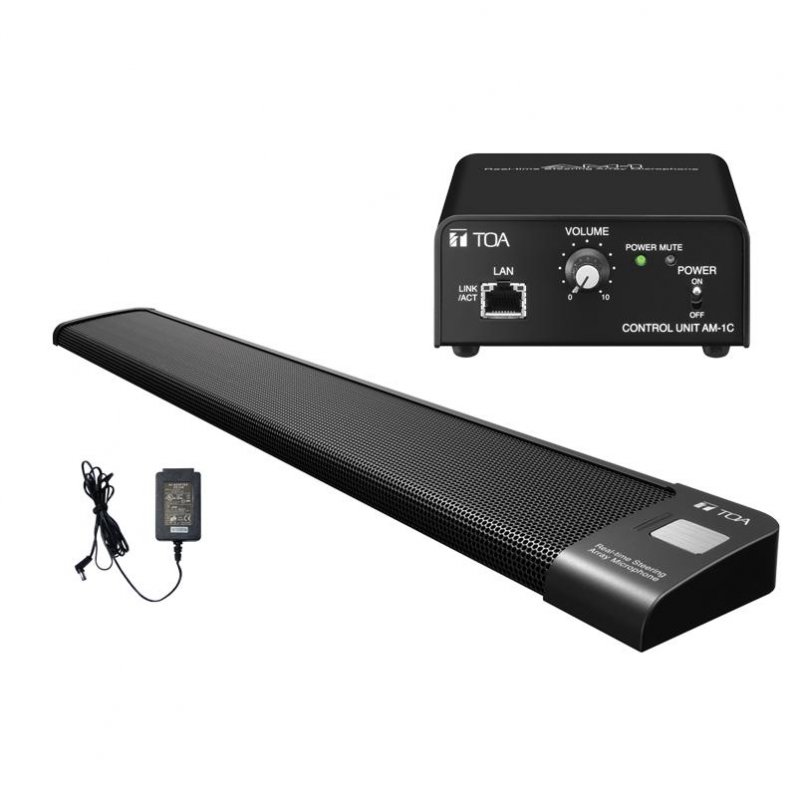

The AM-1SET Includes:
- AM-1MBQAMX Real-Time Steering Array Microphone System
- AM-1CQAM Real-Time Steering Array Microphone Control Unit
- AD-246 AC Adapter
Specifications:
Real-Time Steering Array Microphone (AM-1MBQAMX)
- Power Source: 24DCV 200mA (supplied from Control Unit)
- Frequency Response: 150Hz - 18kHz
- Directivity (Beam Width): 50°
- Maximum Cable Distance: 200ft / 70m (between microphone and control)
- Applicable Cable: Twisted two-core, shielded cable
- Mute Function: Mechanical mute switch
- Dimensions: 485.14 (W) x 19.812 (H) x 59.944 (D) mm (19.1" x 0.78" x 2.36")
Control Unit (AM-1CQAM)
- Power Source: 24DCV 400mA (including microphone power / supplied by AC adapter)
- S/N Microphone: Over 90dB
- Input: Microphone input (audio and communication),female XLR 3P x 1
- Audio Output: +4dBu/-10dBV (selectable), male XLR 3P x 2
- AES/EBU 24bit 110Ω, male XLR 3P x 1
- Network Port: RJ45
- Accessory: AC adapter
AC Adapter (AD-246)
- Power Source: 110 - 120 V AC, 50/60 Hz
- Output: 24 V DC, 1 A
- Current Consumption: 420 mA (rated output)
- Cord Length: 1.8m
- Plug : RC6705 center "+"
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Finish: Case: Heat-resistant resin, black
- Weight: 130 g (0.29 lbs)
- Accessory: Power Cord (2 m) x 1
Product Details
- TOA AM-1SETB
-
Brand New : Factory Sealed
- EFLC : 6357
