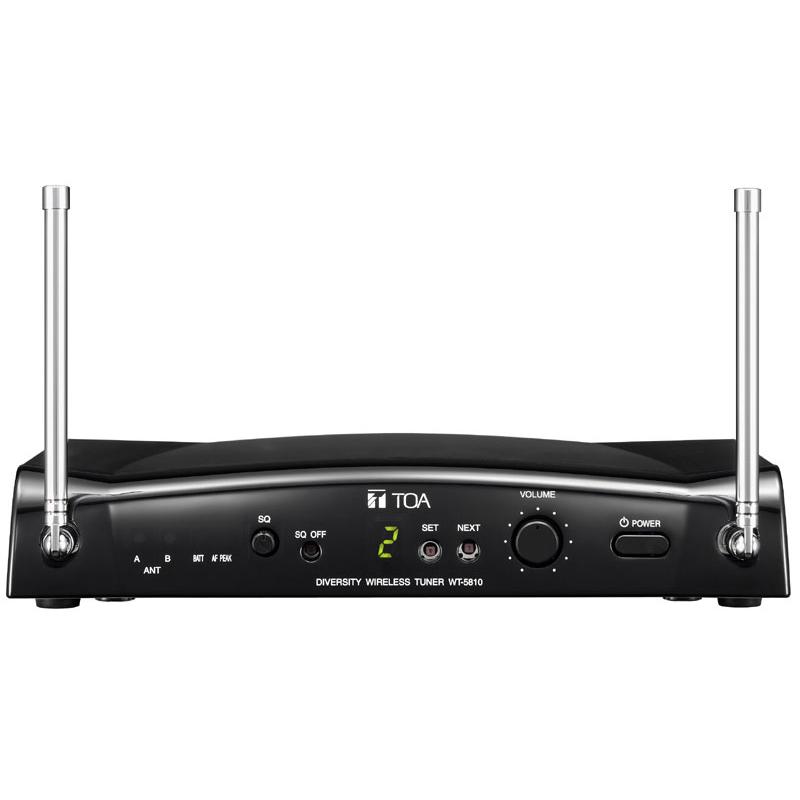

Space Diversity Tuner

Features:

• Compact design for shelf-mount applications
• Scanner function
• Transmitter battery status display
• 16 selectable channels
• TOA Space Diversity reception

Front Panel

• Built-in antennas (2)
• Output volume control
• Power switch
• Channel display and adjust
• Squelch adjust and bypass
• LEDs: Antenna A/B, Battery, Peak and Power

Rear Panel

• Outputs: XLR-M (mic) and 1/4" phone jack (line)
• Mix-In 1/4" jack (line)

Specifications:

• Power Source: 120 V AC (Supplied AC-DC adapter must be used.)
• Power Consumption: 130 mA (12 V DC)
• Receiving Frequency: 636 – 698 MHz, UHF
• Selectable Channel: 16 channels
• Receiving System: Double super-heterodyne
• Diversity System: Space diversity
• AF Mixing Input: –20 dB*, 10 kΩ, unbalanced, phone jack
• Antenna: Rod antenna
• Receiving Sensitivity: Over 90 dB, S/N ratio (20 dBµV input, 40 kHz deviation)
• Squelch Sensitivity: 18 – 40 dBµV variable
• Squelch System: Using together of noise SQ, carrier SQ and tone SQ
• Tone Frequency: 32.768 kHz
• Indicator: ANT A/B, Audio (peak), Battery alarm, Channel number
• Channel Check: Usable frequencies scanning
• S/N Ratio: Over 104 dB (A-weight, unbalanced output)
• Harmonic Distortion: Under 1% (typical)
• Frequency Response: 100 – 15000 Hz, ±3 dB
• Operating Temperature: –10°C to +50°C
• Finish: Resin, black
• Dimensions: 206 (w) x 40.6 (h) x 152.7 (d) mm (excluding antenna)
• Weight: 590 g

AF Output:

• MIC: –60 dB*, 600 Ω, balanced, XLR-3-32 type connector
• LINE: –20 dB*, 600 Ω, unbalanced, phone jack
