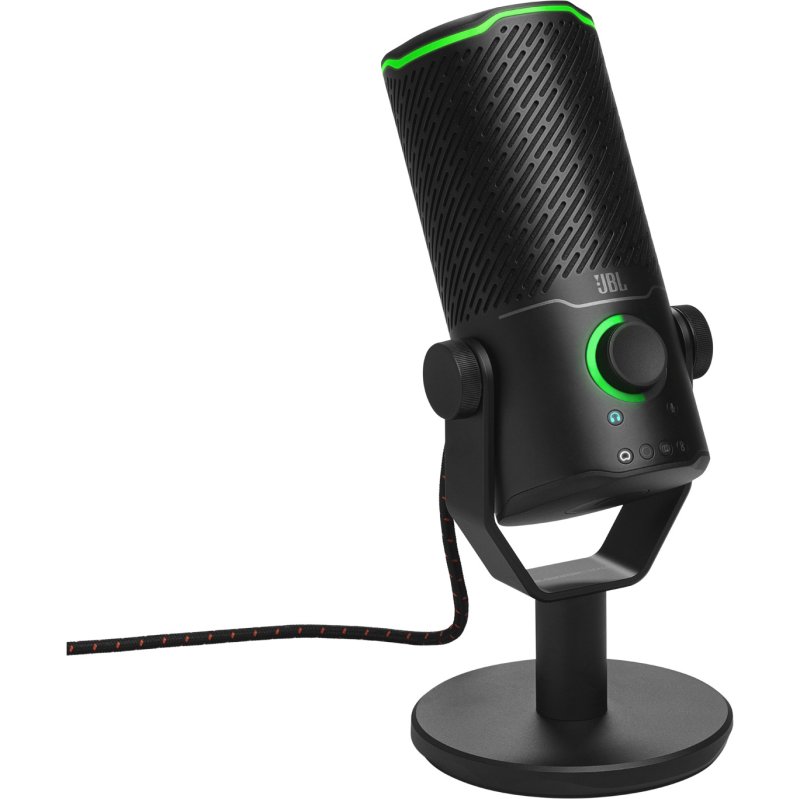

JBL Quantum Stream Studio Quad-Pattern Premium USB Microphone

The JBL Quantum Stream Studio is a premium USB microphone designed for streaming, recording and gaming. Three 14 mm electret condenser microphones deliver a wide, flat frequency response and support recording at up to 192 kHz / 24-bit resolution to capture voices and other audio with excellent detail.

Four selectable pickup patterns make the Quantum Stream Studio adaptable to different recording setups. Cardioid is designed for a single speaker, bi-directional for interviews with people on opposite sides of the microphone, stereo for two people positioned on the same side or recording a musical instrument, and omnidirectional for podcasts or streams with multiple participants.

An integrated dynamic range compressor helps maintain consistent voice levels, reducing clipping when you speak loudly and boosting quieter speech. A real-time RGB VU meter provides visual feedback of your recording level, while the touch-sensitive mute control turns the RGB grille lighting red when the microphone is muted.

A 3.5 mm headphone connection provides direct voice monitoring, with controls for headphone volume and the balance between PC audio and your monitored voice. JBL QuantumENGINE software provides additional control over EQ, gain, noise reduction, microphone testing and RGB lighting.

Features:

• Three 14 mm electret condenser microphones
• Up to 192 kHz / 24-bit recording
• Four selectable pickup patterns: cardioid, omnidirectional, stereo and bi-directional
• Dynamic range compressor helps maintain consistent voice levels
• Tap-to-mute touch control
• RGB grille indicator turns red when muted
• Real-time RGB VU meter for monitoring recording levels
• 3.5 mm headphone connection for direct voice monitoring
• Control over headphone volume and game/voice monitoring balance
• JBL QuantumENGINE compatibility
• Adjustable EQ, gain and noise reduction through JBL QuantumENGINE
• Customizable RGB lighting
• Included zinc alloy desktop stand
• Compatible with boom arms and C-clamp mounting systems
• Metal microphone body and grille

Specifications:

• Microphone Type: 3 x 14 mm electret condenser microphones
• Pickup Patterns: Cardioid, omnidirectional, stereo and bi-directional
• Frequency Response: 50 Hz – 16 kHz
• Sensitivity: -37 ± 3 dB (1 kHz @ 1 Pa, 0 dB = 1 V/Pa)
• Maximum SPL: 110 dB
• Sample Rates: 44.1 kHz / 48 kHz / 96 kHz / 192 kHz
• Bit Rate: 16 / 24 bit
• Power Required / Consumption: 5V / 500mA
• Headphone Amplifier Impedance: 16 ohms / 32 ohms
• Headphone Power Output: 42 mW RMS per channel at 32 ohms
• Headphone THD: <0.5% at 32 ohms
• Headphone Frequency Response: 20 Hz – 20 kHz
• Headphone Signal-to-Noise Ratio: 92 dB at 48 kHz sample rate; 93 dB at 192 kHz sample rate (A-weighted)
• Dimensions with Stand (L x W x H): 3.54 x 3.54 x 8.05 in (9.0 x 9.0 x 20.45 cm)
• Weight with Stand: 1.283 lb (582 g)

What's in the Box:

• 1 x JBL Quantum Stream Studio microphone
• 1 x USB power cable
• 1 x Warranty / Warning
• 1 x QSG
