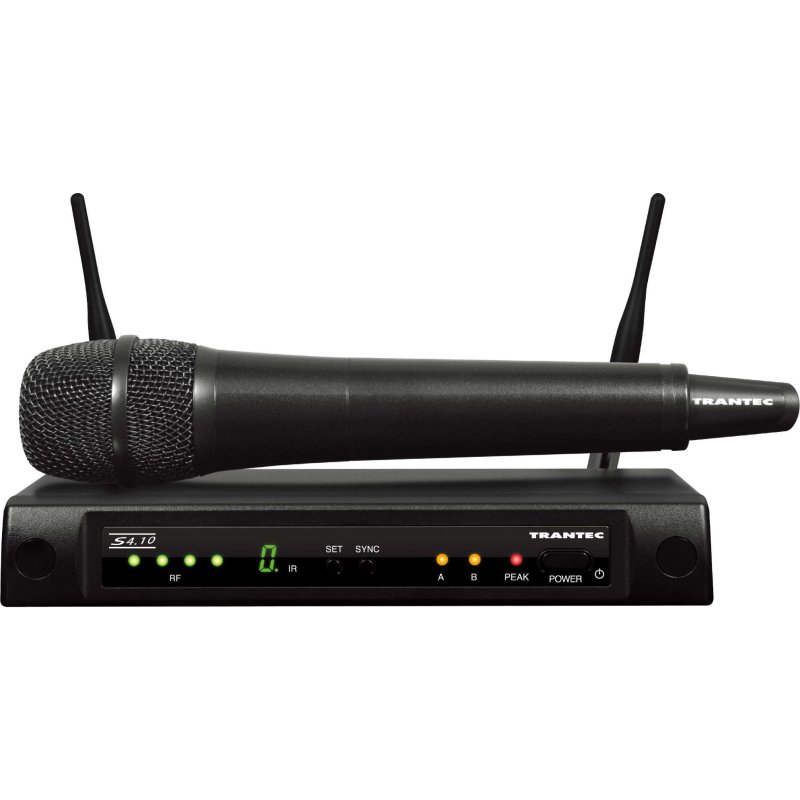

Trantec S4.10-HD-AM RM3 UHF Wireless Handheld Microphone System
The Trantec S4.10-HD-AM RM3 is a UHF wireless microphone system designed for vocal and speech reinforcement applications. The complete system includes a handheld dynamic wireless microphone and an antenna-diversity receiver.
Operating across the 506-538 MHz UHF frequency range, the S4.10 system provides up to 16 selectable channels depending on region. Quick channel scanning and infrared synchronization simplify setup, while a compander circuit helps minimize the influence of ambient noise.
The handheld transmitter operates for approximately 10 hours from a single AA alkaline battery. Battery status can be monitored from the receiver, helping the user identify a low battery before it interrupts operation.
Features
- UHF wireless handheld microphone system
- 506-538 MHz operating frequency range
- Up to 16 selectable channels depending on region
- Antenna-diversity receiver
- Quick channel scanning and automatic channel setup
- Infrared channel synchronization
- PLL-synthesized wireless operation
- Compander circuit helps minimize ambient noise
- Receiver battery-life indicator
- Approximately 10 hours of handheld microphone operation from one AA alkaline battery
- Balanced XLR and unbalanced 1/4-inch receiver outputs
Specifications
System
- System Components: 1 handheld wireless microphone and 1 receiver
- Frequency Range: 506-538 MHz UHF
- Selectable Channels: Up to 16 channels depending on region
- Tuning Steps: 25 kHz
- Tone Frequency: 32.768 kHz
- Total Harmonic Distortion: 1% or less at 1 kHz
- Functions: IR sync, channel scan and battery-life indicator
Receiver
- Diversity System: Antenna diversity
- Frequency Response: 50 Hz-15 kHz
- Receiving Sensitivity: 10 uV at 45 dBA S/N
- Squelch: Tone SQ, Carrier SQ and Noise SQ
- Power: 11-18 VDC, 300 mA using supplied AC-DC adapter
- Maximum Balanced Output: 16 dBu via XLR
- Maximum Unbalanced Output: 10 dBu via 1/4-inch jack
- Dimensions: 8.46 x 1.54 x 4.02 in (215 x 39 x 102 mm), excluding antenna and BNC
- Weight: 1.06 lb (480 g)
Handheld Microphone
- Power: 1 x AA 1.5 V alkaline battery
- Frequency Range: 506-538 MHz UHF
- RF Carrier Power: 10 mW
- Oscillator: PLL synthesizer
- Maximum Input Level: 140 dB SPL
- Frequency Response: 80 Hz-15 kHz
- Battery Life: Approximately 10 hours
- Dimensions: 9.84 x 2.17 in (250 x 55 mm)
- Weight: 0.54 lb (245 g) with battery
What's in the Box
- Trantec S4.10 Handheld Wireless Microphone
- Trantec S4.10 Wireless Receiver
- AC Adapter
- Microphone Holder
Product Details
- Trantec S4.10-HD-AM RM3
-
Brand New : Factory Sealed
- EFLC : 17231
- Write a review
Warranty
One Year Warranty
- Parts and Labour Warranty
- Canada-wide Coverage
- Trantec Authorized
