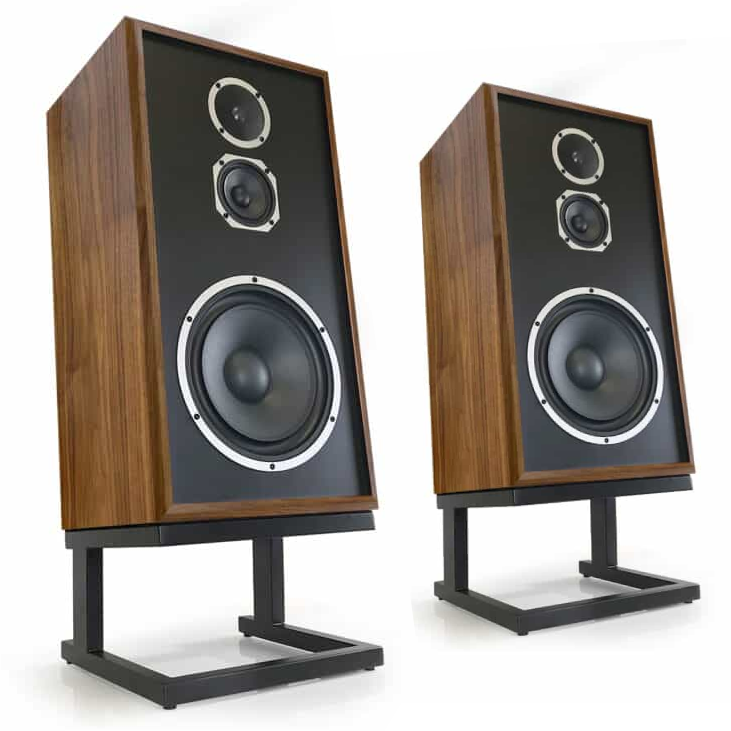

The legendary KLH Model Five by Henry Kloss

The legendary KLH Model Five was first introduced in 1968 and served as the heart and soul of KLH’s success throughout the late 1960’s and 1970’s. At its core was the acoustic suspension design that dominated the loudspeaker industry for decades and made the Model Five one of the best-selling loudspeakers of its era. In 2021, KLH re-introduced the Model Five; building on the original acoustic suspension design and using the most advanced loudspeaker technology available today.

Features

• ECO-FRIENDLY WALNUT VENEER FINISH
• Iconic Mid-Century Modern Styling
• Acoustic Suspension Design – The most accurate and linear enclosure design available today
• Three-Position Acoustic Balance Control to tailor the loudspeaker’s output for the most
• difficult acoustic environments
• Dedicated midrange driver to reproduce the critical mid-frequency band
• Non-Resonant Die-Cast Aluminum Midrange & Woofer Frames
• Die-Cast Aluminum Tweeter Faceplate
• KLH cabinetry featuring a structurally reinforced 3⁄4” MDF enclosure
• Thirteen component network using high-quality iron-core inductors & Mylar capacitors
• Each speaker includes its own 5° slant riser base made of powder coated 14-gauge steel
• Low-profile magnet attached grille

• Frequency Response: 42Hz – 20,000Hz +/- 3dB
• Low Frequency Extension: -10dB @ 32Hz
• In-Room Sensitivity: 90.5dB @2.83V / 1M
• Free-field Sensitivity: 87.5dB @ 2.83V / 1M
• Power Handling: 200 Watts / 800 Watts Peak
• Recommended Amplification: 20 Watts to 200 Watts
• In-Room Maximum SPL: 112.3dB
• Impedance: 6 Ohms (3.5 ohm minimum @140 Hz)
• Horizontal Dispersion: 140° Degrees
• Features: Three-Position Acoustic Balance Control
• Crossover Frequency: MF: 380Hz (2nd Order Electro-Acoustic)
• HF: 2,850Hz (2nd Order Electro-Acoustic)
• High Frequency Driver: 1" Aluminum Dome with Soft
• Rubber Suspension
• Mid Frequency Driver: 4" Pulp-Paper Cone with Reverse
• Roll Rubber Suspension
• Low Frequency Driver: 10" Pulp-Paper Cone with Reverse
• Roll Rubber Suspension, 2" Diameter
• Flat-Wire Voice Coil
• Enclosure Material: Structurally Reinforced ¾" Medium
• Density Fiberboard
• Inputs: Five-Way Gold-Plated Binding Posts
• Height: 34.25" (87.0cm) w/ Included Riser Base
• 26.0" (66cm) w/o Riser Base
• Width: 13.75" (35.0cm)
• Depth: 13.0" (33.0cm) w/ Included Riser Base
• 11.5" (29.2cm) w/o Riser Base
• Weight: 44Ibs. (20.0kg) w/o Riser Base
• 52Ibs. (23.6kg) w/ Included Riser Base

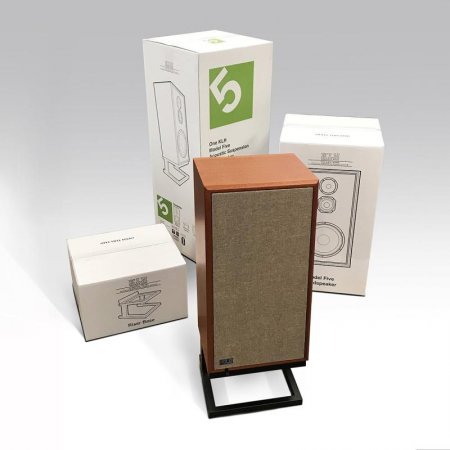

• Included Accessories: 5° Slant Riser Base
