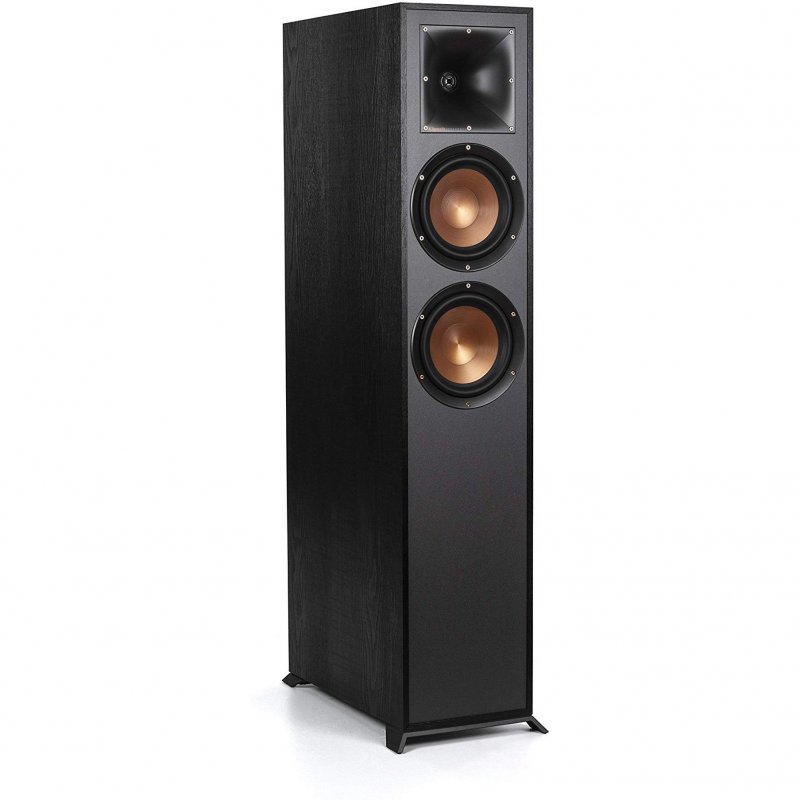

Built with an elevation channel integrated into the top, the R-625FA Dolby Atmos® floorstanding speaker not only delivers stereo sound towards the listener, but also reflects sound off the ceiling to deliver the immersive, overhead Dolby Atmos® experience.

Features

• Built-in Elevation Channel for Dolby Atmos®
• Dual 1" Aluminum Diaphragm Compression Tweeters
• Main Channel: 6.5" Copper Spun Magnetically Shielded IMG Woofers
• Height Channel: 5.25" Copper Spun Magnetically Shielded IMG Woofers
• 90x90 Square Tractrix Horn
• Bass-Reflex via Rear-Firing Tractrix® ports
• Strong, Flexible Removable Magnetic Grille
• Dimensions: 40” x 9.4” x 17.3”

DOLBY ATMOS

To put it simply, Dolby Atmos® is the greatest advancement in home and cinema audio since surround sound. The addition of elevation speakers reflects sound from the ceiling to put sound anywhere in your room - making you feel like you’re truly in the middle of the action.

TRACTRIX® HORN TECHNOLOGY

Klipsch exclusive 90x90º Tractrix® horn technology ensures that the R-625FA high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.

LINEAR TRAVEL SUSPENSION TWEETER WITH KAPTON® SUSPENSION

Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton®, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.

SPUN COPPER IMG WOOFERS

Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion. When paired with the Tractrix Horn-Loaded LTS Tweeter, it provides speaker efficiency highest in its class.

REAR TRACTRIX® PORT

The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.

SLEEK DESIGN

Exposed fasteners, angled feet, low profile magnetic grilles and a scratch-resistant, textured wood grain vinyl give the R-625FA floorstanding speaker a polished, modern appearance.

SPECIFICATIONS - MAIN CHANNEL

• FREQUENCY RESPONSE : 38Hz - 21kHz +/- 3dB
• SENSITIVITY : 96 dB @ 2.83V/1M
• POWER HANDLING (CONT/PEAK) : 100W/400W
• NOMINAL IMPEDANCE : 8 ohms Compatible
• CROSSOVER FREQUENCY : 2,000 Hz
• HIGH FREQUENCY DRIVER : 1” Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
• LOW FREQUENCY DRIVER : Dual 6.5” spun-copper IMG woofers
• ENCLOSURE MATERIAL : MDF
• ENCLOSURE TYPE : Bass-Reflex via rear-firing Tractrix®ports
• INPUTS : Single Gold Plated Binding Posts
• HEIGHT INCHES (MM) : 40” (1017 mm)
• WIDTH INCHES (MM) : 9.4” (240 mm)
• DEPTH INCHES (MM) : 17.3” (439 mm)
• PRODUCT WEIGHT LBS (KG) : 49 lbs (22.2 kg)
• FINISHES : Black Textured Wood Grain Vinyl
• INCLUDED ACCESSORIES : Injection molded feet & screws
• BUILT FROM : 2018

SPECIFICATIONS - HEIGHT CHANNEL

• FREQUENCY RESPONSE : Conforms to Dolby Atmos Specifications
• SENSITIVITY : Conforms to Dolby Atmos Specifications
• POWER HANDLING : 75W/150W
• NOMINAL IMPEDANCE : 8 ohms Compatible
• HIGH FREQUENCY DRIVER : 1” Aluminum LTS tweeter mated to a 90 x 90 square Tractrix® Horn
• LOW FREQUENCY DRIVER : 5.25” spun-copper IMG woofer
• ENCLOSURE TYPE : Acoustic Suspension
• INPUTS : Single Gold Plated Binding Posts
