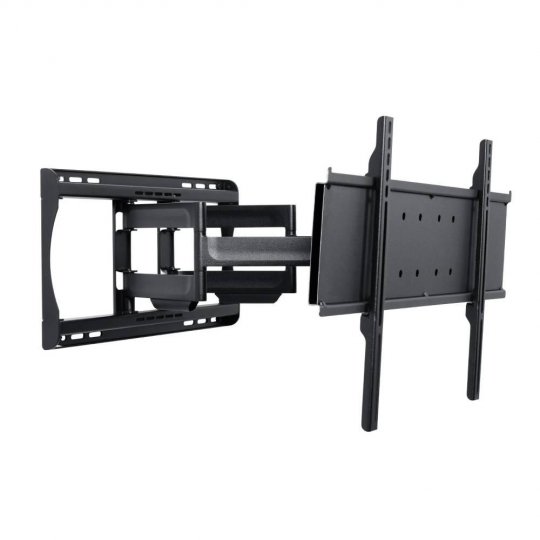

Peerless-AV's Outdoor Articulating Wall Mount is the ideal mounting solution for 42"-75" indoor or outdoor displays. The EPA762PU is specially coated with a protective anti-corrosive e-coating that repels against damaging temperature-related and outdoor corrosive elements. This all-season mounting solution is ideal for patios or decks, as well as installations in humid indoor areas like sun-rooms, locker rooms, bathrooms, car washes, indoor pools or water parks.

Display Positioning Options

Arm extends up to 22.72" (577mm)

Increlok™ Tilt

Locks the display tilt angle at -5 º, 0 º, 5 º, 10 º or 15º

Integrated Cable Management

Protects, contains and conceals cables for a clean, professional installation

Universal Mounting Pattern

Accommodates a variety of display mounting patterns

Features:

• Made of corrosionresistant materials for weather resistance
• Fits displays with mounting patterns up to 730 x 405mm (28.75"W x 15.95"H) and up to 600 x 400mm VESAºcompliant
• Universal model extends from 4.50" (114mm) to 22.72" (577mm) from the wall
• Open wall plate design for increased wall access and improved aesthetic
• Universal mounting pattern accommodates a variety of display mounting patterns
• IncreLokTM tilt allows adjustment of +15º/5º
• Wood, concrete and cinder block mounting hardware included
• Includes all necessary wall and display attachment hardware

Specifications:

• Dimensions (W x H x D): 30.75" x 16.89" x 4.50"-22.72"(781 x 429 x 114-577mm)
• Product Weight: 26.8lb (12.2kg)
• Load Capacity: 110lb (49.9kg)
• Finish: E-Coat Covered with Outdoor Powder Paint
• Available Colors: Black
• Minimum to Maximum Screen Size: 42" to 75"
• VESA Pattern: 600 x 400
• Mounting Pattern: 600 x 400mm (28.75 x 15.95")
• Weight Capacity: 110lb (49.9kg)
• Color: Black
• Finish: Powder Coat
• Security Features: Non-Security Hardware
• Tilt: +15 / -5
• Swivel Yaw: +45/-45
• Increlock Increments: -5, 0, 5, 10, 15
• Distance from Wall: 4.50-22.72" (114-577mm)
