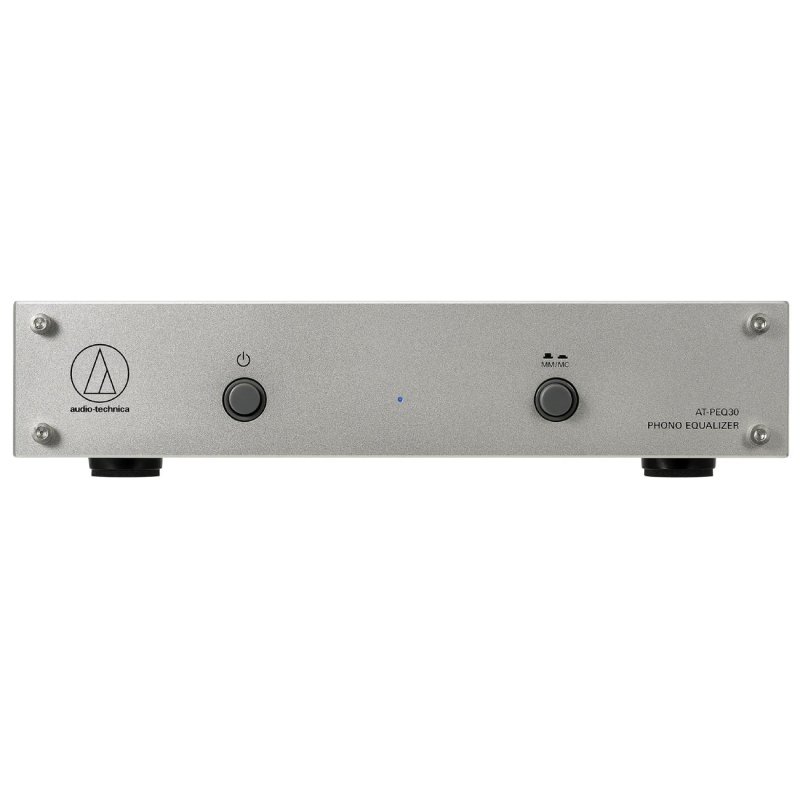

The AT-PEQ30 phono equalizer is designed specifically to upgrade a turntable with a built-in phono amplifier or to add a phono. It is compatible with turntables with VM (dual magnet), MM (moving magnet), and MC (moving coil) cartridges. The PEQ30 benefits from Audio-Technica’s years of analogue audio expertise and uses the finest quality parts in a layout that is optimized for low noise and minimum distortion.
Features:
- Selectable MM and MC input with fixed gain and impedance allows for compatibility with a wide range of moving magnet and moving coil cartridges
- High-quality FET inputs ensure a low noise signal when incorporated with a negative feedback-type phono equalizer circuit
- Precision components provide an excellent RIAA response for best-in-class performance
- The all metal construction enclosure provides superior isolation from radio and electronic noise interference
- The machined aluminium front panel and gold-plated input/output RCA connectors are examples of the high-grade material used throughout
Specifications:
- Input Impedance:
- MM type: 47 kiloohms
- MC type: 120 ohms
- Input Sensitivity:
- MM type: 4.5 mV
- MC type: 0.28 mV
- Rated Output:
- MM type: 250 mV
- MC type: 250 mV
- Gain:
- MM type: 35 dB
- MC type: 59 dB
- Signal-to-Noise Ratio:
- MM type: 100 dB
- MC type: 74 dB
- RIAA Deviation (20 to 20,000 Hz):
- MM type: ±0.5 dB
- MC type: ±0.5 dB
- Power Supply: DC 15 V, 1.2 A
- Power Consumption: 2.5 W
- Dimensions: 47 mm (1.85") H x 197.5 mm (7.78") W x 125.5 mm (4.94") D (excluding protrusions)
- Weight: About 890 g
- Accessories Included: AC adapter
Product Details
- Audio-Technica AT-PEQ30
-
Brand New : Factory Sealed
- EAN : 4961310154097
- EFLC : 14291
