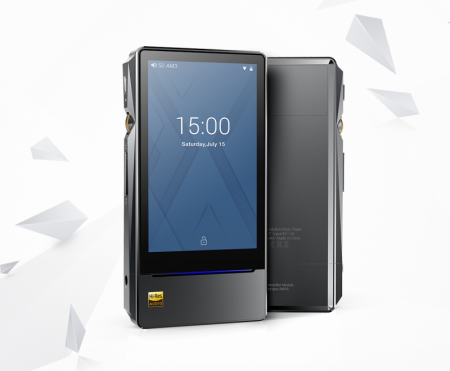

Thoroughly Transformed, Inside and Out

Android based, High resolution audio lossless playback portable music player

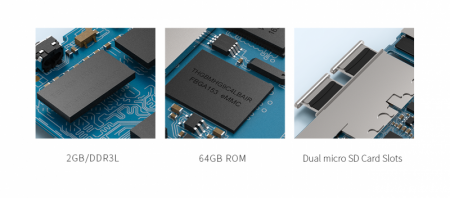

Copious 2GB RAM, 64GB of internal storage and 2 micro-SD card slots

The X7 Mark II is amongthe first of its kind in Chinese portable music players to adopt 268 of RAM, allowing it to seriously multi-task and to provide a more fluid experience. The player also comes with 64GB of internal storage and 2 micro-SD card slots, each supporting up to 256GB expansion cards. This means that the X7 Mark II is able to hold up to a whopping 576GB of music, enough for over 19,000 lossless music files, 30MB in size for each. With the X7 Mark II, you truly don't have to worry about leaving any of your music collection behind, whereveryou go.

Flagship DAC brings more resolution, more dynamic range, more soundstage

The X7 Mark II employs the 8-channel ESS ES9028PRO DAC. With an exceptional signal-to-noise (SNR) ratio of 129dB and a remarkable total harmonic distortion plus noise (THD + N) figure of -l20dB, this DAC is able to provide more resolving power, better dynamics, and better soundstage for greatly improved sound quality over its predecessor. When combined with the ability to skip Android's native audio re-sampling (ASRC) along with the ES9028PRO's unique THD compensation feature and special built-in filters, the X7 Mark II ensures that your music will sound sweet and musical,just like how it is supposed to.

All new amp module, serving up both balanced and single-ended flavors

Bundled with the X7 Mark II is the AMBA, an all-new amplifier module with both single-ended and balanced headphone outputs. The AMBA uses the widely-acclaimed AD862O precision, wide bandwidth JFET operational amplifier as well as the tailor-made OPA926 op-amp, which was exclusively designed for the X7 Mark II to satisfy FiiO engineers' need for a high-performing part. Before settling on the AMBA's final design, over the course of a year's worth of intense internal and external testing, FiiO engineers went through three major design revisions as well as nine different PCB designs. It was only after this constant iteration that we could achieve a sound that we were truly satisfied with.

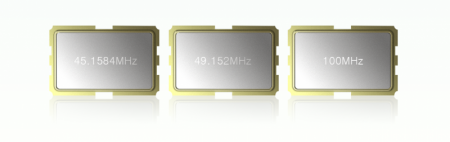

Three crystal oscillators for the ultimate reproduction of music

The X7 Mark II utilizes three separate crystal oscillators - one for the DSD and 44.1 kHz multiples sampling rates, and one for the 48kHz multiples sampling rates, as well as one for the 384 kHz sampling rate. Compared to the original X7, there are not only more crystal oscillators in the X7 Mark II but they also run at a faster rate. This guarantees that under all sampling rates there is radically reduced Jlttei', increased clock precision and stability, and overall more correct conversion from digital signals to analog.

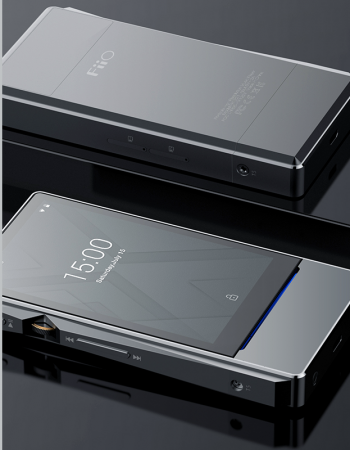

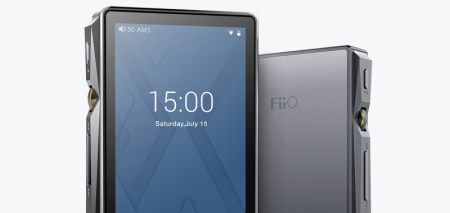

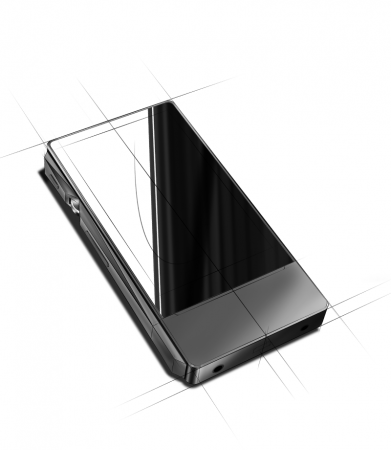

Every last detail refined, all in FiiO's distinctive design language

The X7 Mark II is of a totally new design compared to the original X7, now with design elements from its little brother the X5 3rd gen. For instance, both the side-mounted volume wheel of the X7 Mark II with its etched 45° lines and the red ring that encompasses the power button are both inspired by similar touches on the X5 3rd gen. By giving the new X7 such unique flourishes, vve solidify the link between the X7 Mark II and the X5 3rd gen as being part of the same, distinctive family of FiiO players. These are only some of the many details that have been thoroughly refined on the X7 Mark II to make it an exceptional portable music player.

Your eyes and fingers will thank you for in-cell touch technology

The high-definition 480*800 in-cell touchscreen of the X7 Mark II is a fantastic feast foryour fingers and eyes, and also facilitates easy operation ofthe device.

Precisely-sized to ensure great handling

The weight and dimension of the X7 Mark II have been fine-tuned and further refined compared to the original in order to ensure that its feel in the hands is even better than before. When you pick the new X7 Mark II up, your hands will immediately know.

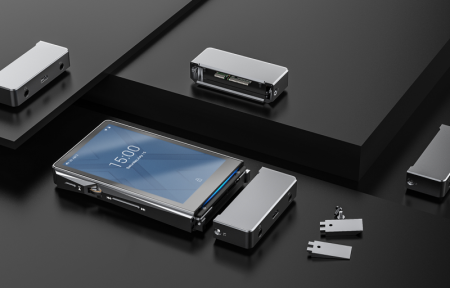

The sky's the limit with interchangeable amp modules

The X7 Mark II continues to adopt the highly flexible and groundbreaking interchangeable amp module design introduced by its predecessor. Though the new amp modules specifically designed for the new X7 are slightly different in design, the X7 Mark II is fully compatible with the original X7's various modules. Simply bolt on the included side mounts onto those amp modules and you are ready to listen!

Sleek lines with concealed micro-SD card slots

The concealed micro-SD card slots in the X7 Mark II are all-new, specifically designed to not only look beautiful but to also allow you to easily insert your expansion cards quickly and correctly.

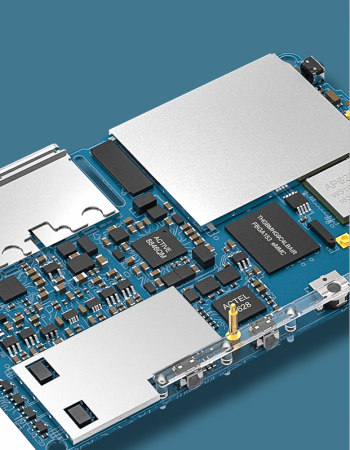

A breakthrough in internal design yet again

In the making ofthe X7 Mark II, not only were better parts and hardware used, but also much thought was given to how to make a design of the internals both more reliable and less prone to EMI (electromagnetic interference). As a result, seven specific areas of the PCB are specially shielded, and there is even double shielding forthe main control area and op-amps due to their importance in the maintaining excellent sound quality.

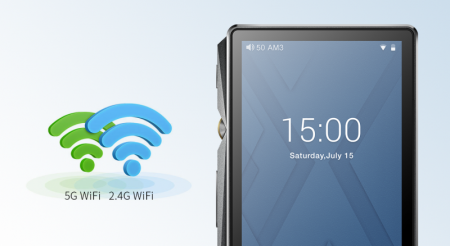

In a connected era, we expect a better wireless experience

Using Wi-Fi on the new X7 Mark II is a much better experience than on the original model, due to support of Wi-Fi on both the 2.4GHz and SGHZ frequency bands. This allows for more stable, stronger signal reception strength and faster speeds. In addition, FiiO has paid special attention to the internal design to ensure that all of your wireless signals, whether it be Wi-Fi, Bluetooth, etc., will not suffer from outside electromagnetic interference. All of this means that compared to the first generation, the new X7 is much better equipped to deal with EMI.

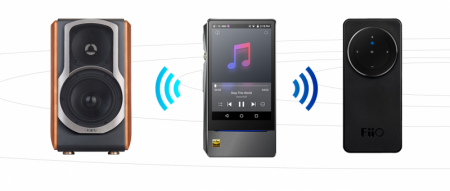

True wireless freedom with dual-mode Bluetooth

The X7 Mark II is fully capable of supporting the Bluetooth 4.1 and ath standards. Specifically, full support for Bluetooth 4.1 means the new X7 supports both the classic high-speed and BLE (Bluetooth low-energy) specifications, allowing it to pair withjust about any Bluetooth device. Combine this with support for ath and the X7 Mark II enables you to enjoy true high-resolution music without the hassles of wires.

Yet even more flexibility with both optical and coaxial output

On top of the coaxial output the original X7 was capable of, the new X7 can now also output optical signals, taking the X7 to new heights in its already impressive flexibility.

Satisfy your need for speed with a deeply-customized Android 5.1

The X7 Mark II uses a version ofAndroid 5.1 deeply customized and optimized from the core-level up for enhanced audio playback. Compared to stock Android 5.1, the version utilized in the new X7 is much faster and much less prone to freezing and stuttering for a silky-smooth experience.

Advanced 62 m I lnteal Storage automatic detection of lyrics and covers

The X7 is among the first of its kind in smart high-resolution lossless audio players to incorporate automatic detection and search of music lyrics and covers. No more having to manually search and download the correct album covers and lyrics for your tunes - saving you time and hassle.

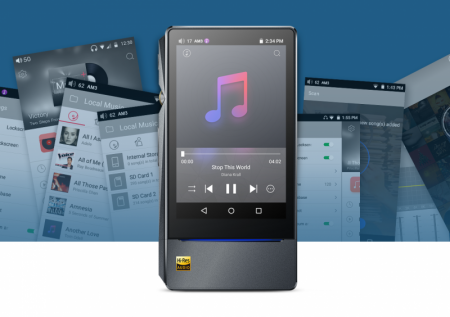

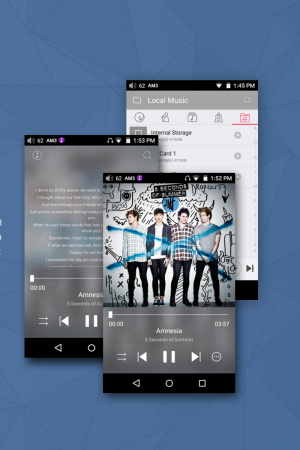

A Ul you'll fall in love with at first sight

Rejoice, UI lovers! The FiiO UI design team has specially created a new UI forthe new X7, specifically optimized to be both stylish and functional in helping to get to your music quickly. The X7 Mark II also comes with three Android system-wide themes, which can be switched on the fly without having to restart the device. More themes created by FiiO will be available to download later on.

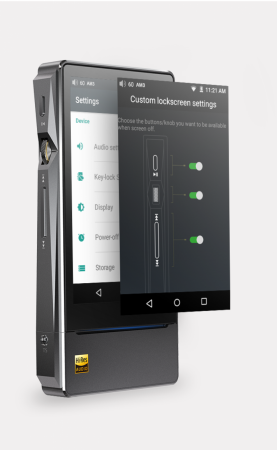

Simply intuitive device lock options

The X7 Mark II provides an intuitive interface that allows you to easily define which buttons and functions that are still active while the screen is off and locked, so you can effectively prevent accidentally unlocking your device.

More features for more control over your device

For the convenience of many customers, the Google Play framework, services, and related apps are pre-installed onto the X7 Mark II. But for those in areas where these services are not available, these apps and services can be removed to both free up space and to have less processes running in the background during normal usage.

A dock turns the new X7 into a desktop master

When at the office or at home, you can attach a special decorative accessory that will allow the X7 to be docked to the K5 - giving the X7 the flexibility to be a part of a desktop audio system that truly lets you enjoy your music.

Custom-made accessories that don't sacrifice function or form

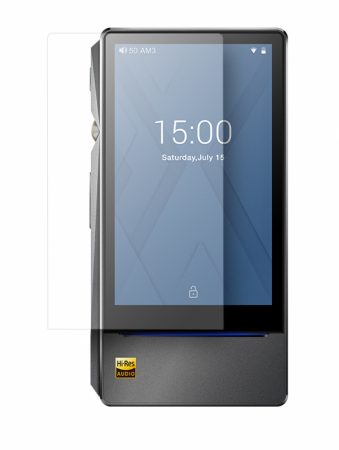

Pre-applied onto every X7 Mark II is a 7H tempered glass screen protector with a 90%+ light transmittance rate. This particular screen protector is hard enough to be resistant against most scratches without compromising on how easily see-through it is.

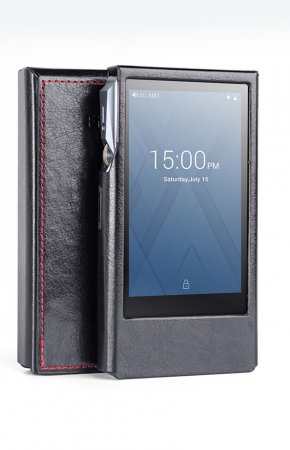

Also included with every X7 Mark II is a leatherette case with a specially-chosen mix of materials. On the outside is leather with smooth outer grains that feel luxurious to the touch and great to handle, while on the inside there is synthetic leather material that helps to protect your investment in this unit.

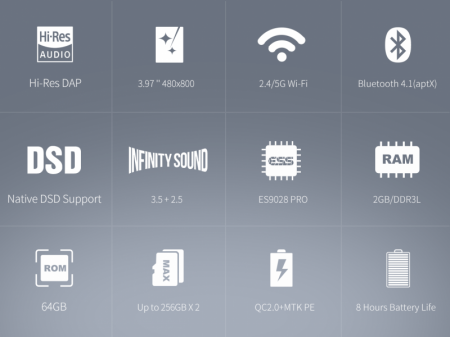

Specifications:

• Color: titanium

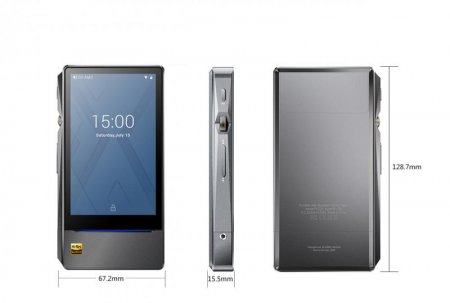

• Dimensions / Weight: about l28.7mm(H)x67.2mm(W)x15.5mm(D) /2l2g
• Display: 3.97" IPS TFT touchscreen, 480x800 pixels
• Material: CNC aluminium alloy
• Buttons: left (Play/Pause, Pre and Next), Volume knob (Vol+ and Vol-), Top (Power)
• DAC: flagship-class DAC ES9028 PRO
• SOC: powerful quad-core Cortex A9 SoC Rockship RK3188
• RAM: 268
• Storage: 6468 internal storage
• Battery: internal 3.8V 3800 mAh Li-polymer battery
• Storage expansion: dual micro SD card slots supporting up to 512GB (25668 x 2)

Main Features:

• Play order: supports playing by folders, all songs, albums, artists, genres, favorite songs and custom playlists, artists->albums/genres->albums
• Play modes: sequential, shuffle, loop single, loop all
• Library management: supports deleting songs on the X7 Mark II; customizing list of favorite songs and playlists; batch addition and deletion from various lists; deletion of folders; Bluetooth connection; and Playlists backup
• 3 themes: FiiO Music->Settings->Theme (add more themes by future firmware)
• Lockscreen album art/lyrics: supported
• Play through folders: supported
• Customize album art image: supported
• Resume playback: App may resume playback from last song when X5 is turned back on
• Visualizations: supports display of internal /external /folder-based album art,|D3 tag info and VU meters
• Gesture operations: on now playing screen, swipe from left edge of screen for Now-playing playlist, slide up / down on the right for volume adjustment
• EQ adjustment: professional lO-band equalizer with 9 built-in genre EQs, App built-in ViPER Effect
• Ul settings: main menu can be customized (among playlists, local music, DLNA, recently played, most played and recently added)
• Cloud music: DLNA
• ViPER Effect: supported
• D3 tag info: supported
• Gapless playback: supported
• USB DAC: Supports 192 kHz/24bit via driver installation
• System mode: instant switch between Android mode & Pure Music mode
• Filter modes: Fast Roll Off Linear Phase, Slow Roll Off Linear Phase, Apodizing Fast Roll Off, Fast Roll Off Minimum Phase, Slow Roll Off Minimum Phase, Hybid
• Fast Roll Off, Brickwall
• Sound balance: LlO~RlO(O.5d B/step)
• Gain: high and low gain settings available
• Headphone detection: pauses automatically when headphones removed
• Balanced output: 2.5mm TRRS headphone port
• WiFi support: supports online music apps via WiFi
• Bluetooth: supports Bluetooth 4.1, ath, low latency, good sound quality and fault tolerance
• Headphone in-line remotes: supported (volume adjustment of Apple earpods not supported)
• Chips used: SOC: RK3188; DAC: E89028 PRO; LPF: OPA1612 X2; OP: Customized chips OPA926x2
• Coaxial output mode: DOP/DZP (only support DSD64 for DOP)

• Output ports: 3.5mm headphone port, 2.5mm TRRS balanced headphone port, 3.5mm Line out/Coaxial/Optical output port, Micro USB port

Battery and power

• Battery: Internal 3800mAh 3.8V high-voltage quick charge battery
• Play time: about 8 hours (experimental data, mightvary from using habits)
• Charging: charging time < 100 mins (using 12V/l.5A charger)
