Details

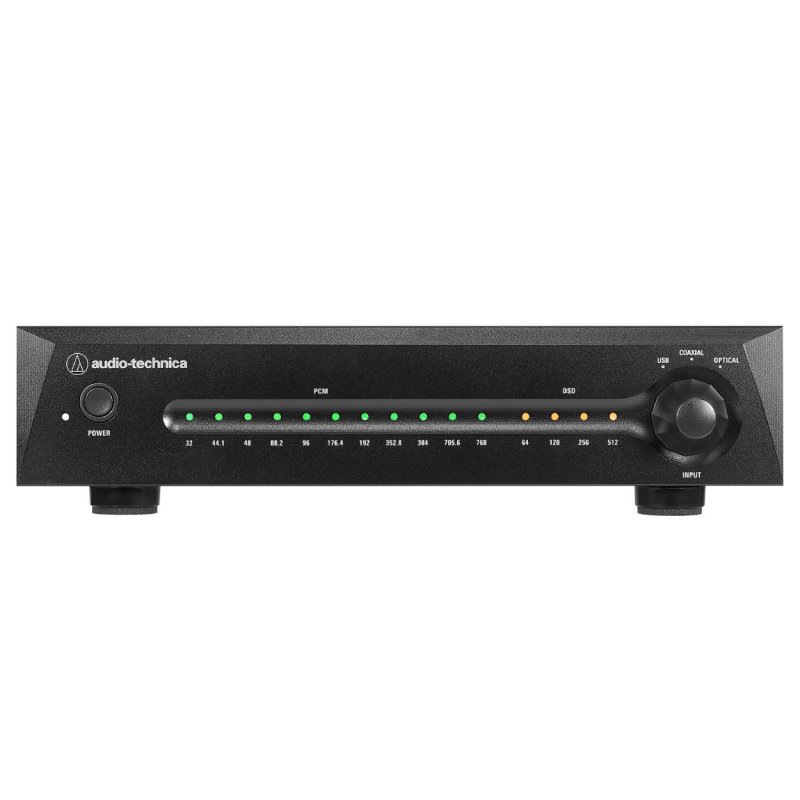

The Audio-Technica AT-DAC100 is an advanced digital-to-analog converter engineered to deliver exceptional audio fidelity from high-resolution digital sources. Perfectly suited for use with high-end headphones like the ATH-ADX5000, ATH-MSR7b, and ATH-AW Series, this compact desktop unit supports a variety of high-definition audio formats, including 768 kHz, 32-bit (linear PCM), and 22.4 MHz (DSD), ensuring every detail of your recordings is heard with pristine clarity.

The AT-DAC100 features a sophisticated two-channel AKM AK4452VN converter that provides a high signal-to-noise ratio and minimal distortion. Its unique tuning suppresses high-frequency noise, making it an ideal match for the AT-BHA100 balanced headphone amplifier. The inclusion of an audio-grade LME49860 operational amplifier from Texas Instruments ensures low distortion and superior performance, while Nichicon chemical capacitors and WIMA film capacitors contribute to powerful bass and smooth, natural sound.

Features

High-Resolution Audio Support

Enjoy the full spectrum of high-resolution audio with support for:

• 768 kHz, 32-bit (linear PCM) and 22.4 MHz (DSD) audio formats
• AKM AK4452VN converter offering high signal-to-noise ratio and low distortion
• Specific tuning for vacuum tube preamplifiers to reduce high-frequency noise

Premium Components

The AT-DAC100 integrates high-quality components for superior performance:

• Analog Devices power supply for stable and accurate reproduction
• Texas Instruments LME49860 operational amplifier for low distortion and excellent attack performance
• Nichicon chemical capacitors for enhanced low-frequency response and powerful bass
• WIMA film capacitors for clear, natural sound with minimal distortion

Versatile Connectivity

Connect a variety of devices with multiple input options:

• USB-C and USB-B inputs
• Optical and coaxial digital inputs

Design and Accessories

The compact design of the AT-DAC100 allows for flexible placement, and the large-capacity external AC adapter minimizes noise. The unit can be positioned either vertically or horizontally to fit your setup.

• Includes AC adapter, power cable, feet (6), and stands (2)

Specifications

• System Requirements: Computer with a USB 2.0 port; Intel Core i3 2.2 GHz or equivalent AMD CPU; 2 GB RAM (32-bit OS) or 4 GB RAM (64-bit OS)
• Compatible OS: Windows 8.1, Windows 10, Mac OS X or later
• Frequency Response: 5 Hz – 90 kHz (0, -3 dB)
• Total Harmonic Distortion: <=0.005% (20 Hz - 20 kHz)
• Signal-to-Noise Ratio: 105 dB (A-weighted, 1 Vrms output)
• Separation Between Channels: 105 dB (20 Hz - 20 kHz)
• Input Terminals: USB-B (44.1 kHz – 768 kHz, 16 – 32 bit DSD64/128/256/512), USB-C (44.1 kHz – 768 kHz, 16 – 32 bit DSD64/128/256/512), Coaxial digital (32 kHz – 192 kHz, 16 – 24 bit), Optical digital (32 kHz – 192 kHz, 16 – 24 bit)
• Output Terminals: Analog output (pin jack) x 2
• Power Supply: 100 – 120V AC, 50/60 Hz, 15V DC/2.4 A (AC adapter provided)
• Power Consumption: Max. 3 W
• Dimensions: 44 mm (1.73") H × 210 mm (8.27") W × 135 mm (5.31") D (excluding protrusions)
• Weight: 1.0 kg (35.3 oz)
• Finish: Matte
• Accessories Included: AC adapter, power cable, feet (6), stands (2)
